Cellular Network Emulator for Functional Tests

A cost-effective cellular emulation solution designed to enhance customer experience and facilitate validation tests.

Alifecom NE
slide 1
slide 2
slide 3
slide 4
slide 5

LTE/5G NSA and SA Network Emulator

The system is used for a variety of purposes, including R&D regression testing, stability testing, and end-of-production line verification. It can be used to perform RF measurements, IP/MAC throughput tests, MIMO tests, inter- and intra-cell handover tests, and user experience tests. These tests can help ensure that the UE is functioning properly and meets the performance standards required for use in a cellular network.

Product Information

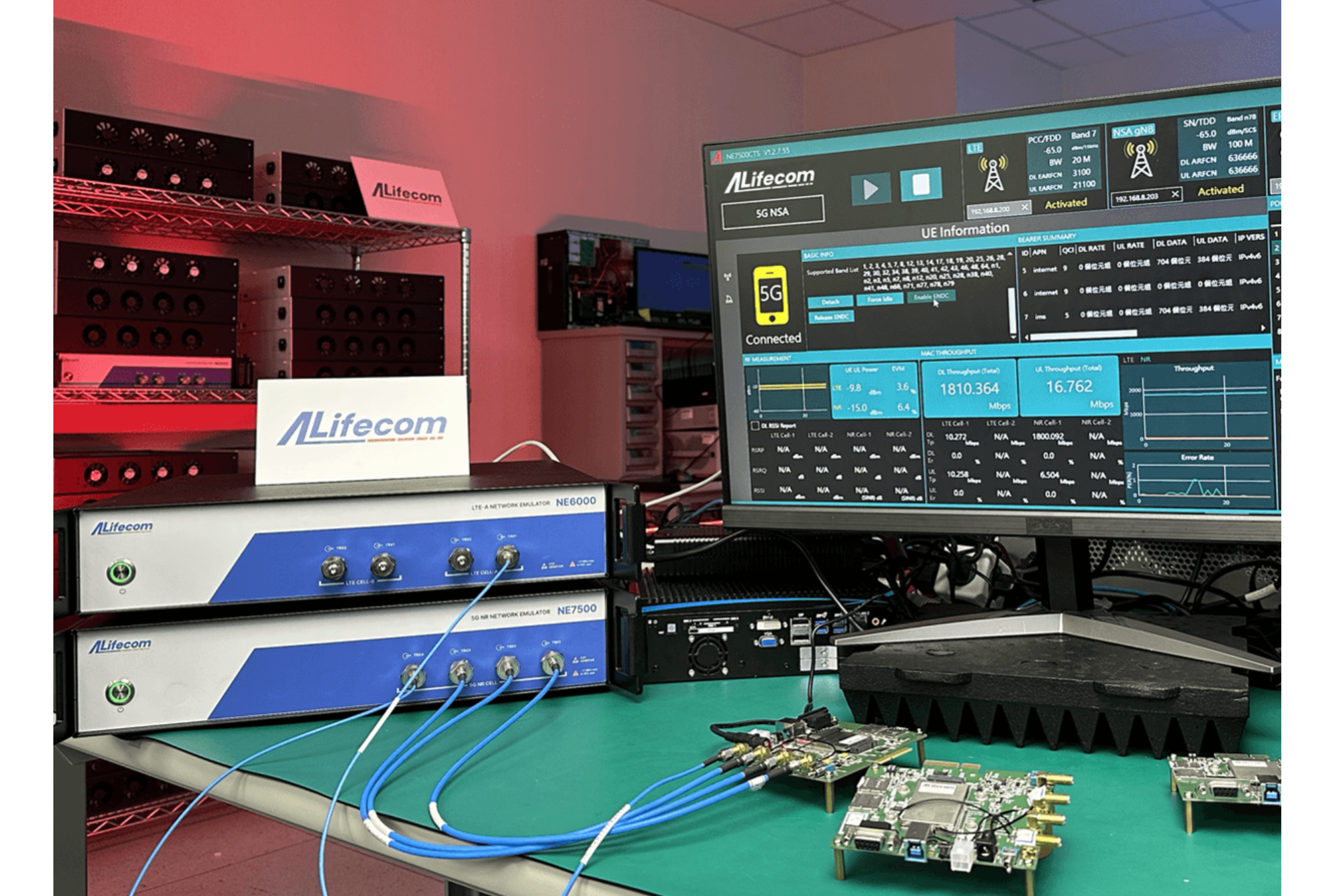

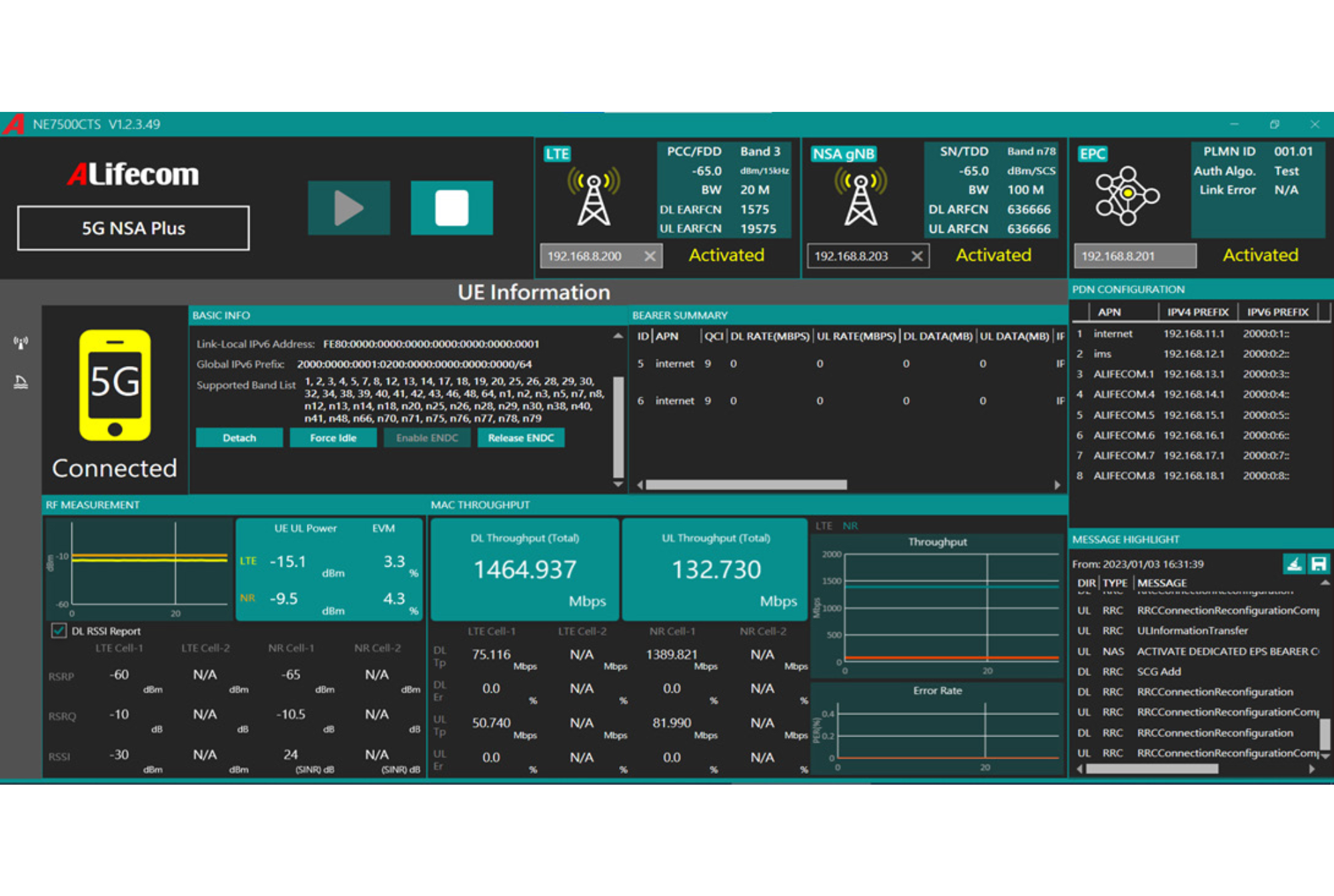

Alifecom Network Emulator system comprises two instruments, the NE7500 and NE6000, featuring a user-friendly graphical user interface and software tools.

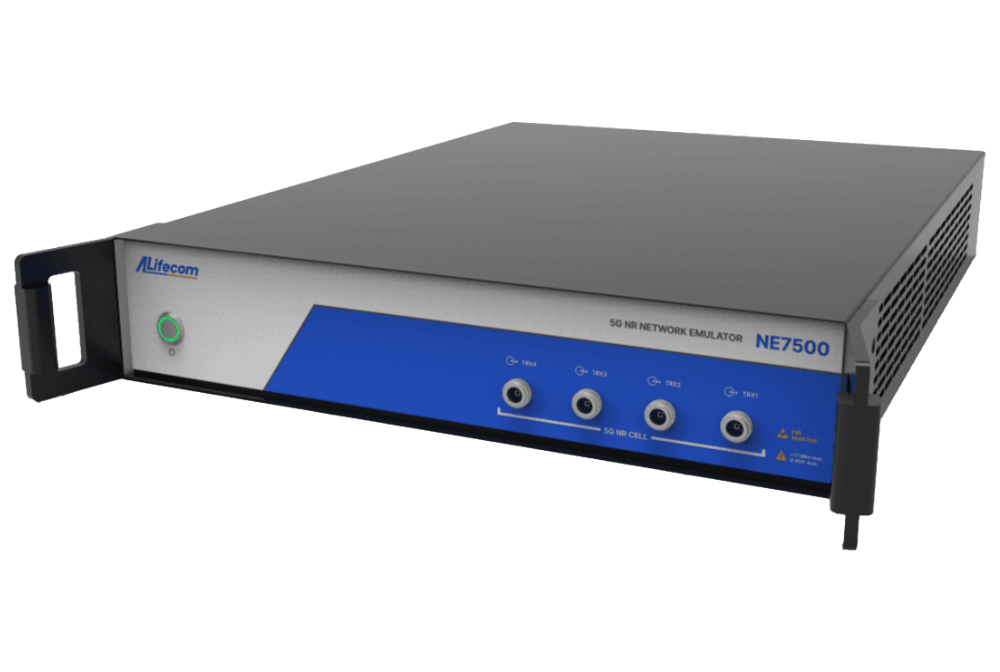

ALifecom NE7500 is a test system designed to simulate various aspects of a cellular network for the purpose of testing the performance and functionality of user equipment (UE), such as smartphones, tablets, and other wireless devices. It includes 3GPP compliant components such as a gNodeB and a 5G Core (5GC) .

ALifecom NE6000 is a test system used to test and diagnose issues in Long-Term Evolution ( LTE ) and LTE-Advanced ( LTE - A ) communication systems . It is designed to emulate a complete LTE-A network system , including an evolved Node B ( eNB ) and a true Evolved Packet Core ( EPC ).

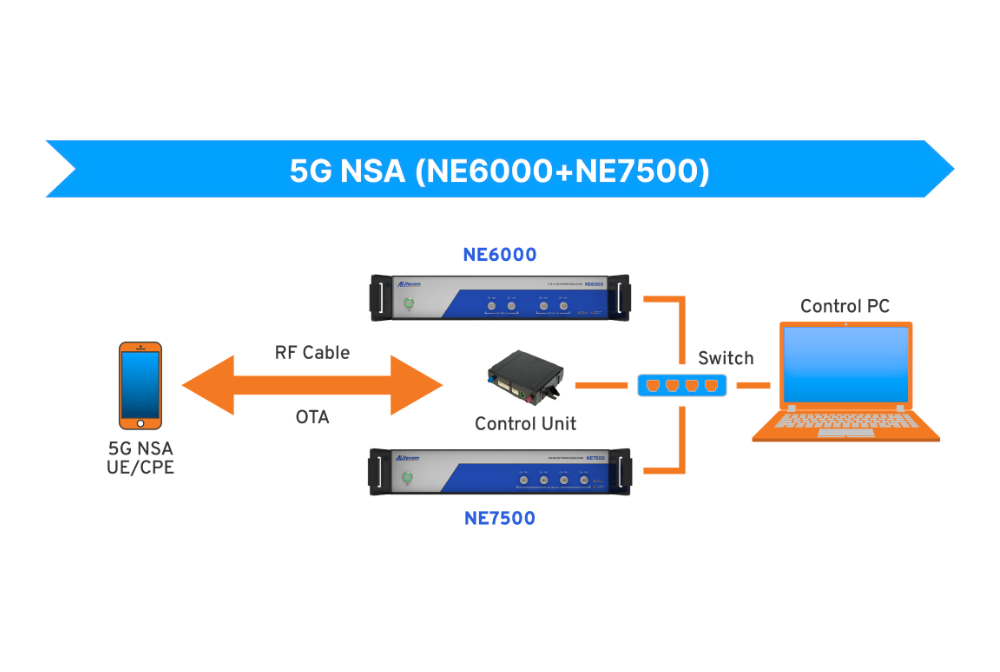

Alifecom Setup

4G LTE Mode Key Features

  • LTE/LTE-A, NB-IoT, eMTC, and IoT-NTN

  • Up to 4X4 MIMO

  • Up to 4CC carrier aggregation

  • Support up to LTE Cat 12 connection

  • Concurrent connections up to 4 UE’s for high throughput

  • All 3GPP LTE-A bands coverage

  • Compact form factor

5G NSA Mode Key Features

  • Compliant with 3GPP 5G NR Release 16

  • Primary Cell: 4G LTE-A (NE6000)

  • Secondary Cell: 5G NR (NE7500)

  • DL 2x2 MIMO for 4G LTE-A and DL 4x4 MIMO for 5G NR

  • Frequency Range
    FR1: 400MHz – 6GHz
    FR2: 24 – 30 GHz / 37 – 44 GHz

  • Up to 20 MHz Frequency BW for 4G
    LTE-A and 100 MHz Frequency BW for 5G NR

  • Far less daunting interface to face the complex test, all for serving THE BEST USER EXPERIENCE

5G SA Mode Key Features

  • Compliant with 3GPP 5G NR Release 16

  • 5G NR FDD/TDD Dual Mode (NE7500)

  • DL 4x4 MIMO

  • Frequency Range
    FR1: 400MHz – 6GHz
    FR2: 24 – 30 GHz / 37 – 44 GHz

  • Up to 100 MHz Frequency BW

  • Modulation Scheme Up to 256QAM in DL and 64QAM in UL

Explore all the ways you can use Alifecom cellular network emulators for your testing requirements.
