5G Network Emulator for RF and Protocol Tests
Enhance R&D advancements and optimize product performance and reliability
Advance 5G Test Platform

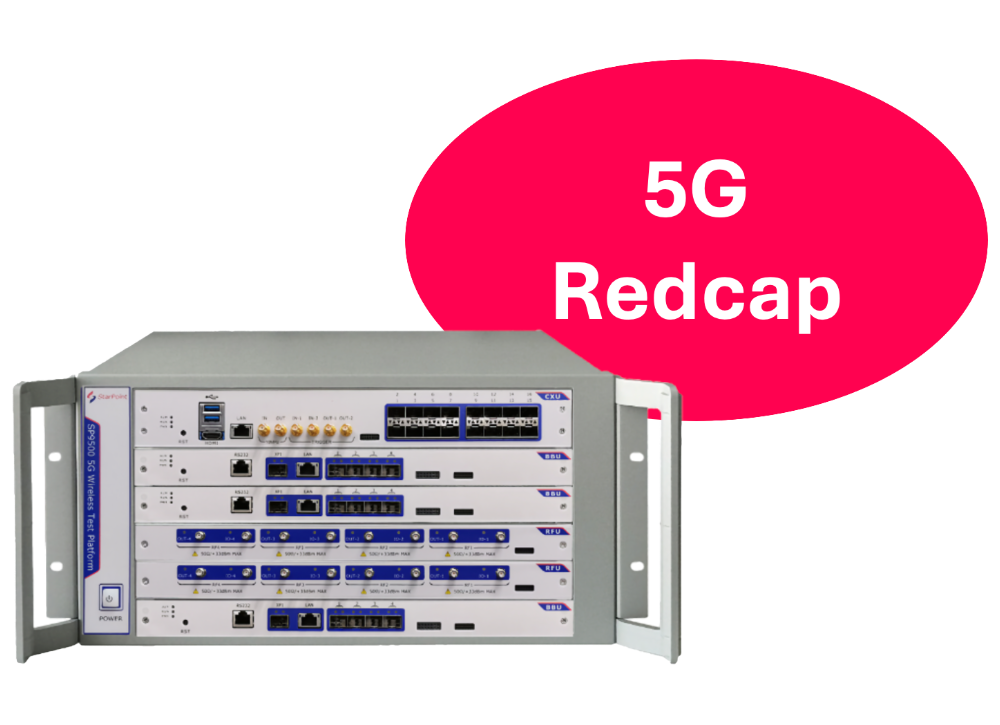

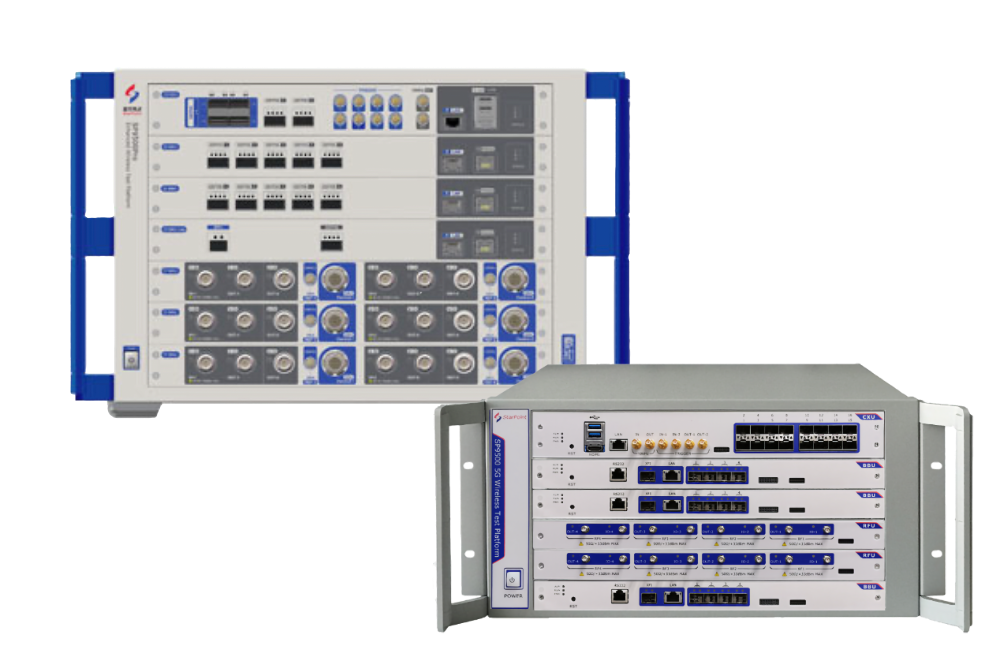

The SP9500-CTS is a versatile terminal research and development tool utilized in testing, certification, and post-maintenance. Equipped with robust baseband processing capabilities and an ultra-high-density radio frequency module design, the SP9500-CTS facilitates the creation of intricate network environments for the rapid, precise, and efficient verification of 5G terminal functions and performance.
Product Information
SP9500 Communication Test Set (CTS) is the world first testing platform that fully meets the requirements of 100MHz channel bandwidth (for Sub-6GHz band), carrier aggregation, SUL, downlink 8-stream / uplink 4-stream MIMO and other characteristics defined in 3GPP R15 version. It can be used as a full functional 5G base station emulation with all wireless test set such a functional, performance and RF characteristic platform. By cascading multiple test instrument, 9500-CTS can fulfill larger scale MIMO and carrier aggregation for future technology evolution.
The SP9500-CTS encompasses a comprehensive 5G protocol stack, enabling the simulation of end-to-end communication between 5G base stations and terminals. This functionality is instrumental in validating the corresponding signaling functions. Additionally, the SP9500-CTS offers comprehensive testing and measurement capabilities for terminal radio frequency characteristics defined by the 3GPP TS38.508-1, TS38.521-1, TS38.521-3, and TS38.521-4 protocols. These characteristics encompass transmission power, spectrum characteristics, modulation performance, receiving power, Demoulation performance, and more.
The SP9500-CTS fully aligns with the characteristic requirements of 100M channel bandwidth, carrier aggregation, downstream 8 stream/upstream 4 stream MIMO as defined in the 5G R15 and R16 versions. Furthermore, its multi-table cascade functionality supports larger-scale MIMO and carrier aggregation, ensuring its adaptability to future technological advancements.
The SP9500-CTS serves as a core test instrument and vector signal source, enabling the construction of a terminal radio frequency consistency test system. It also functions as a system simulator, facilitating the development of protocol consistency and wireless resource management consistency test systems. This versatility ensures its comprehensive support for 5G modem chipset providers, 5G module manufacturers, antenna manufacturers, and network equipment systems.
SP9500-CTS Test Applications

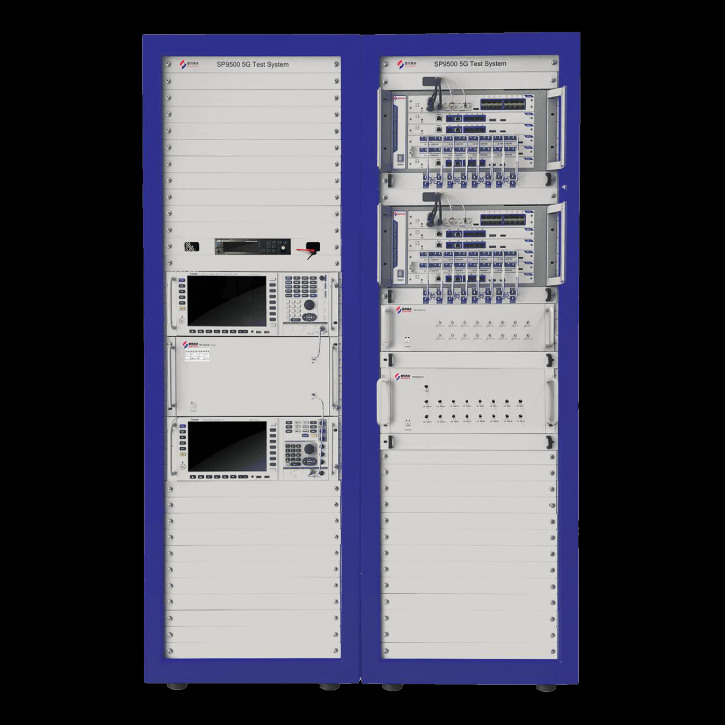

Conformance Test

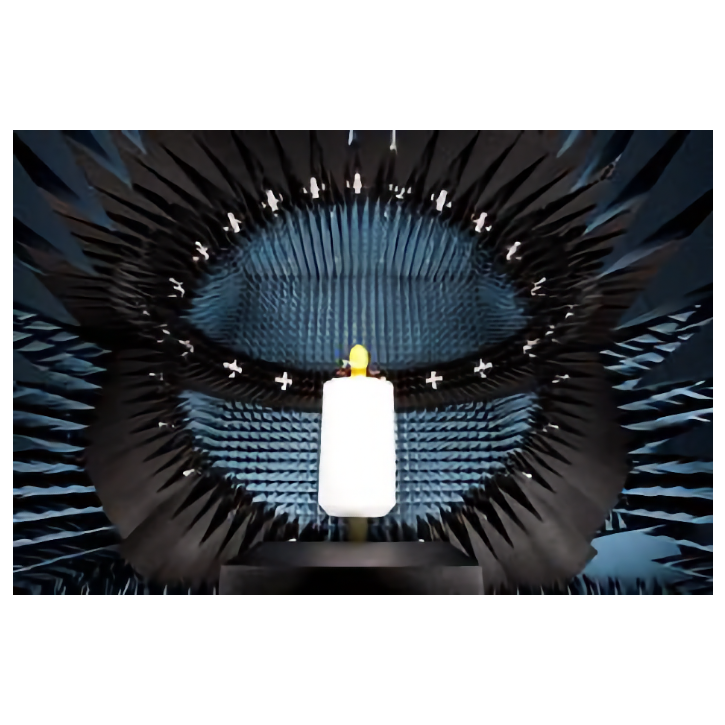

OTA Test

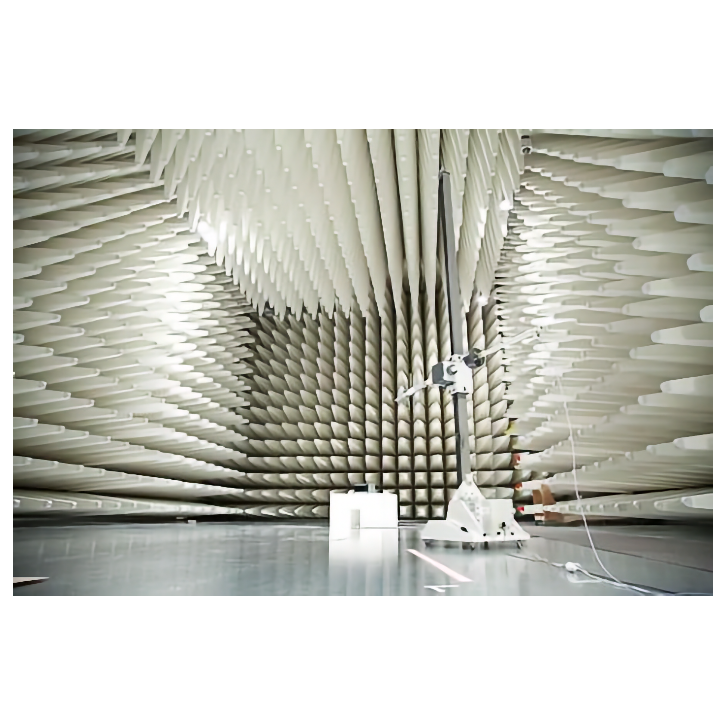

EMC

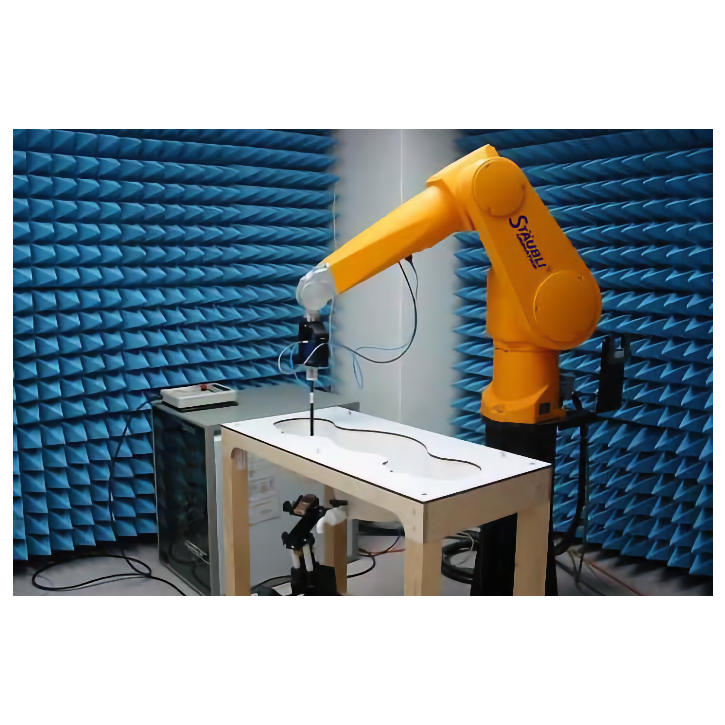

SAR

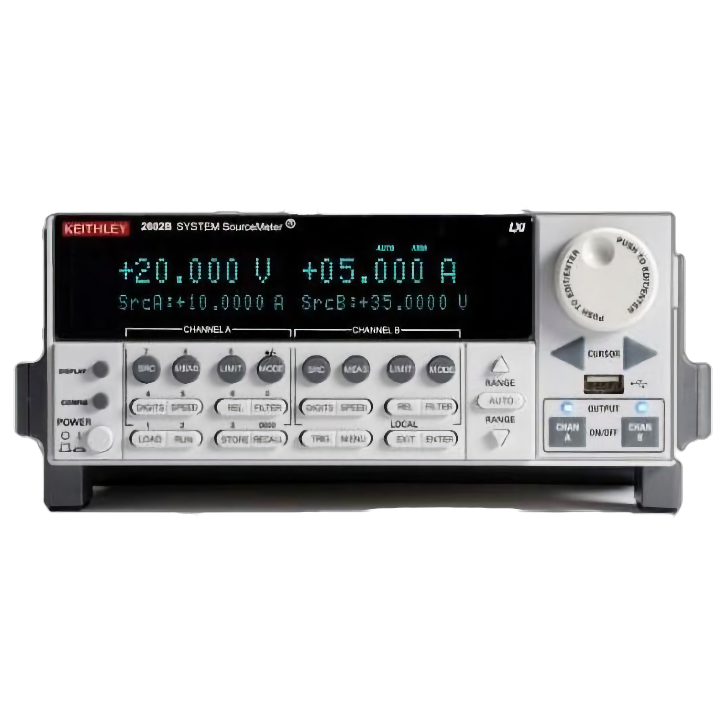

Power Performance

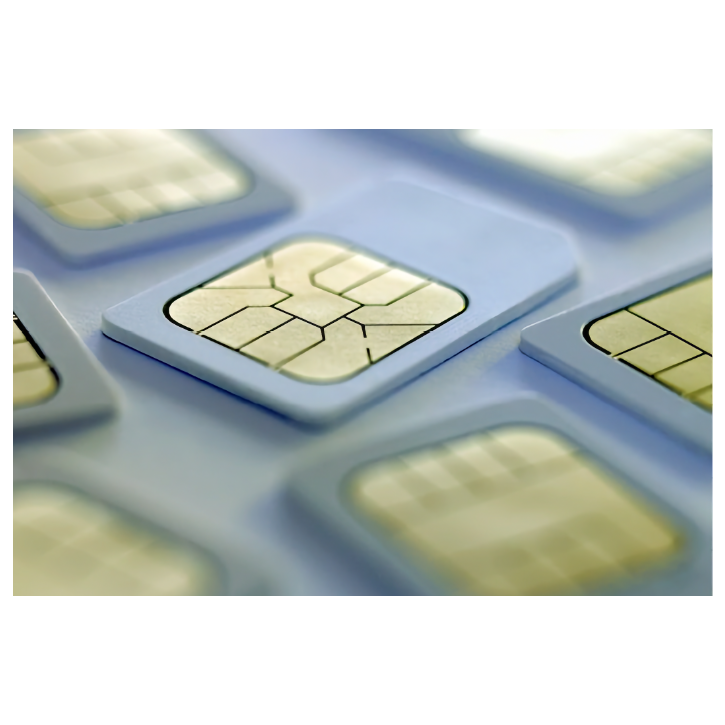

SIM Conformance
SP9500-CTS Overview
-

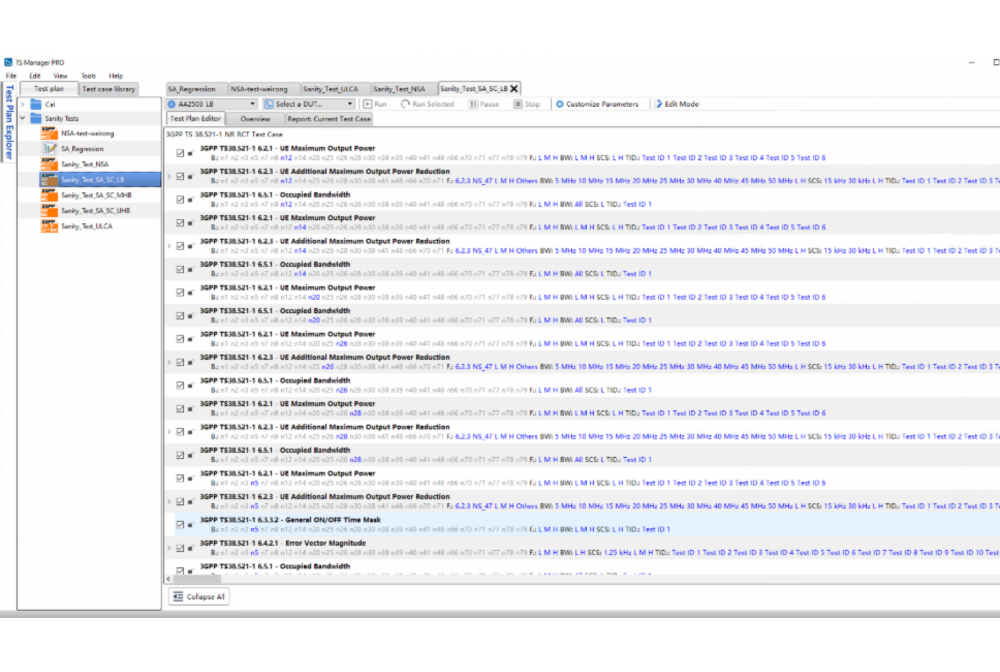

Fully support 5G terminal RF characteristics test functions defined by 3GPP standards with both automated and manual modes
-
Support SA/NSA network schemes by SINGLE BOX
-
Support build-in AWGN, CW/Vector interference, channel fading defined by 3GPP standards
-
Support MIMO & CA flexible configuration, maximum processing capability 8Tx/4Rx @100MHz
-
Support THROUGHPUT TEST for physical layer and application layer
-
Support all major international 5G chip, STRONG UE COMPATIABILITY
-

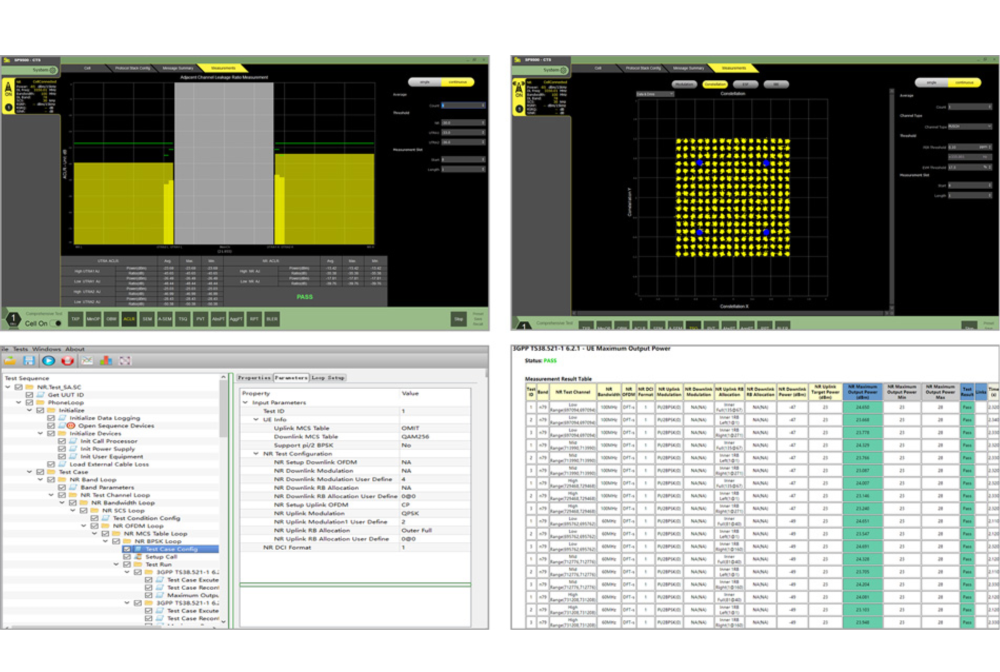

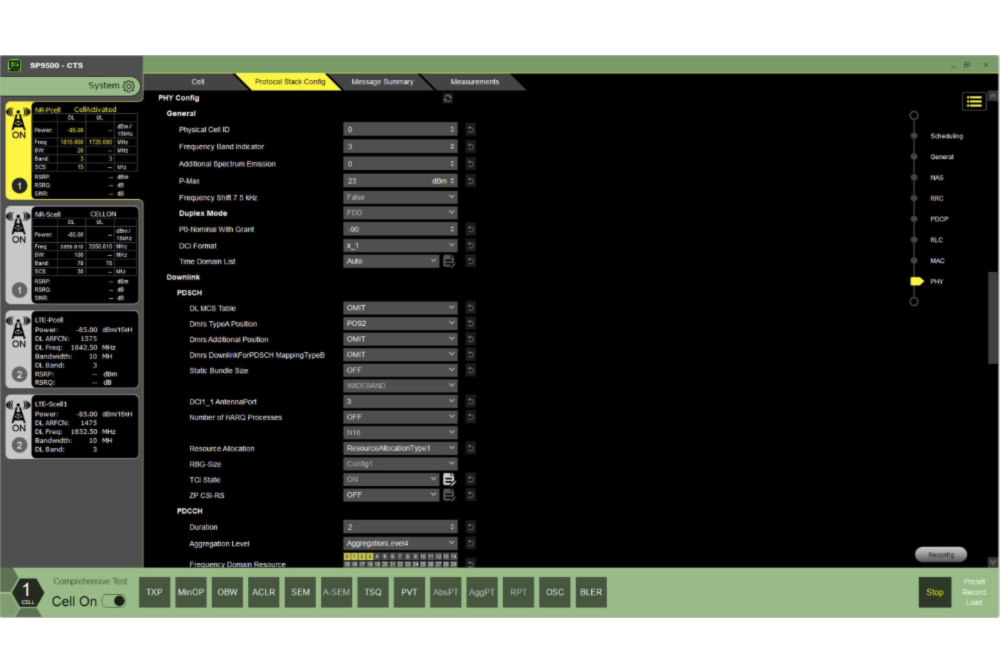

Far less daunting interface to face the complex test, all for serving THE BEST USER EXPERIENCE
