5G Device Conformance Test System
A comprehensive test system that covers the entire lifecycle of a 5G terminal.
StarPoint 5G Device Conformance Test System
StarPoint’s SP9500 5G Integrated Test System is the world's leading terminal conformance test solution. SP9500 supports the 5G User Equipment (UE) RF, RRM, and Protocol conformance test requirements specified in 3GPP TS38.521-1, 38.521-2, 38.521-3, 38.533, and TS38.523-1, Tests include the physical layer and protocol stack functions and procedures, UE RF transmitter and receiver characterization, demodulation performance, cell selection/ handover/ re-establishment requirements, measurement procedure, performance requirements, and functional tests of SA and NSA protocol stack layer, etc.
Key Features
-
Complete 3GPP test coverage for RF, Protocol, and RRM tests
-
Comprehensive conformance test case coverage
-
Fully automated test platform with an easy-to-use user interface
-
Global leading R&D
-
Wide range of upstream enterprise applications
Product Information
SP9500 Integrated Test System is the world's first testing platform that fully meets the requirements of 100MHz channel bandwidth (for the sub-6GHz band), carrier aggregation, downlink 8-stream / uplink 4-stream MIMO, and other characteristics defined in 3GPP R15, R16 and R17 releases. Cascade multiple SP9500 5G Network Emulator Multi-instruments to support larger-scale MIMO and CA for future technological evolution. SP9500 Integrated Test System supports 3GPP defined tests, including RF conformance, Protocol Conformance and RRM Conformance. In addition, SP9500 Integrated Test System supports Network Access Tests and Type Approval tests defined by large operators worldwide.
Test Cases
RF Conformance Test
(SP9500-RCT)
5G User Equipment (UE) RF Conformance Test by 3GPP TS38.521-1(SA) and TS38.521-3(NSA) specifies the performance KPI for validation of UE’s RF characteristics. 3GPP conformance tests assure wireless network capacity, coverage range, intra-RAT and inter-RAT user coexistence performance, etc., can meet the performance requirements. SP9500-RCT supports all UE RF conformance tests defined by 3GPP, e.g., transmitter and receiver characteristics test, transmit power, dynamic output power, transmit signal quality, output RF spectrum emissions, reference sensitivity, maximum input level, adjacent channel selectivity, blocking and spurious response, intermodulation characteristics, and more.
Protocol Conformance Test
(SP9500-PCT)
5G UE Protocol Conformance test verifies the protocol stack layer as defined in 3GPP TS38.523-1. SP9500-PCT supports all the 3GPP NSA and SA protocol conformance tests, including Idle Mode Operations, MAC, RLC, PDCP, RRC, 5GC test, and IRAT (E-UTRA) tests, and more.
RRM Conformance Test
(SP9500-RRM)
5G UE RRM Conformance test verifies the radio resource management performance as defined by 3GPP TS 38.533. SP9500-RRM supports all the 3GPP NSA and SA RRM conformance tests, including the RRC_IDLE state mobility (applicable only for SA), RRC_CONNECTED state mobility, RRC connection mobility control, timing, and signaling characteristics, UE measurement procedures test and measurement performance requirements test, and more.

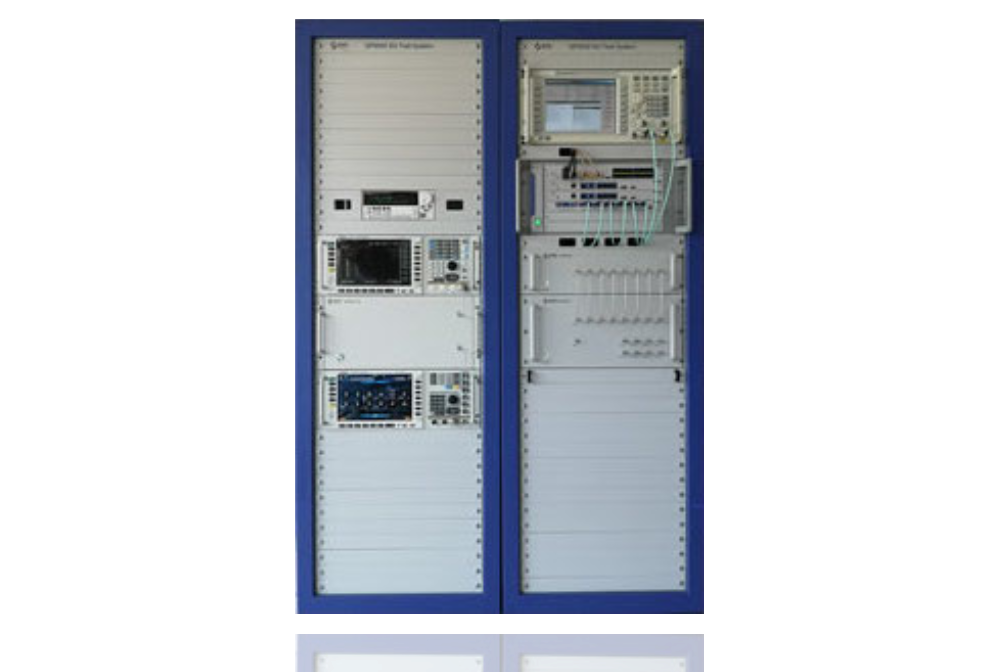

SP9500 Test System Hardware Configuration
Basic Configuration
Single SP9500 Test System
(for 3CC and below)
Dual SP9500 Test System
(for 4CC and above)
Hardware Configuration
-
SP9500-CTS (8-channel)
-
PC/Server
-
SIM Card Simulator
-
SP9500-CTS (8-channel)
-
Spectrum Analyzer
-
Signal Generator
-
RF Switching Box（CU/FE/Filter）
-
PC/Server
-
SIM Card Simulator
-
SP9500-CTS (8-channel) x 2
-
Spectrum Analyzer
-
Signal Generator
-
RF Switching Box（CU/FE/Filter）
-
PC/Server
-
SIM Card Simulator
Coverage
-
TRx In-band RCT
-
PCT and RRM(~80%)
-
4/5G USIM&USAT Conformance
-
Test with Card Simulator
-
Power Consumption Test for RF with GALV
Additional test coverage:
-
TRx out-of-band RCT, like Spurious, Intermodulation, Blocking(3CC and below)
-
RDT(RF design Test)
-
PCT、RRM(100%)
-
CE/FCC/MIC Global Regulatory Test
Additional test coverage:
-
TRx In-band RCT（4CC and above）
-
TRx out-of-band RCT, like Spurious, Intermodulation, Blocking（4CC and above）
