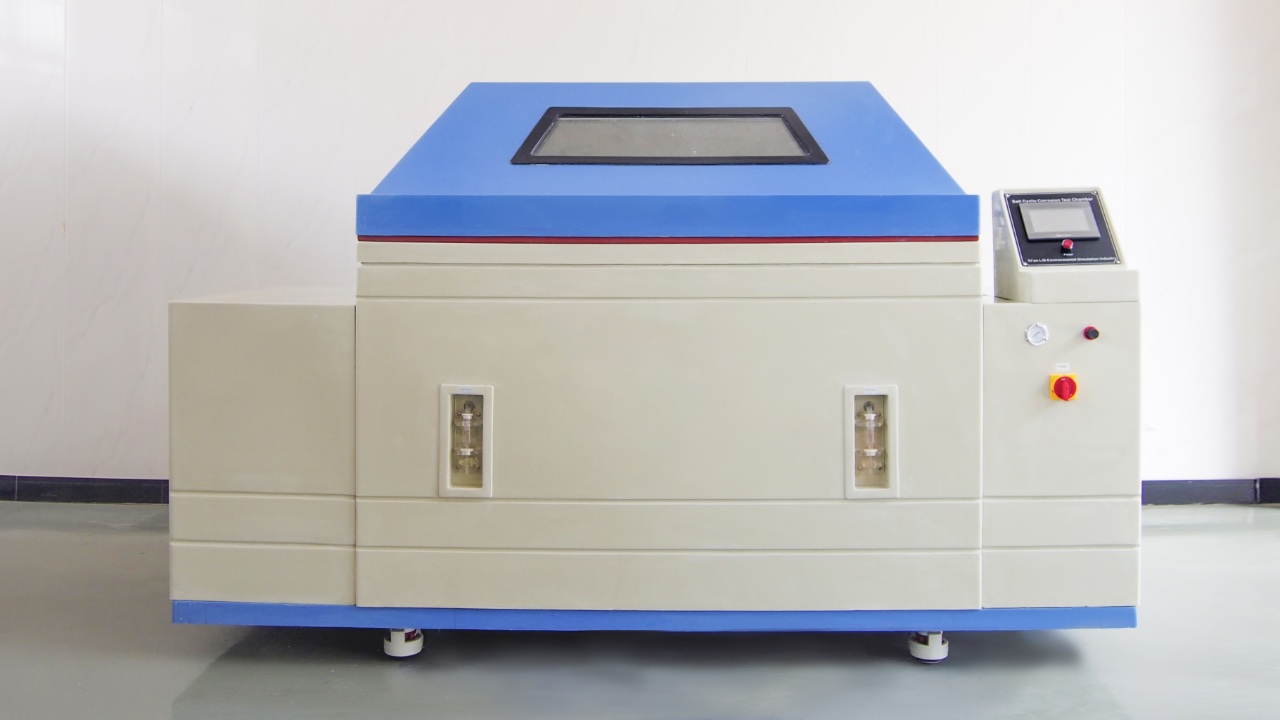

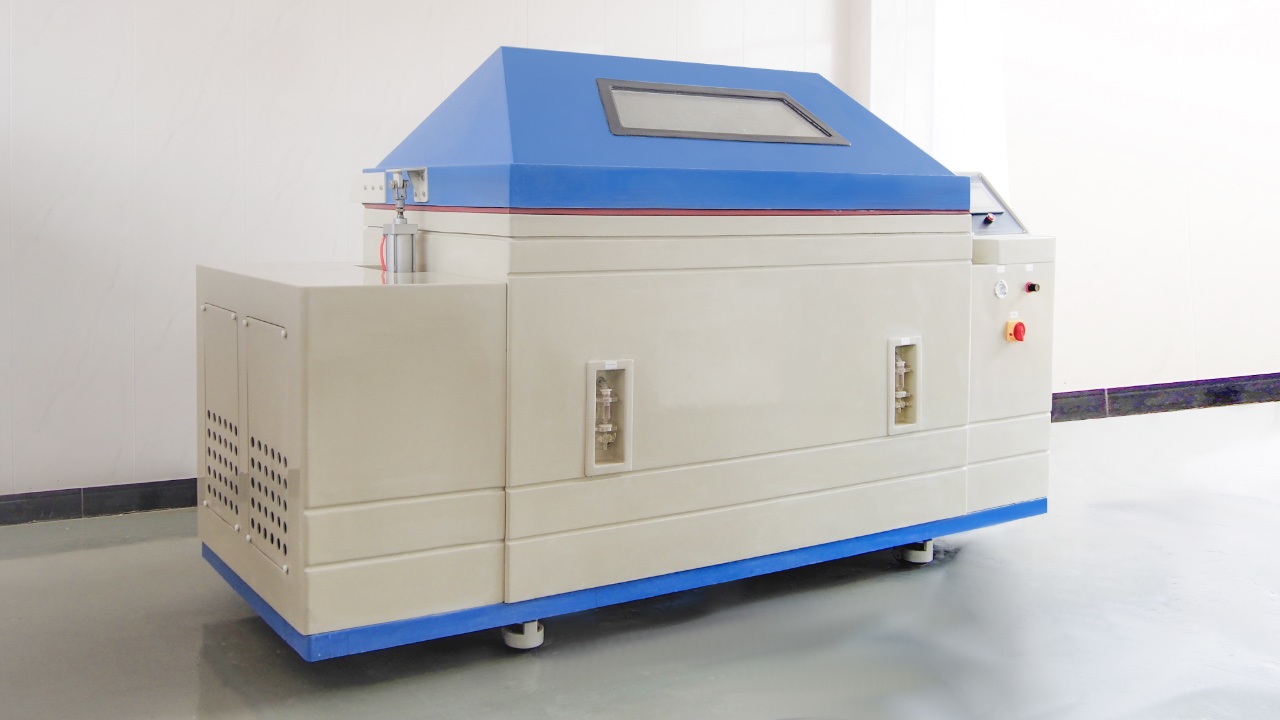

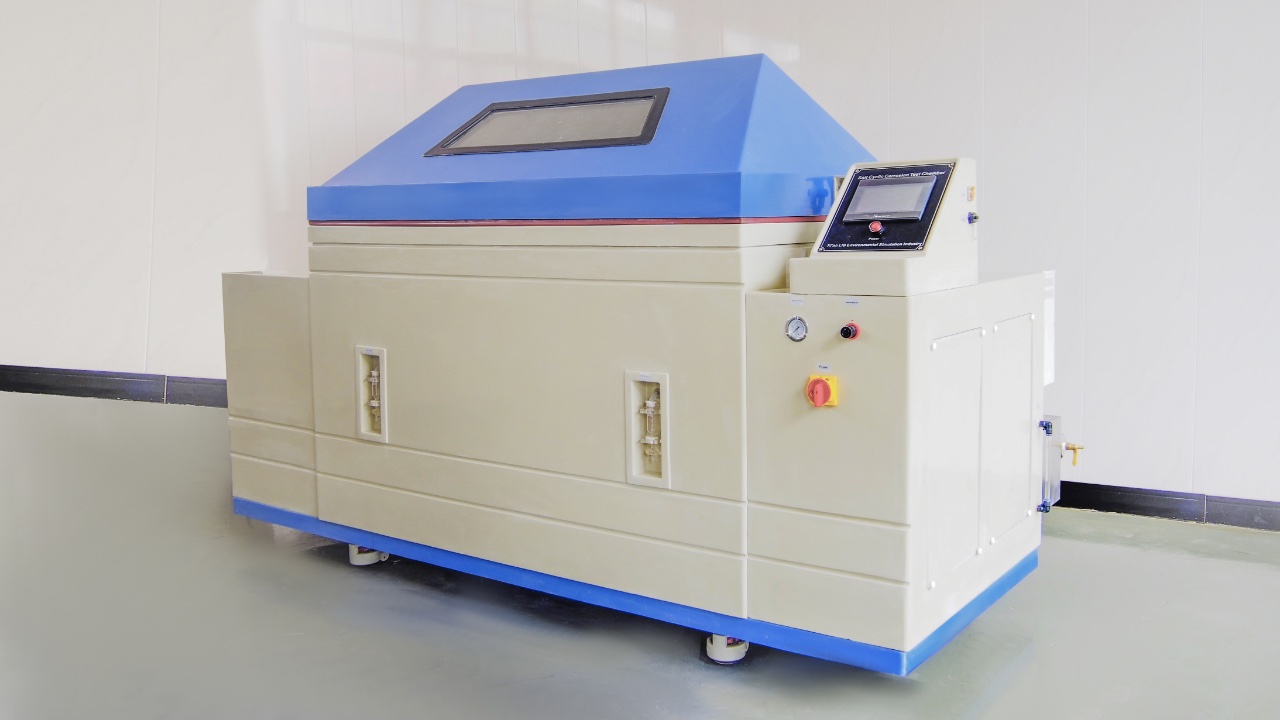

Cyclic Corrosion Test Chamber
Description
Cyclic salt spray chamber is different from basic salt spray test chamber.Cyclic corrosion test chamber exposes sample to a series of different environments in repetitive cycles that incorporate temperature , humidity, salt spray and dry. Accelerated corrosion test methods included ASTM B117, ASTM BG85, ISO9227, IEC60068-2-52, IRC61701-2, ISO7253 and many others.
SC series corrosion chambers are upgrade to programmable controller and Ethernet access. All models are automated, and can working continuously. various models can meet different test requirements.
Advantage
● Combined environmental condition
Cyclic corrosion chambers, combining salt spray with temperature, humidity environmental conditions.

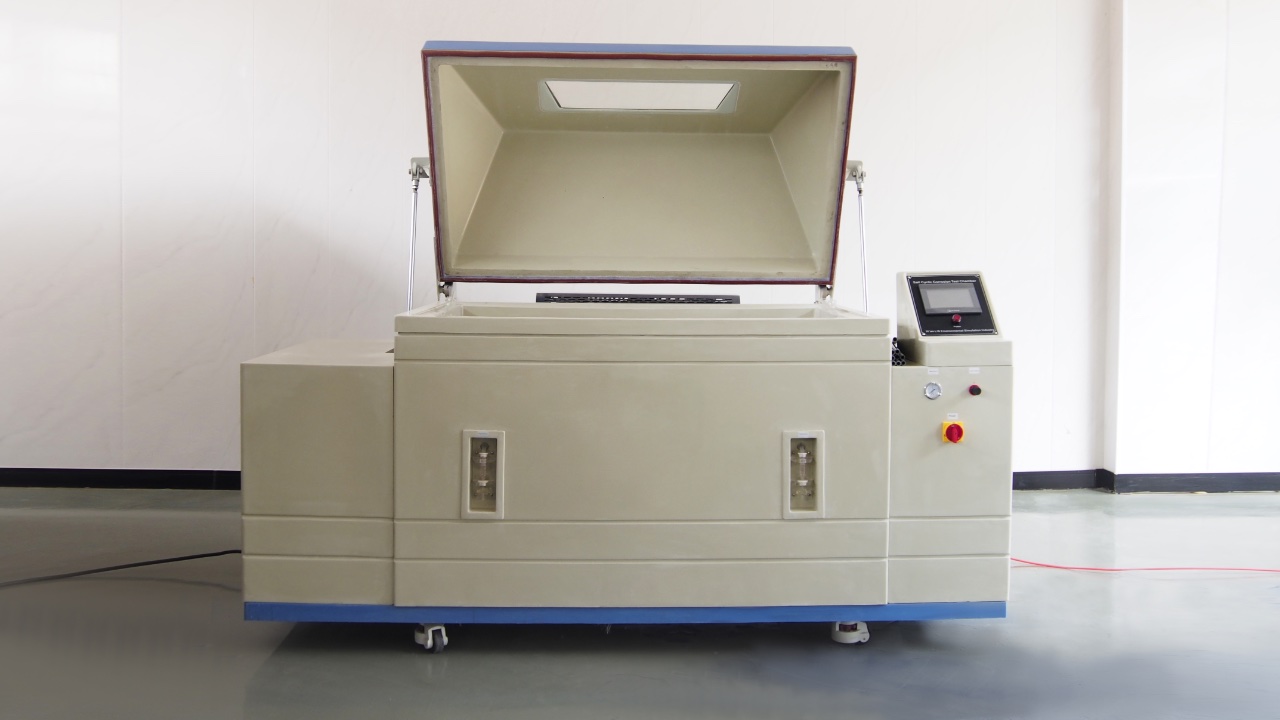

● Easy opening and closing cover
pneumatically operate cover
Specification
|
Model |
SC-010 |
SC-016 |
SC-020 |
|
Internal dimensions (mm) |
1300*1000*600 |
1600*900*720 |
2000*1000*800 |
|
Overall dimensions (mm) |
2000*1300*1600 |
2300*1300*1700 |
2700*1300*1900 |
|
Interior Volume (L) |
780 |
1280 |
1800 |
|
Temperature Range |
+10 ℃ ～ +90 ℃ |
||
|
Temperature Fluctuation |
± 0.5 ℃ |
||
|
Temperature Deviation |
± 2.0 ℃ |
||
|
Humidity Range |
30% ~ 98% RH |
||
|
Humidity Deviation |
+ 2%, - 3% |
||
|
Salt Fog Deposition |
1～2ml / 80cm2 · h |
||
|
Cooling system |
Mechanical compression refrigeration
system |
||
|
Refrigerating unit |
French TECUMSEH compressor |
||
|
Heating Element |
Nichrome heater |
||
|
Humidifier |
External isolation, stainless steel surface evaporation
humidifier |
||
|
Water supply system |
Water purification system |
||
|
Air Preheating |
Saturated air barrel (31Liter) |
||
|
Spraying System |
Atomizer tower and Spray nozzles |
||
|
Salt Fog Collected |
Fog collector and fog measure cylinder |
||
|
Controller |
Programmable color LCD touch screen
controller, Ethernet connection, PC Link, USB |
||
|
Temperature Sensor |
PT100Ω / MV A-class |
||
|
Humidity Sensor |
Dry and wet bulb sensor |
||
|
Air Circulation |
Centrifugal wind fan |
||
|
Safety Device |
Humidifier Dry-combustion Protection;
Over-temperature Protection; Over-current Protection;
Water Shortage Protection; Earth
leakage Protection |
||
|
Material |
Glass fiber reinforced plastics |
||
|
8 round bars |
|||
|
Power Supply |
380V 50Hz |
||
|
Maximum Noise |
65 dBA |
||
|
Standard |
IEC60068-2-52, IEC61701-2，ASTM G85，ISO 7253, ASTM B117, ISO9227 |
||
