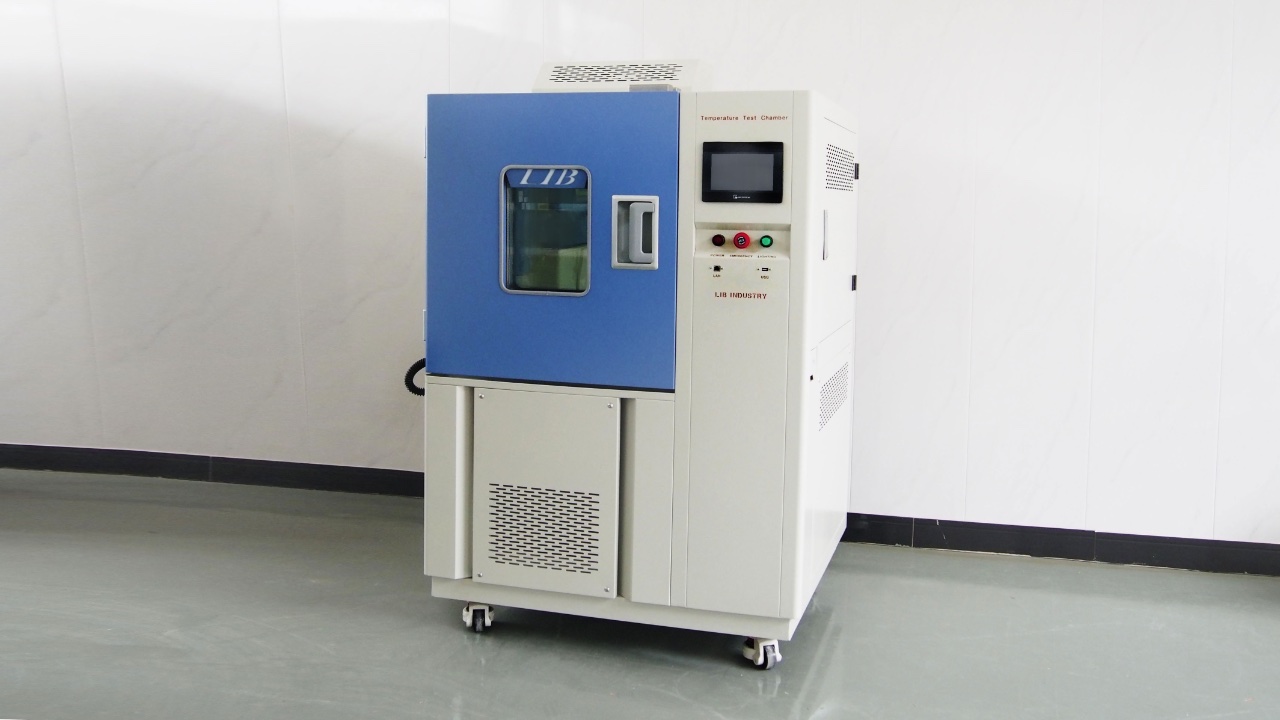

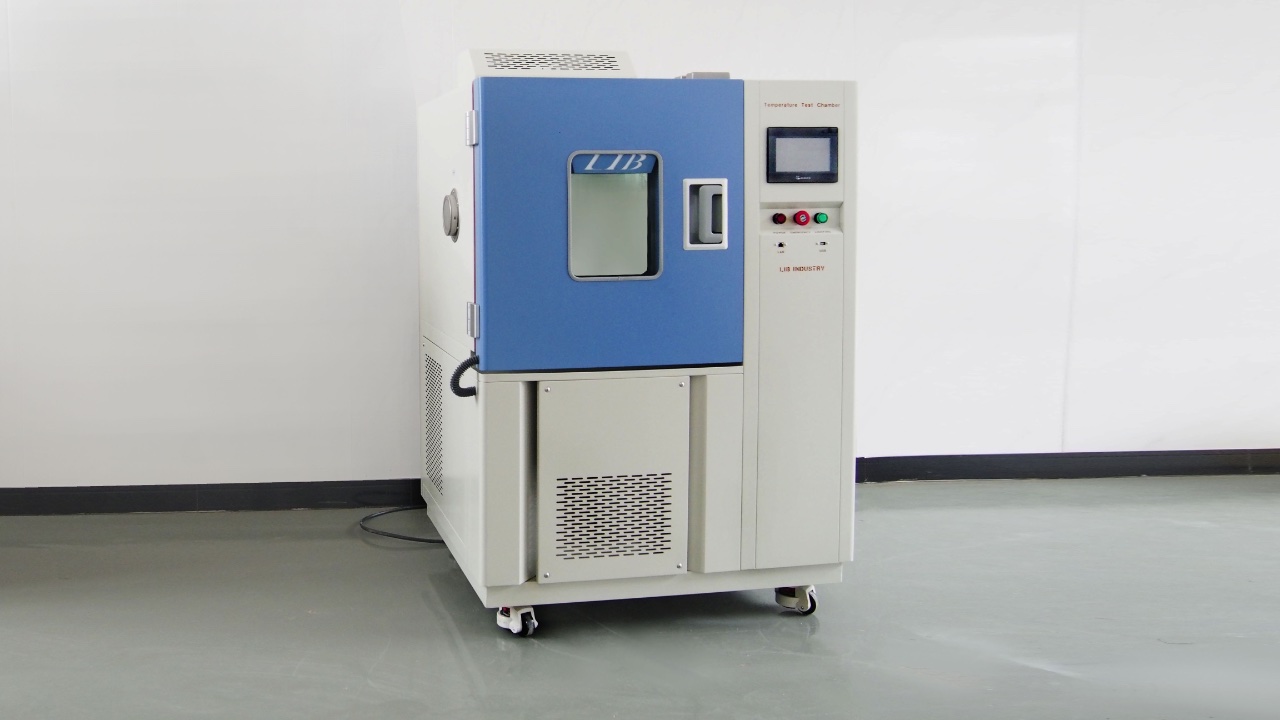

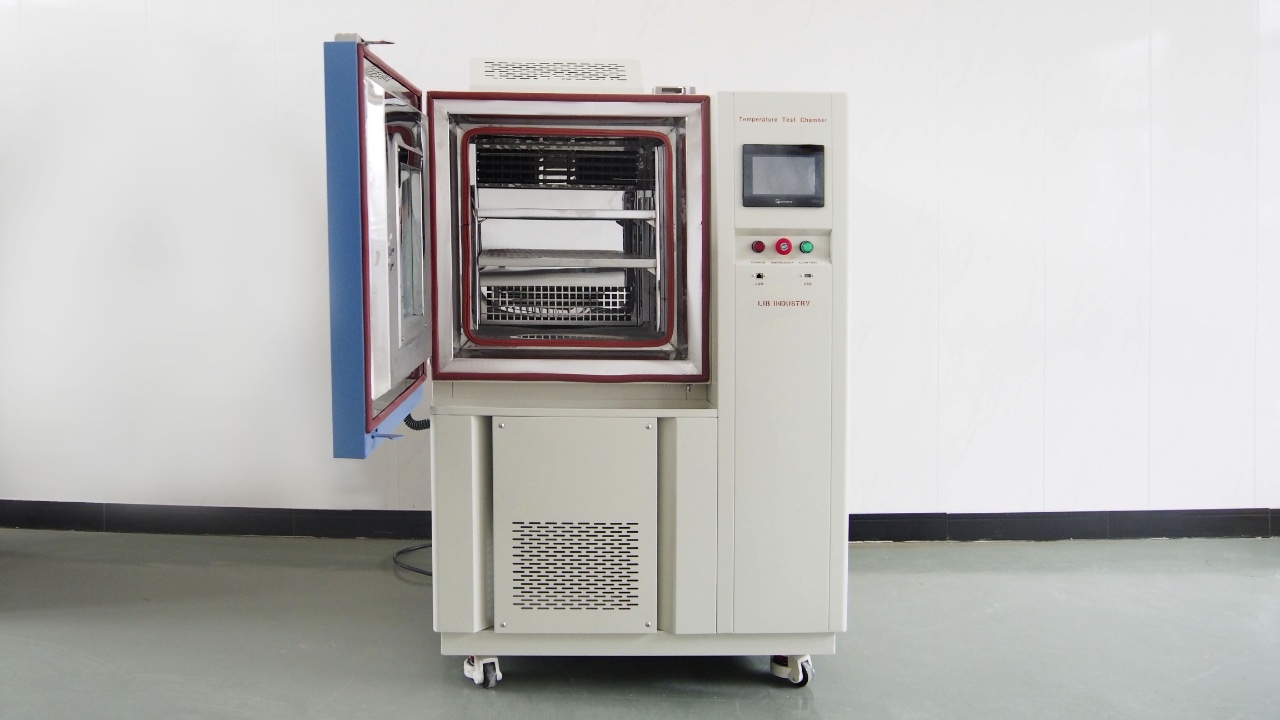

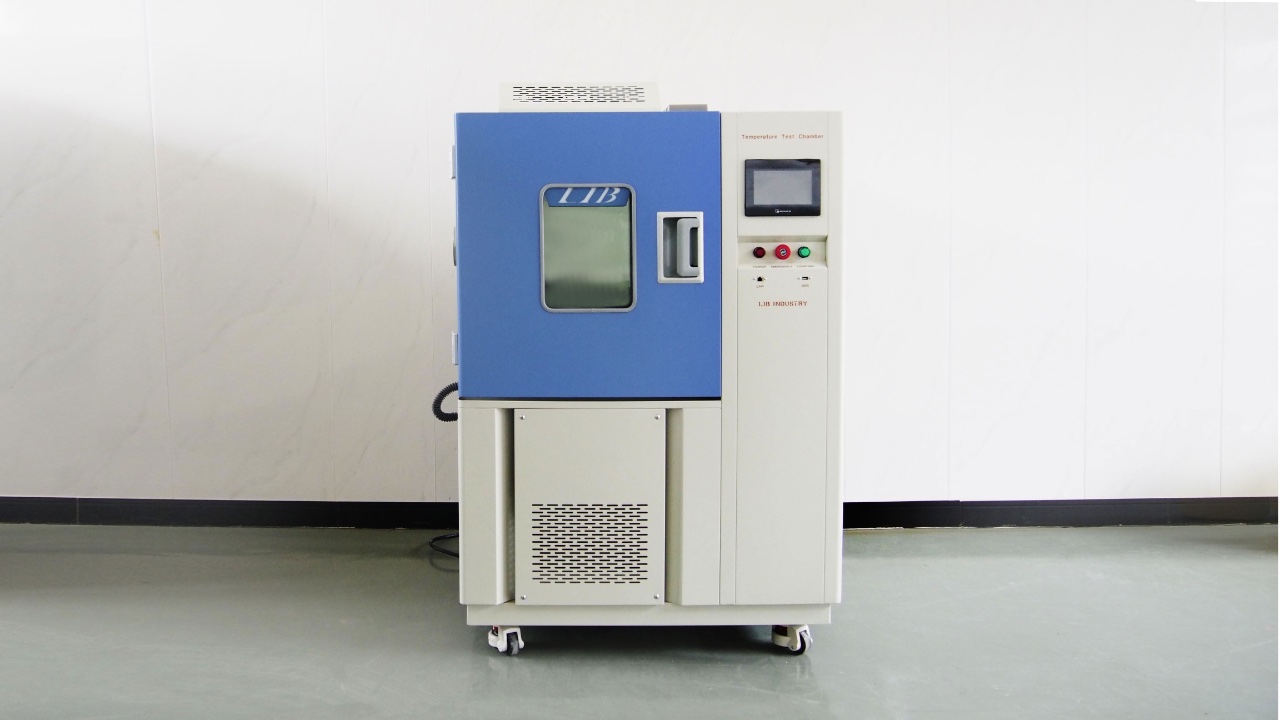

Fast Change Rate Thermal Cycle Chamber
Description
The rapid rate thermal cycle chamber is designed for testing specimens under the rapid temperature change. LIB TK models meet the ESS (Environment Stress Screen) test. The temperature ramp rate is controllable at 5℃ / 10℃ / 15℃ per minute.
Advantage
● Energy saving
When the temperature needs to be stabilized again, the advanced PID control can effectively control the output value of the constant phase and the recovery phase.
● Multi-language controller display
Multiple languages can be selected, English, Chinese, Russian, Korean, German, French, Polish, Spanish, Turkish, Romanian
Specification
|
Model |
TS-162 |
TS-340 |
TS-500 |
TS-1000 |
|
|
Internal Dimensions (mm) |
300*300*250 |
450*450*360 |
650*650*500 |
850*850*700 |
|
|
Overall Dimension (mm) |
1560*870*1545 |
1710*1020*1845 |
1910*1220*2265 |
2110*1420*2665 |
|
|
Interior Volume (mm) |
22L |
72L |
211L |
505L |
|
|
Loading Capacity |
20kg |
30kg |
50kg |
60kg |
|
|
Pre-heat Room |
Upper limit Temperature |
+220℃ |
|||
|
Heating Time |
Ambient ~ + 200℃, within 30 minutes |
||||
|
Pre-cool Room |
Lower limit Temperature |
-75℃ |
|||
|
Cooling time |
Ambient ~ -70℃, within 30 minutes |
||||
|
Test Room |
High Temperature Exposure Range |
Ambient +20 ~ +200°C |
|||
|
Low temperature Exposure Range |
–65 ~ -5°C |
||||
|
Temperature Fluctuation |
≤±0.5℃ |
||||
|
Temperature Deviation |
≤±3 ℃ |
||||
|
Temperature Recovery Time |
Within 5 minutes |
||||
|
Cooling System |
Mechanical compression refrigeration
system |
||||
|
Refrigerating Unit |
French TECUMSEH compressor |
||||
|
Heating Element |
Nichrome heater |
||||
|
Controller |
Programmable color LCD touch screen
controller Ethernet connection, PC Link |
||||
|
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV
A-class |
||||
|
Air Circulation |
Centrifugal wind fan |
||||
|
Safety Device |
Over-temperature protection, Over-current
protection; Refrigerant high-pressure protection; Earth leakage protection |
||||
|
Exterior Material |
Steel Plate with protective coating |
||||
|
Interior Material |
|||||
|
Thermal Insulation |
Polyurethane foam and insulation
cotton |
||||
|
Observation Window |
Interior lighting, double-layer thermo stability silicone rubber
sealing |
||||
|
Power Supply |
380V 50Hz |
||||
|
Maximum Noise |
65 dBA |
||||
