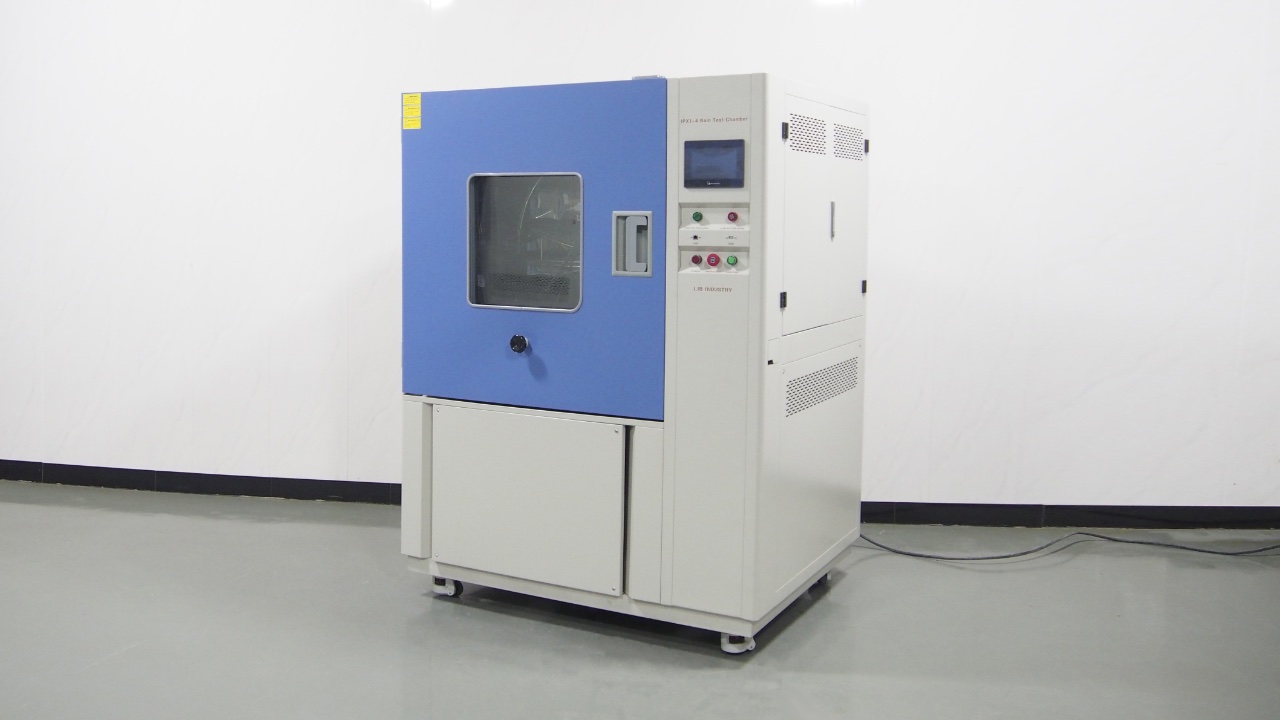

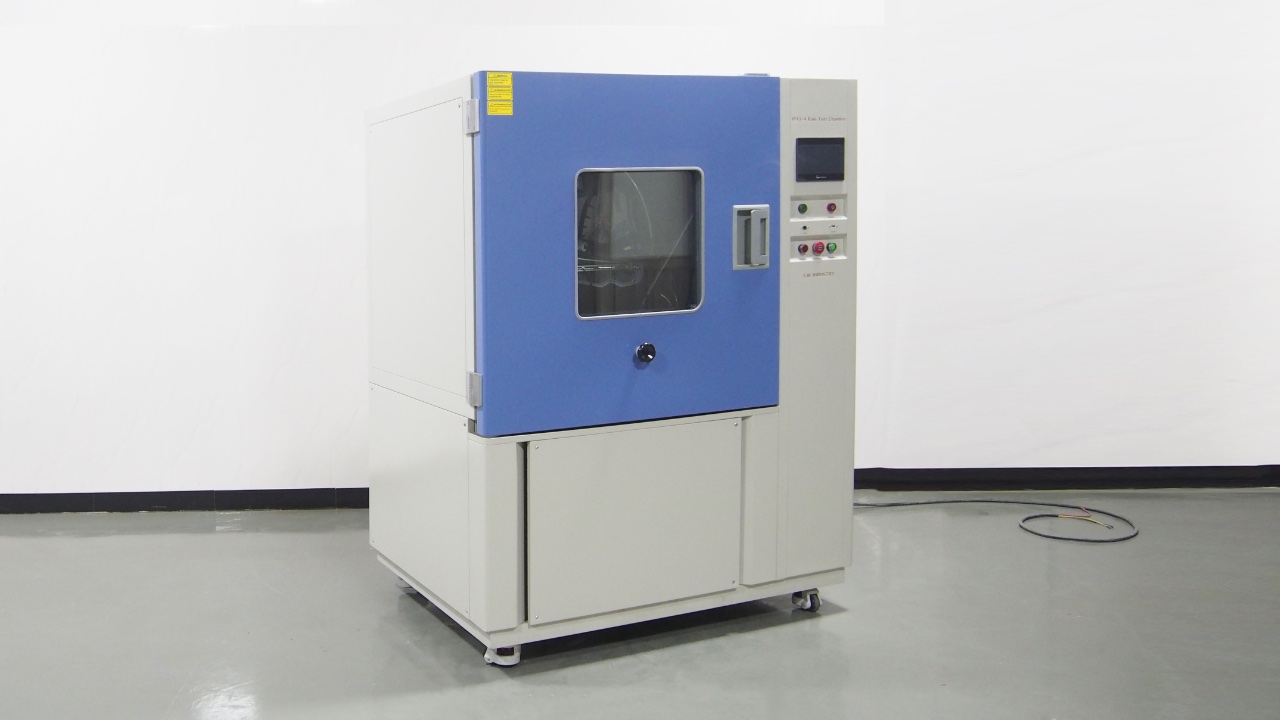

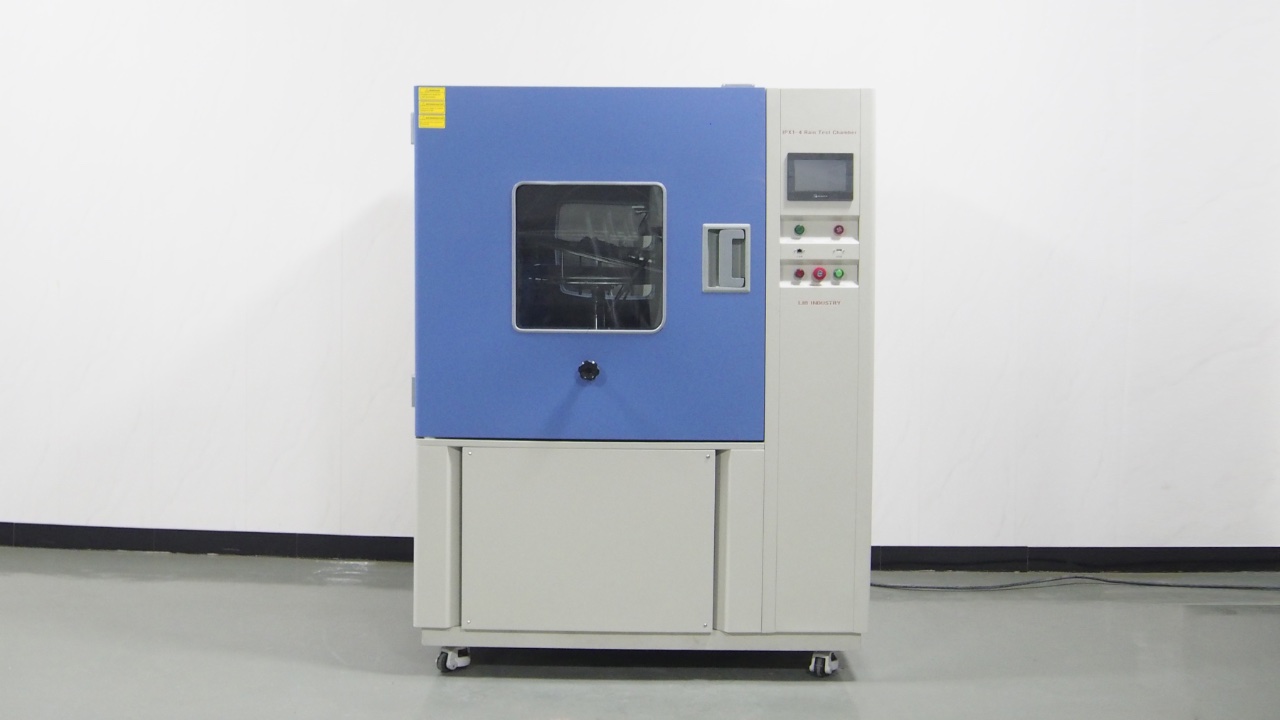

IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber
Description
LIB Water spray test chambers can perform tests in accordance with IEC60529, and IPX1 IPX2 IPX3 IPX4 protection code.The chambers built with the water tightness of sealed components such as head lamp, Power connector. Waterproof power connector in the test room can easily supply electricity to the specimens.

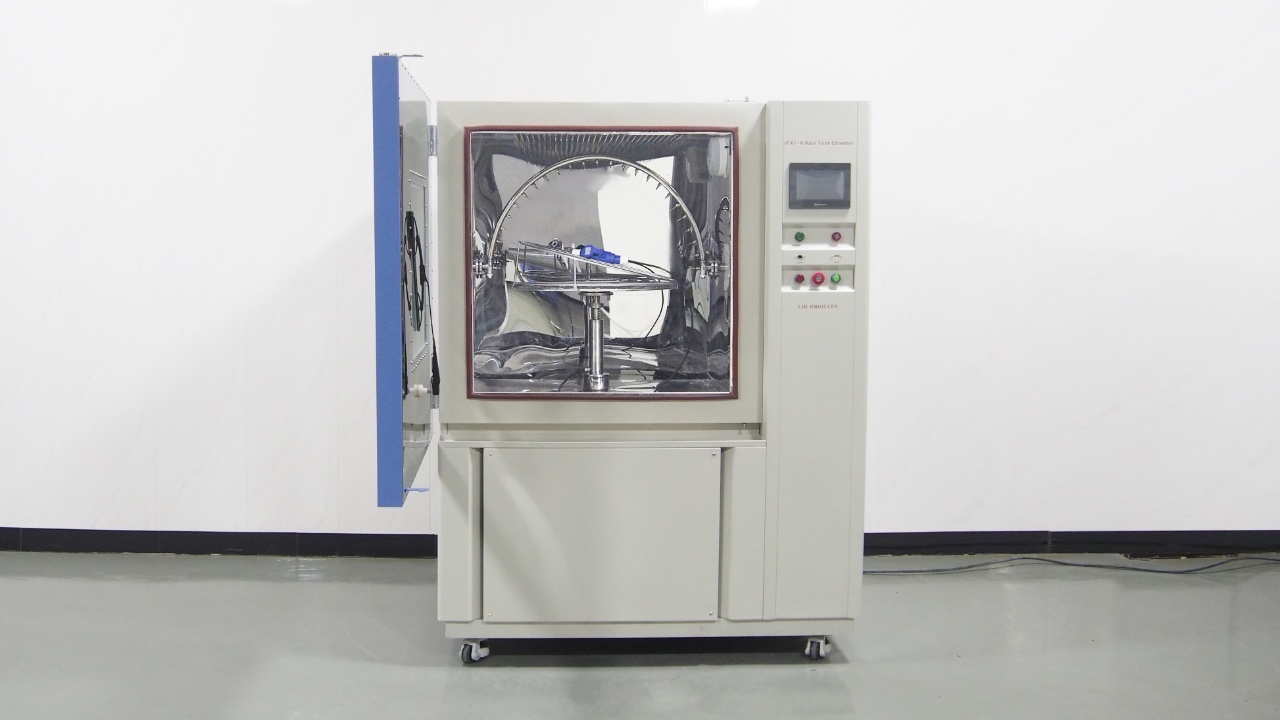

The water spray Chamber built with a water re-circulation system that reduced water use and a series of water pipes. Incorporated rotating turntable can promote even spray of water over the surface of the products under testing. Automatic water supply ensures adequate supply of water and automatic testing. All models are upgrade to programmable controller and Ethernet access that provides simple operation and control. Various size and configuration to suit many types of test conditions.
Advantage
● Monitor flow and water pressure
During the test, the deviation of water flow and pressure needs to be monitored in real time, and the control system will operate accurately according to the set value.
● Water purification system
LIB specially designed a set of automatic water inlet and water filtration system to filter impurities within 0.03mm particles, which has ensured the smoothness of the spray system.
● Save water
Water re-circulation system that reduced water use
● Material anti-corrosion treatment
The material of the working room is SUS304 stainless steel, all welded surfaces and cross-sectional surfaces have been pickled to prevent rust.
Specification
|
Model |
R-800C |
R-1200C |
|
Internal Dimensions (mm) |
900*950*950 |
1300*1350*1370 |
|
Overall Dimensions (mm) |
1180*1420*1920 |
1540*1820*2200 |
|
Interior Volume (L) |
720 |
2740 |
|
Drip tray size (mm) |
600*600 |
900*900 |
|
Spraying Hole Diameter |
φ0.4mm |
|
|
Hole Spacing |
50 mm |
|
|
Swing Angle of Oscillating Tube |
0 ~ ±180° |
|
|
Turntable Rotation
Speed |
1r/min (Adjustable) |
|
|
Oscillating Tube Radius |
400mm |
600mm |
|
Water Pressure Control |
||
|
Controller |
Programmable color LCD touch screen controller,Ethernet connection, PC
Link, USB |
|
|
Water supply system |
Water tank, booster pump, Automatic water supply, Water purification system |
|
|
Safety Device |
Over-temperature Protection; Over-current
Protection; Water Shortage Protection; Earth
leakage Protection; Phase Sequence Protection |
|
|
Exterior Material |
Steel Plate with protective coating |
|
|
Interior Material |
||
|
Observation Window |
Double layer insulating glass with wiper |
|
|
Power Supply |
380V 50Hz |
|
|
Maximum Noise |
65 dBA |
|
|
Standard |
IEC 60529, ISO20653 |
|
