Description

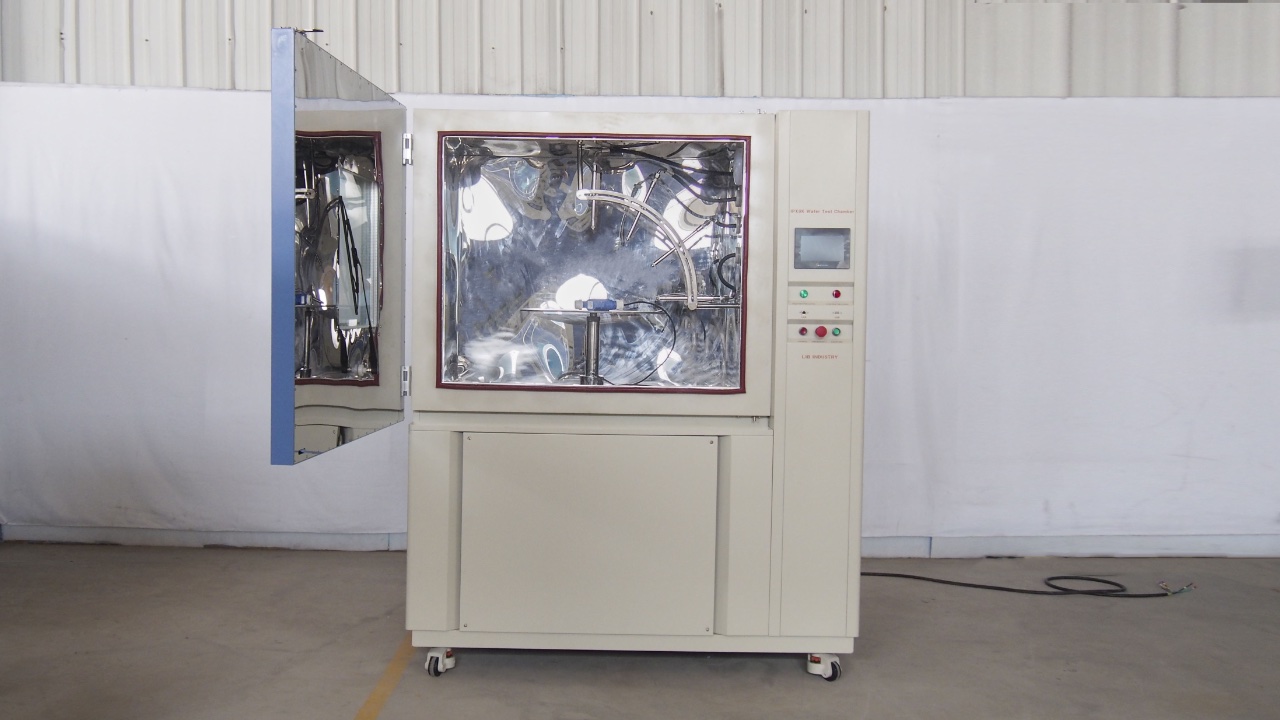

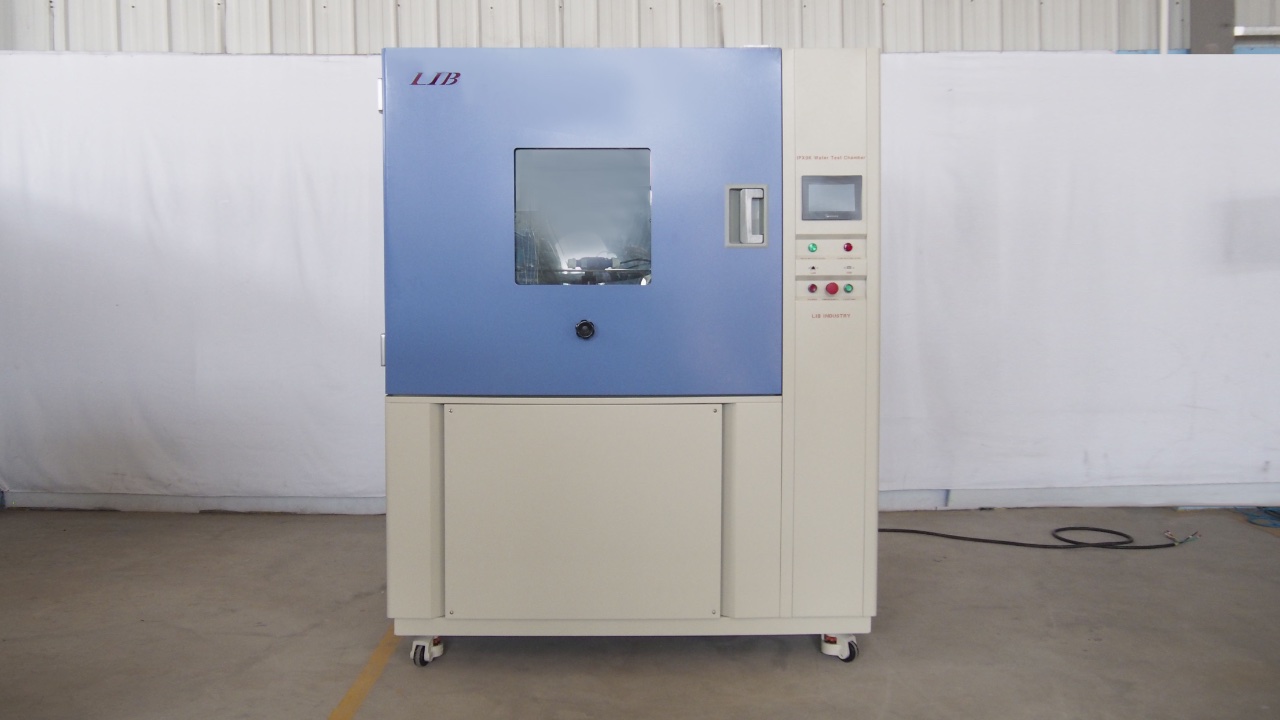

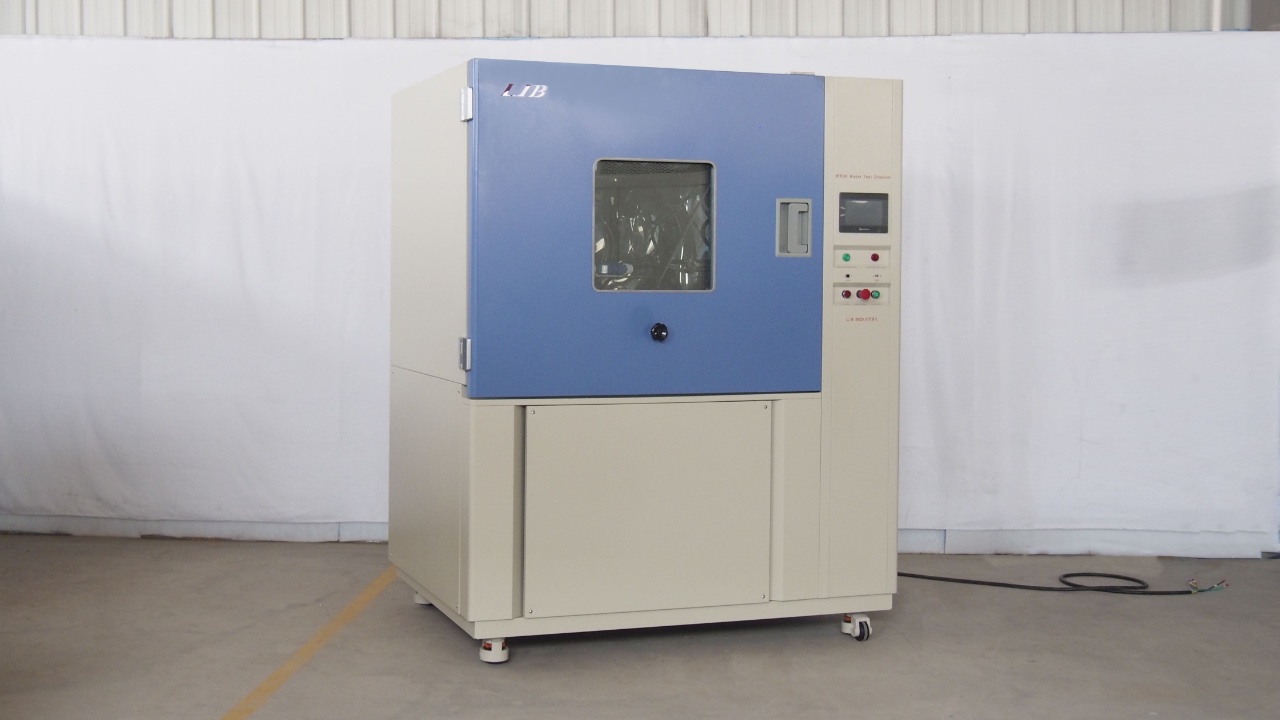

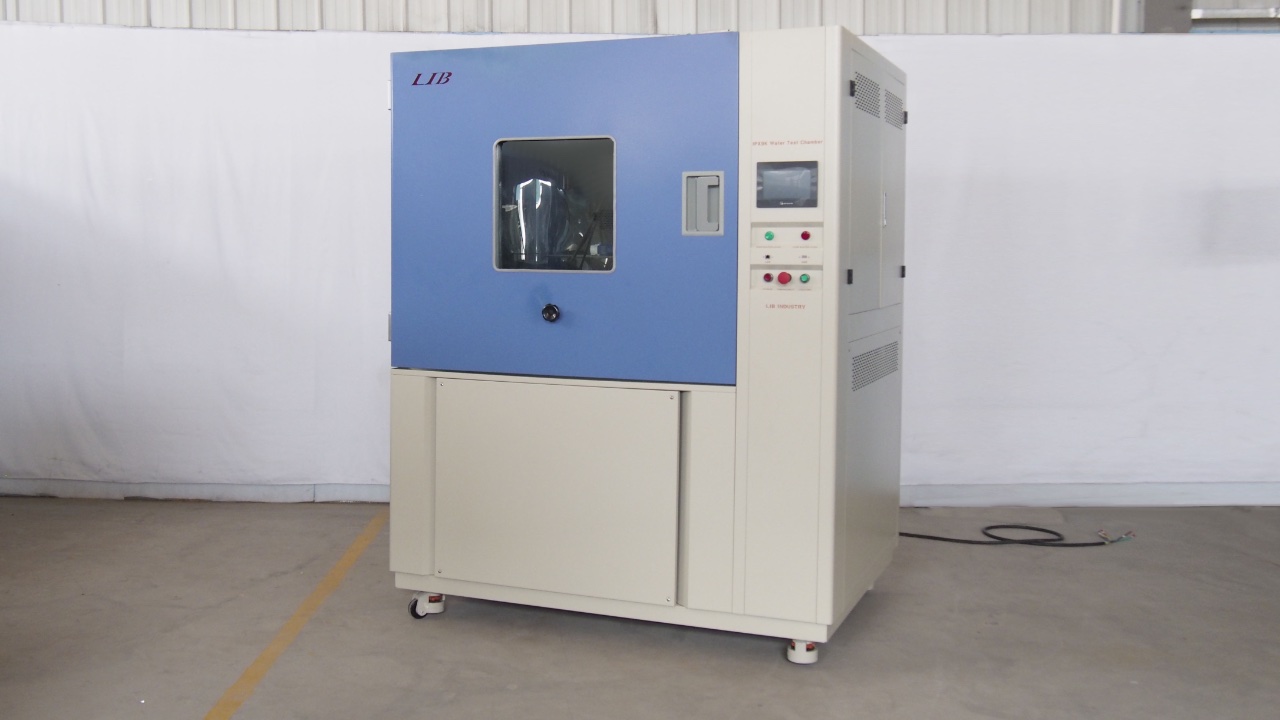

IPX9K High Pressure High Temperature Water Spray Test Chamber is widely used in the electronics, military and consumer product industries. IPX9K is the highest rating currently available for water ingress protection in accordance with IEC 60529 and ISO 20653.

Products under test is subjected to high pressure (8000 – 10000 Kpa), high temperature (+80°C) and water jets at a flow rate of 14 – 16 L/min.

IPX9K test chamber built with a water re-circulation system that reduced water use and a series of water pipes. Automatic water supply ensures adequate supply of water and automatic testing.

All models are upgrade to programmable controller and Ethernet access that provides simple operation and control.

Advantage

● Anti-clogging design
A 1mm filter is installed on the backflow port of the workroom to prevent clogging caused by impurities in the water.

● Water tank insulation
The water tank with insulation layer to meet the requirement of 88℃ water temperature in the IPX9K test.

● Fixing device for test specimen
When high-pressure water is sprayed, the test specimen on the turntable will be washed away from the turntable. We specially designed M6 screw holes with a spacing of 5cm and screws to fix the specimens.

● Build-in lighting
The built-in waterproof LED lighting inside the workroom makes it clear to observe the test specimen. The light can be turned on and off at the control panel button.

Specification
