Description

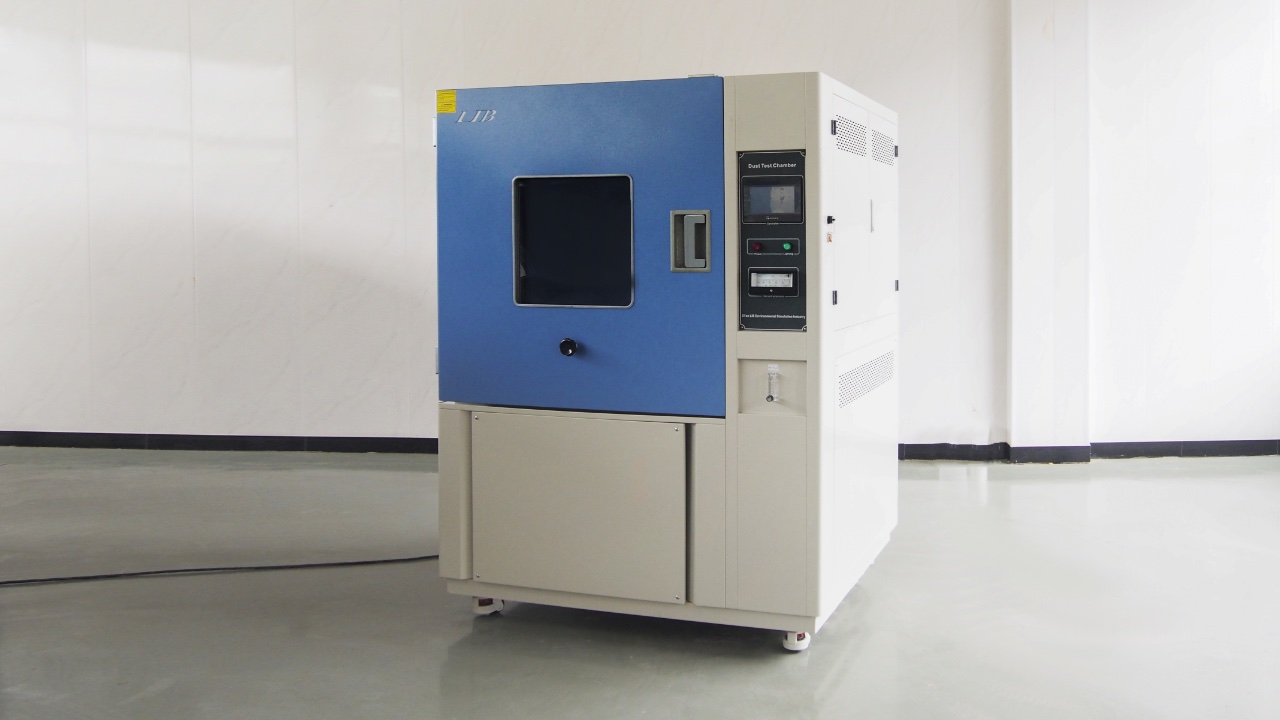

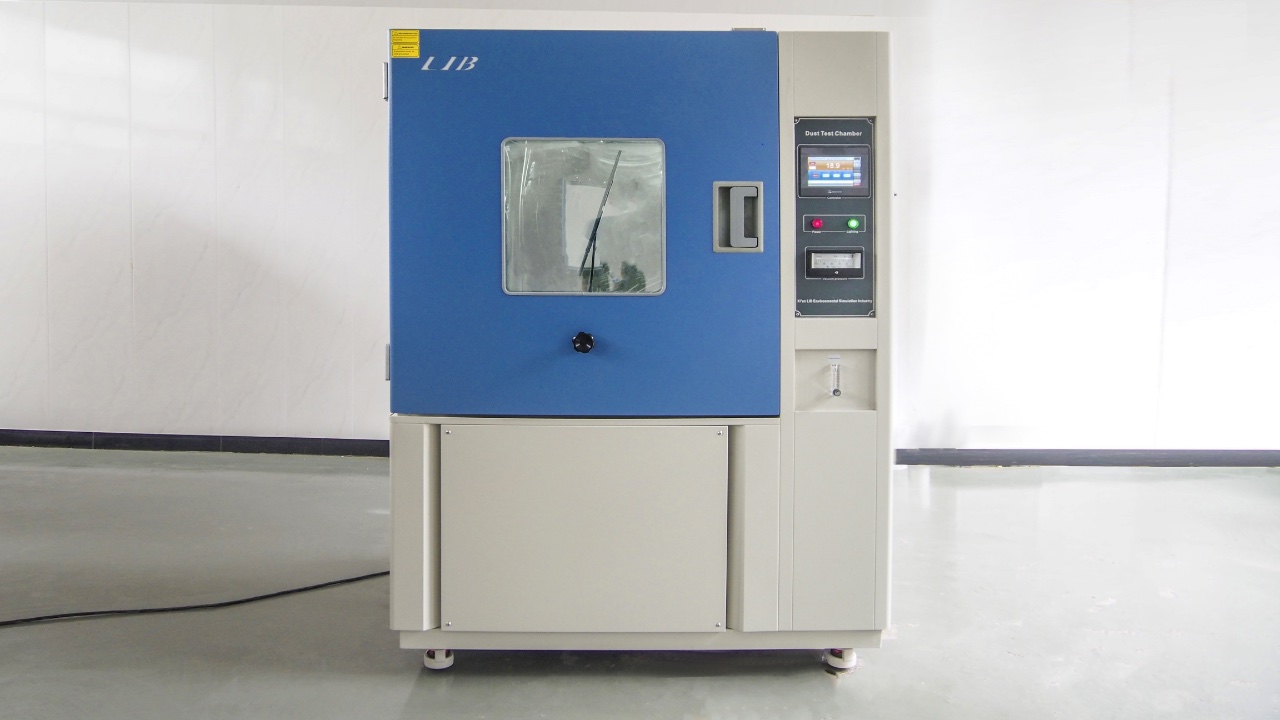

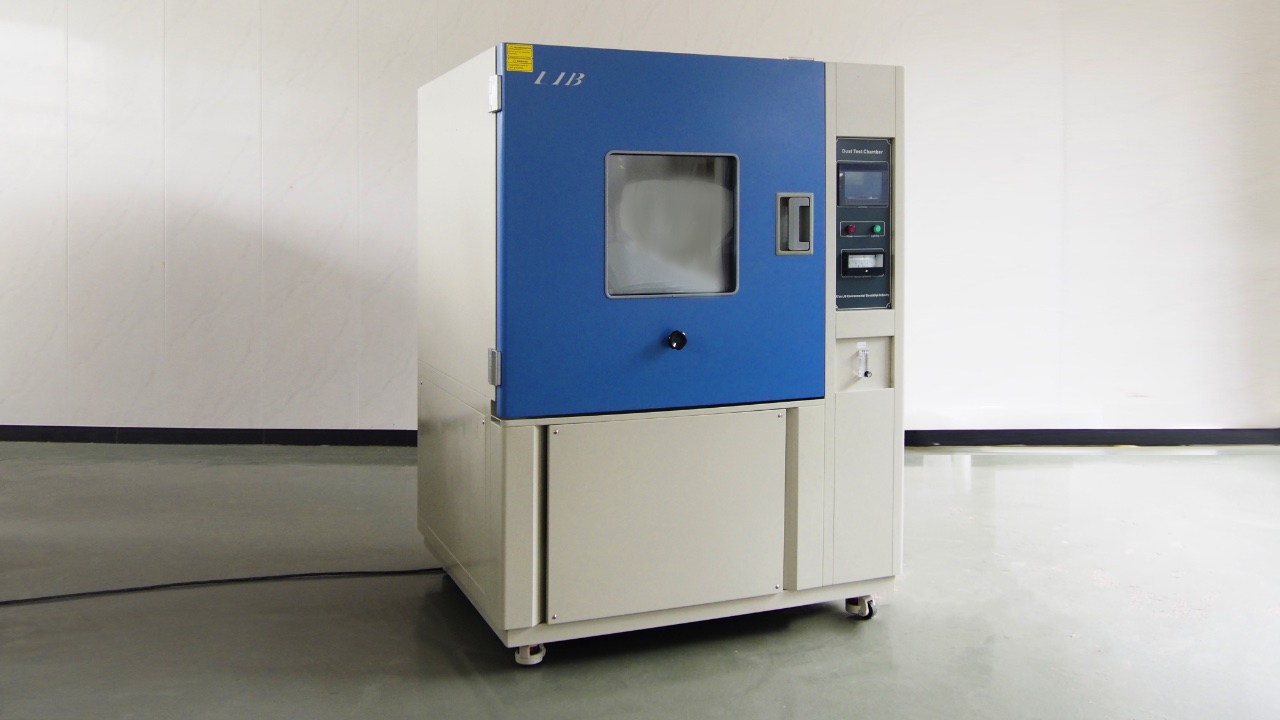

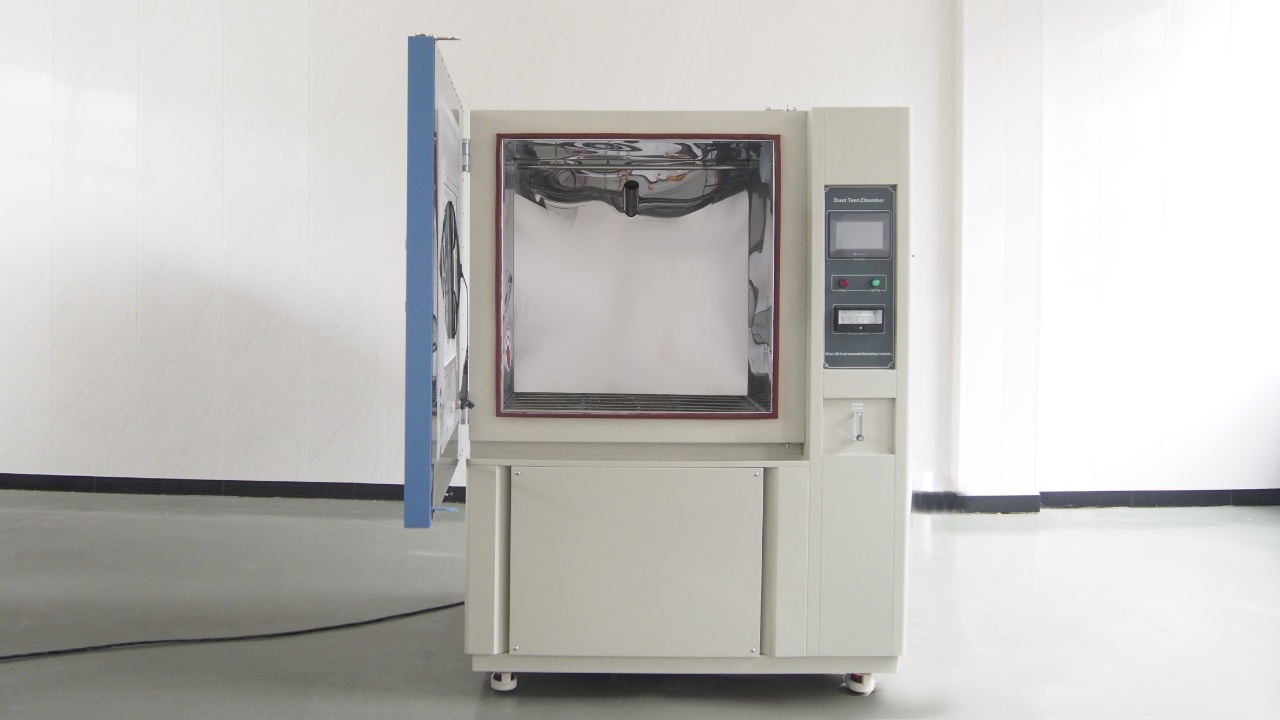

IP5X IP6X Sand and Dust IP Test Chambers are capacity of 800 liters ,1000 liters, 1500 liters and 2000 liters. Considering that some specimens are smaller and less, so we designed and produced small dust chambers and larger dust ingress test chambers.

Sand and dust test chambers are made for the simulation of dust and sand conditions. These dust test chambers are used to test the exposure of test the exposure of automotive and electronic components under extreme environmental conditions in order to validate product seal.Dust ingress test methods included IEC60529, ISO20653 and many other standard.

Advantage
● Sand dust recycling system
The talcum powder will fall back to the bottom of the dust chamber after the test. LIB designed a small door that can be opened and equipped with tools for taking talcum powder and filtering, so that customers can recycle dust and re-estimate the weight of talcum powder.

● Prevent sand and dust from clumping
In order to prevent the talcum powder from being damp and agglomerated, LIB has specially designed a heating system, the highest temperature can reach 55℃, which effectively reduces the humidity of the workroom to below 30%RH.

● Build -in power interface
The workroom is equipped with a single-phase 16A internal power interface to power up the test specimen. The power-on time and cycle can be controlled by the controller.
