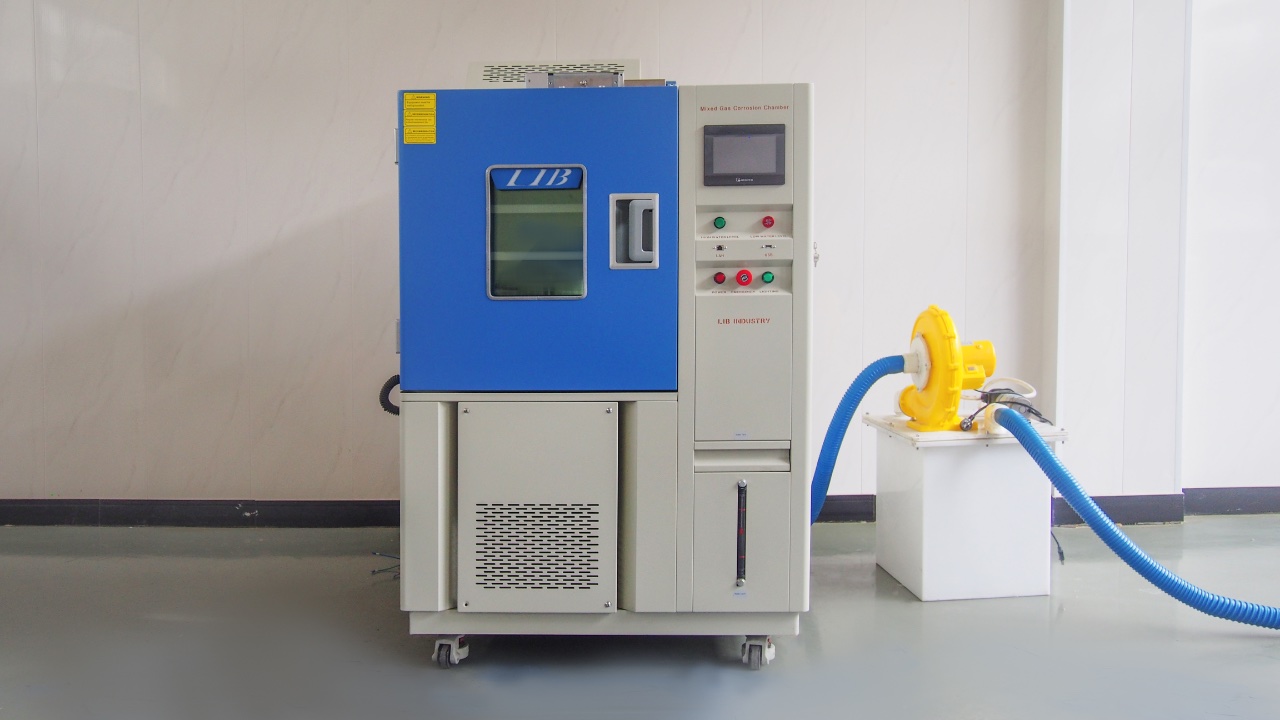

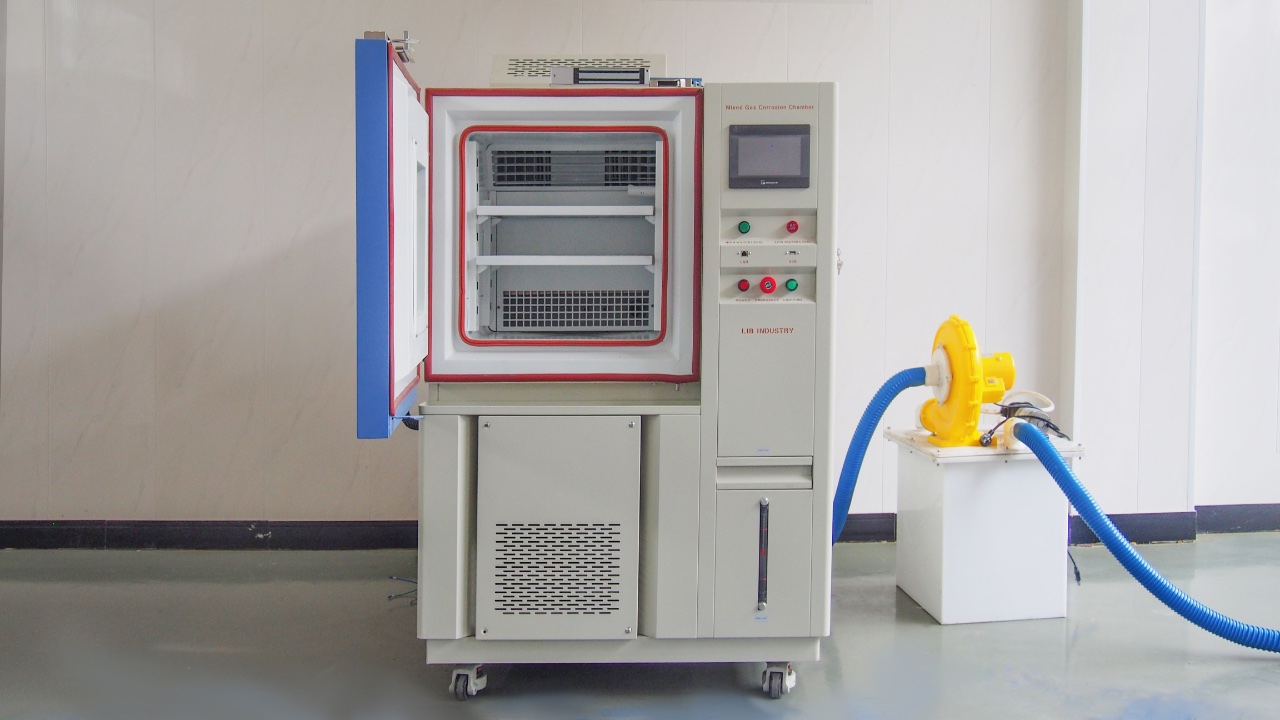

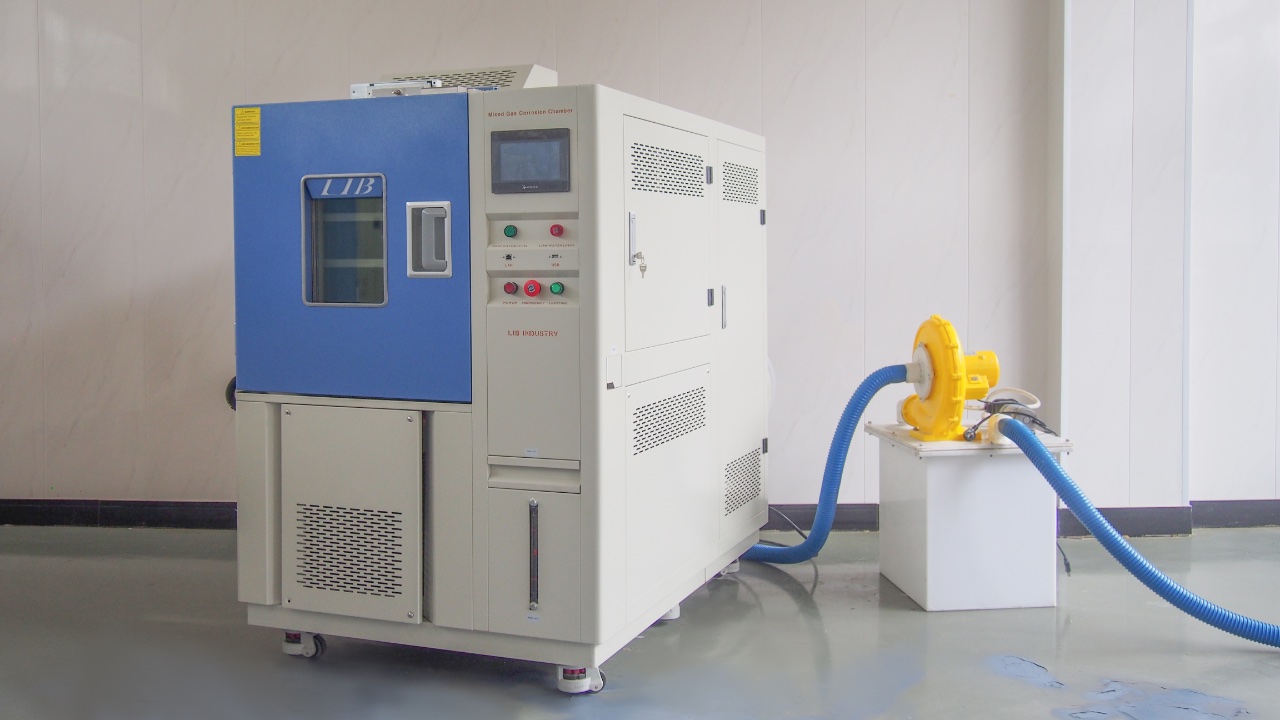

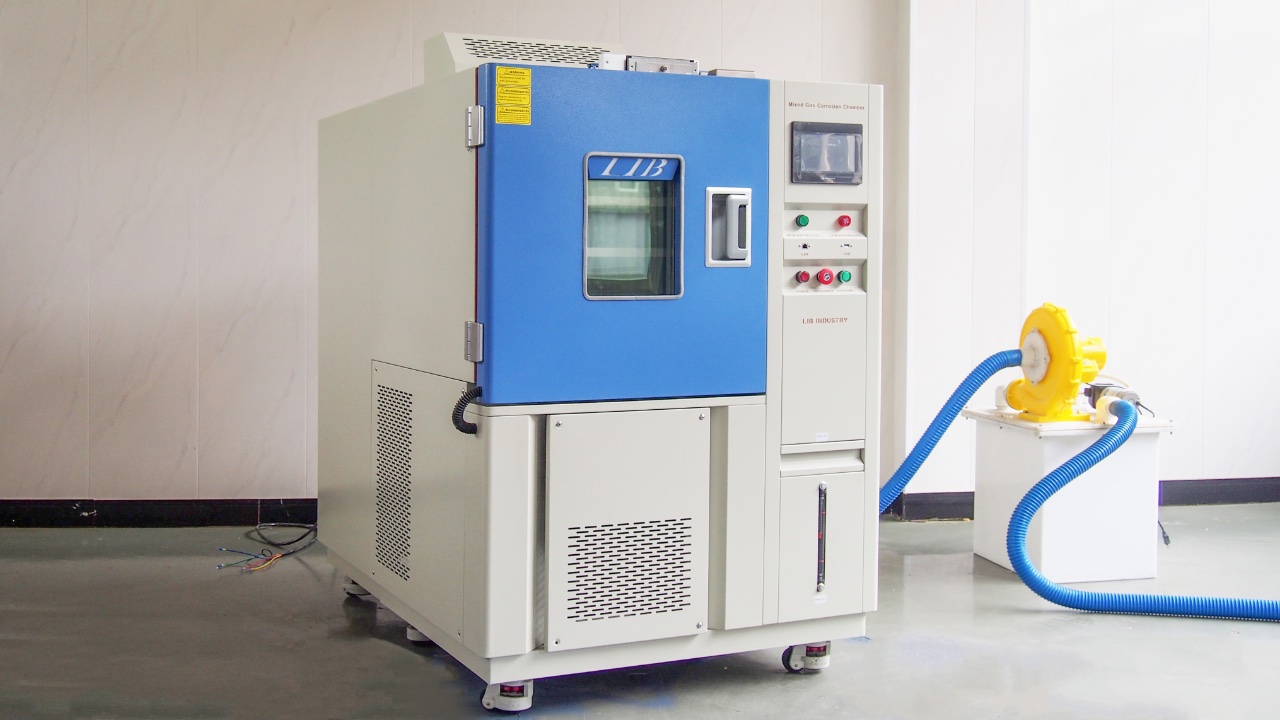

SO2 Noxious Gas Test Chamber
Description
SO2 Noxious Gas Test Chambers reproduce damages by temperature, relative humidity and noxious gas Corrosion to material, components and constructions.
This noxious gas chamber can be used for single gas tests and mixed gas tests.Test methods are in accordance with IEC 60068-2-42, IEC60068-2-60 and other standards.
Advantage
● Anti-corrosion treatment of workroom material
A layer of glass fiber reinforced plastic is attached to the stainless steel surface of the workroom, which not only prevents corrosion and enhances the robustness.
● The SO2 exhaust device is equipped with an NAOH solution tank to dilutes SO2 to make workplace clean and safe.
Specification
|
|
SO-100 |
SO-225 |
SO-500 |
SO-800 |
SO-1000 |
|
Internal Dimensions (mm) |
400*500*500 |
500*600*750 |
700*800*900 |
800*1000*1000 |
1000*1000*1000 |
|
Overall Dimensions (mm) |
860*1050*1620 |
960*1150*1860 |
1180*1350*2010 |
1280*1550*2110 |
1500*1550*2110 |
|
Interior Volume (L) |
100 |
225 |
500 |
800 |
1000 |
|
Temperature Range |
15 ℃ ～ 80 ℃ |
||||
|
Temperature Fluctuation |
± 0.5 ℃ |
||||
|
Temperature Deviation |
± 2.0 ℃ |
||||
|
Humidity Range |
30% ~ 98% RH |
||||
|
Humidity Deviation |
±1% RH |
||||
|
SO2 Concentration |
25±5 ppm |
||||
|
Air Change Rate |
3~5 /h |
||||
|
Cooling system |
Mechanical compression refrigeration
system |
||||
|
Refrigerating unit |
French TECUMSEH compressor |
||||
|
Heating Element |
Nichrome heater |
||||
|
Humidifier |
External isolation, stainless steel surface evaporation
humidifier |
||||
|
Water Supply System |
Water purification system,Automatic
water supply |
||||
|
Controller |
Programmable color LCD touch screen controller,Ethernet connection,
PC Link |
||||
|
Temperature Sensor |
PT100Ω / MV A-class |
||||
|
Humidity Sensor |
Dry and wet bulb sensor |
||||
|
Gas Sensor |
SO2 gas sensor |
||||
|
Air Circulation |
Centrifugal wind fan |
||||
|
Door Lock |
Electromagnetic lock |
||||
|
Gas Exhaust
Device |
SO2 Exhaust Unit |
||||
|
Safety Device |
Humidifier Dry-combustion Protection;
Over-temperature Protection; Over-current Protection;
Water Shortage Protection; Earth
leakage Protection |
||||
|
Interior material |
|||||
|
Exterior
material |
Steel Plate with protective coating |
||||
|
Power Supply |
380V 50Hz |
||||
|
Maximum Noise |
65 dBA |
||||
|
Standard |
IEC60068-2-42；IEC60068-2-60 |
||||
