mmW anechoic chamber For Combined mm wave OTA Test

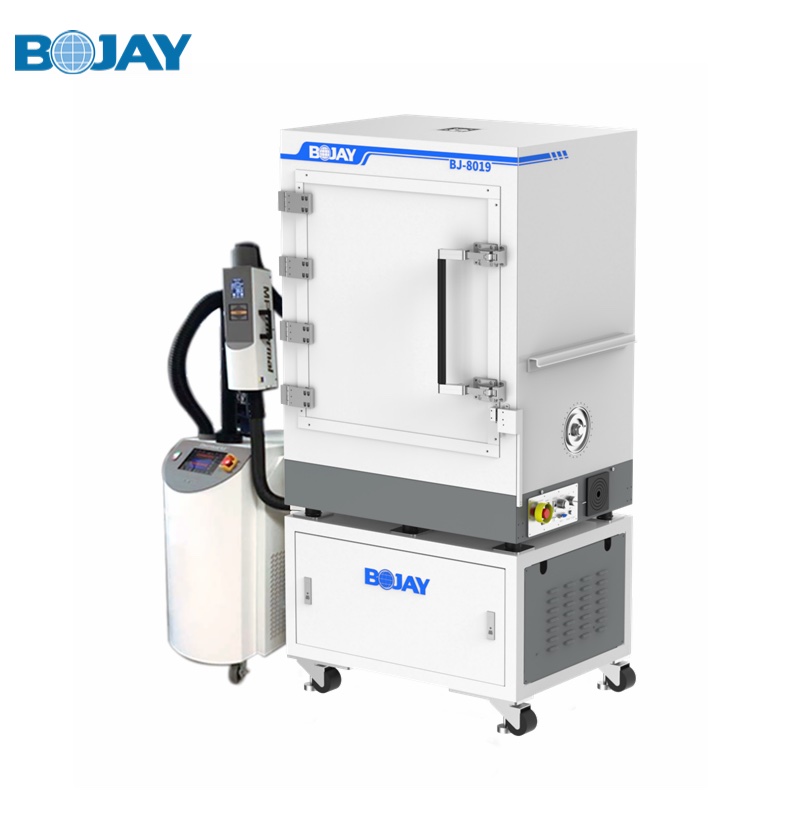

BJ-8019 Anechoic Chamber For Laboratory
● For consumer electronic devices 5G mmWave far field OTA test
● Suitable for DUT size < 12"
● For lab test application.
● For consumer electronic devices 5G mmWave far field OTA test
● Suitable for DUT size < 12"
● For lab test application.
Features
● Operation frequency from 700MHz to 60GHz
● 700MHz to 60GHz Isolation > 70dB

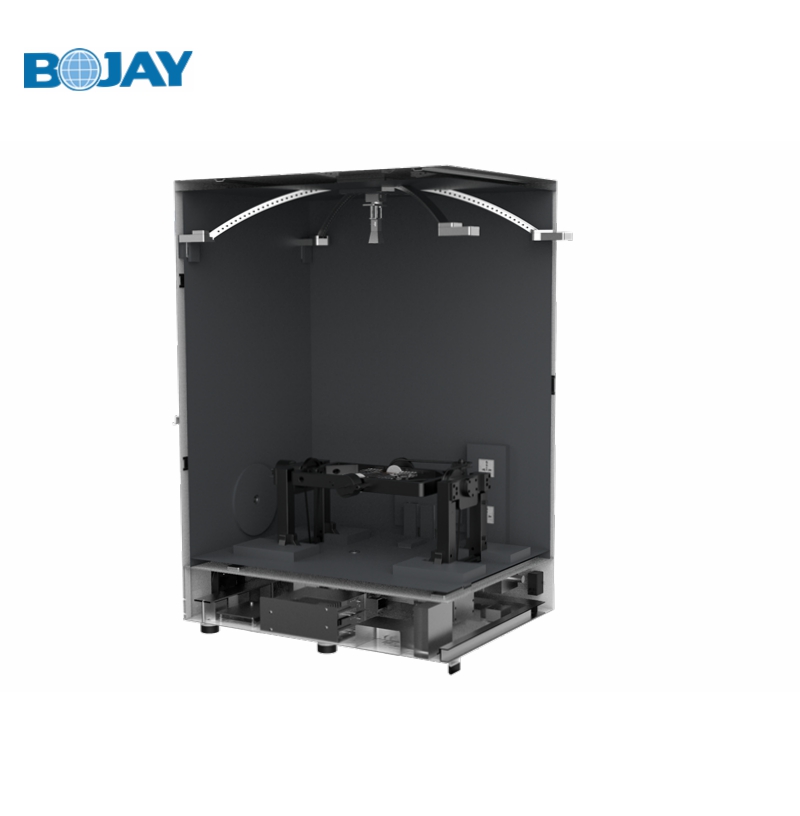

● Ultra fast DUT rotate speed within θ and φ step with accuracy of 0.5°to fulfill 3D spherical test
● Max. far field distance up to 590mm
● Chamber ambient temperature from -40℃ to 100℃ adjustable with optional thermal box
● Input AC power: 100-240V AC 50Hz
Specification
| Outer Dimension | 970(W)*800(L)*1200(H)mm |
| Inner Dimension | 770(W)*520(L)*920(H)mm |
| Operation Door Dimension | 690(W)*730(H)mm |
| Net Weight | approx.235kg |
| Max DUT Size | 250(L)*165(W)*50(H)mm |
| DUT Weight | <1.2kg |
Options
● Thermal box is an option to provide extreme temperature environment for ECT
● The bulkhead panel can be customized with optional connectors, such as 2.92mm, 2.4mm and waveguide port
● Support multiple antenna array for different test applications.
