● For 5G black box measurement for various size DUTs
● For lab test application
Features

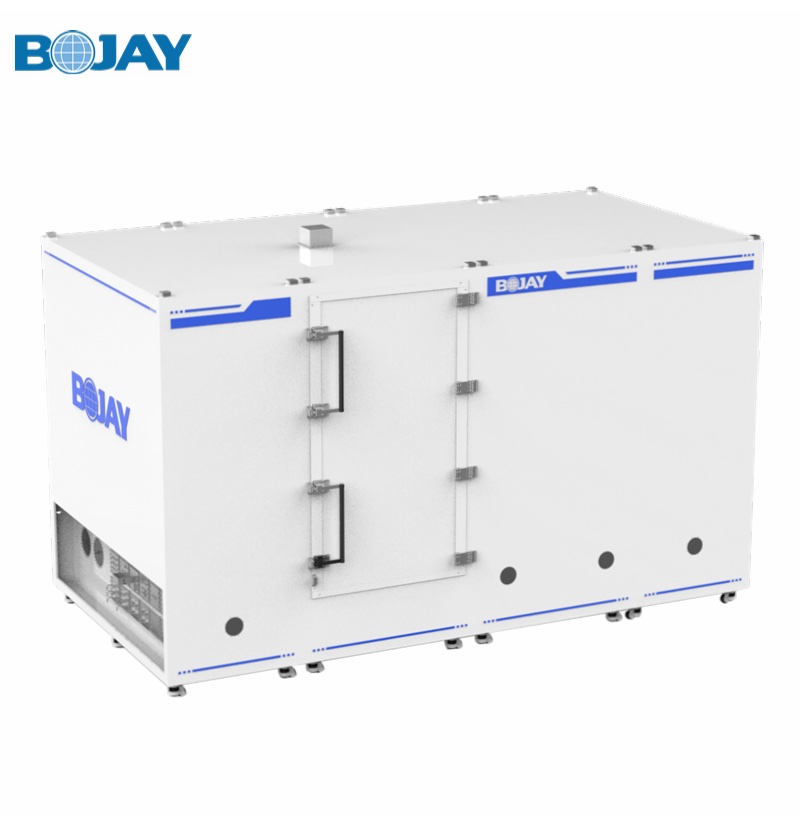

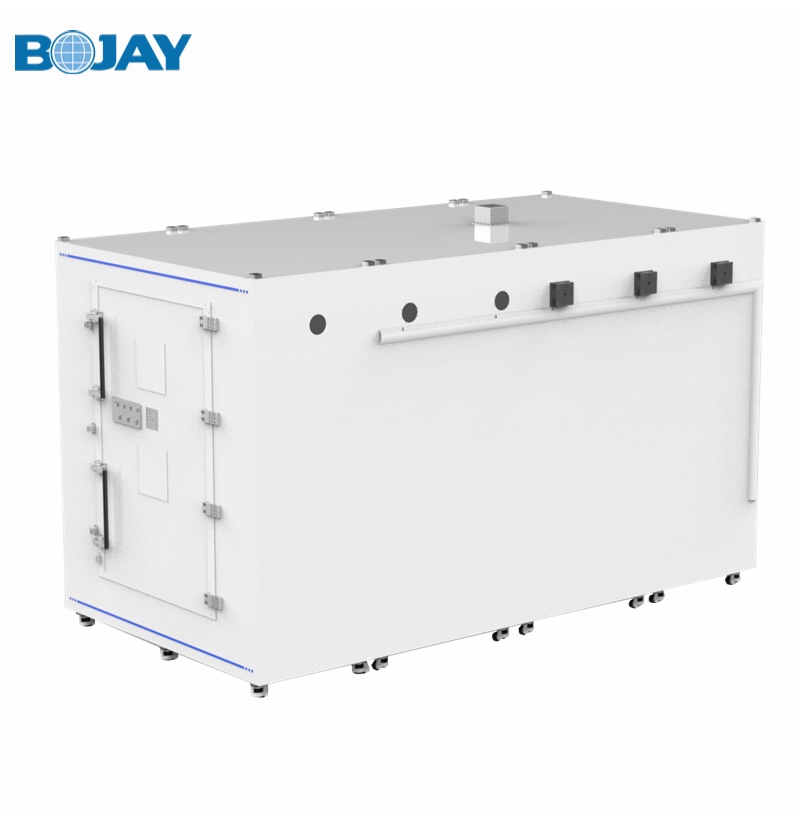

● BJ-8601 test system includes a medium size anechoic chamber, and a compact antenna test range ( CATR) designed for mmWave OTA test in a lab environment, covers frequency range from 24 to 90GHz
● The high precision reflector provides a large quiet zone size of 400mm for a black box testing
● Combing with a high accuracy 4-axis positioner, the system is able to provide fast and accurate antenna measurement for various size DUTs up to 100 kg
● Fast measurement capability via TTL hardware signal trigger
● The CATR supports single or multiple feed antennas to measure different signals at the same time
● The system is capable of switching between indirect far field and direct far field measurement method
● Optional thermal enclosure is available for Extreme Condition from -40 to 100℃.
Specification
| Inner Dimension | 3400(W)*1600(L)*1990(H) mm |
| Outer Dimension | 3750(W)*1800(L)*2350(H) mm |
| Front Door Dimension | 770(W)*1570(H) mm |
| Right Door Dimension | 980(W)*1740(H) mm |
| Net Weight | approx.1860kg |
| Gross Weight | approx.2100kg |
| DUT Size | Max: 900(L)*650(W)*300(H) mm |
| Loading Capability | Max: 100kg |
| RF Isolation | 0.7~90GHz >70dB |
| Absorber Reflectivity | < -30 dB from 24 GHz to 50GHz |
| Reflector | Offset parabola, blended rolled edges |
| Reflector Size | Option 1: 800 x 800 mm
Option 2: 900 x 900 mm |
| Frequency Range | 24 ~ 90GHz |
| Quite Zone Quality | Dimensionφ400mm Amplitude taper ≤ 1dB Amplitude ripple ≤±0.5dB Phase variation ≤ ±5° Cross-Pol isolation ≤-30dB |
| Feed Antenna | Single feed:800 or 900 reflect Multi feed:900 reflector only Working Freq. 24~50GHz Connector 2x2.4mm Extendable to 90GHz by Changing Feed Antenna Material Al alloy Cross-Pol isolation ≤-43dB |
