● For consumer electronic devices 5G mmWave far field OTA test
● Suitable for DUT size < 15"
● For lab test application.
Features
● Operation frequency from 700MHz to 60GHz
● 700MHz to 60GHz RF Isolation > 70dB

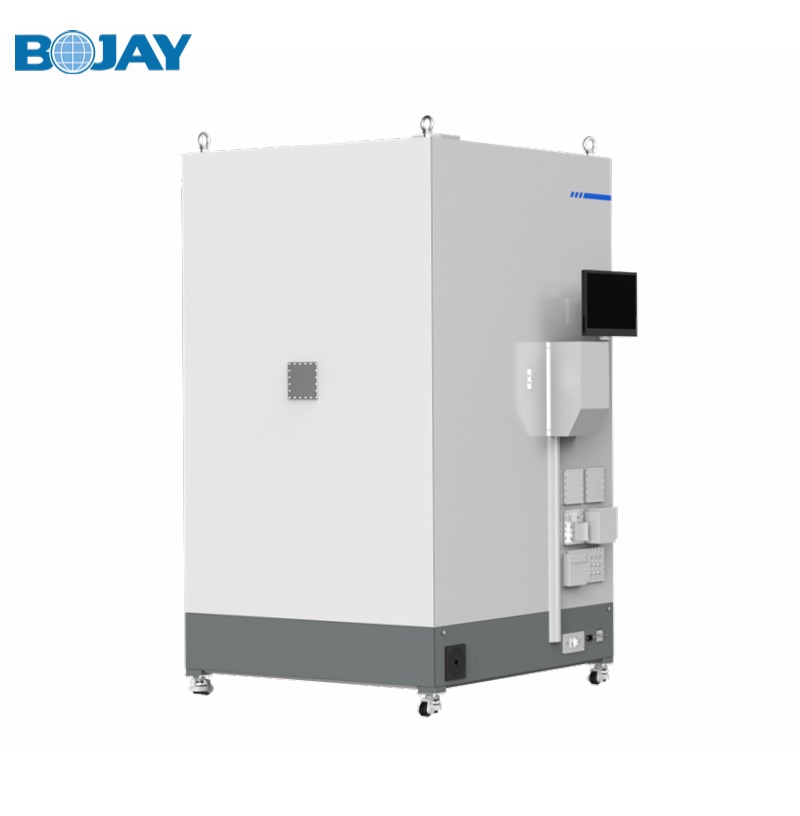

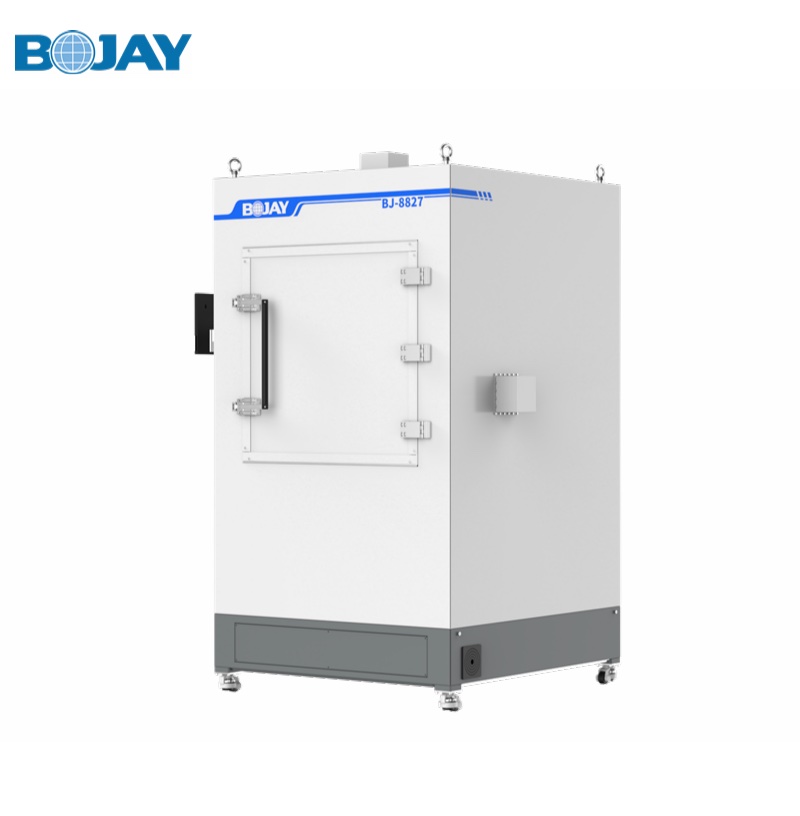

● BJ-8827 anechoic chamber is designed for 5G OTA test for both FR1 and FR2
● 2-Axis Positioner Elevation 170 degrees and Azimuth 360 degrees of rotation for antenna measurements
● Positioner can be controlled via USB, RS232 or Ethernet. Positioner using SCPI or Hex command set
● Supports DUTs size up to 15” and weight up to 15 kg
● Typical test far field distance from 700mm
● Optional thermal enclosures are available for extreme thermal condition test
● Input AC power: 100-240V AC 50Hz.
Specification
| Outer Dimension | 1325(W)*1254(L)*2078(H)mm |
| Inner Dimension | 1000(W)*1050 (L)*1555(H)mm |
| Operation Door Dimension | 750(W)*750(H)m |
| Net Weight | approx.373kg |
| Max DUT Size | 380(L)*220(W)*100(H)mm |
| DUT Weight | <15kg |
Options
● Thermal box is optional to configure the ambient temperature in test chamber
● The different bulkhead RF adapters could be configured for various test plans.
