mmW anechoic chamber For Combined mm wave OTA Test

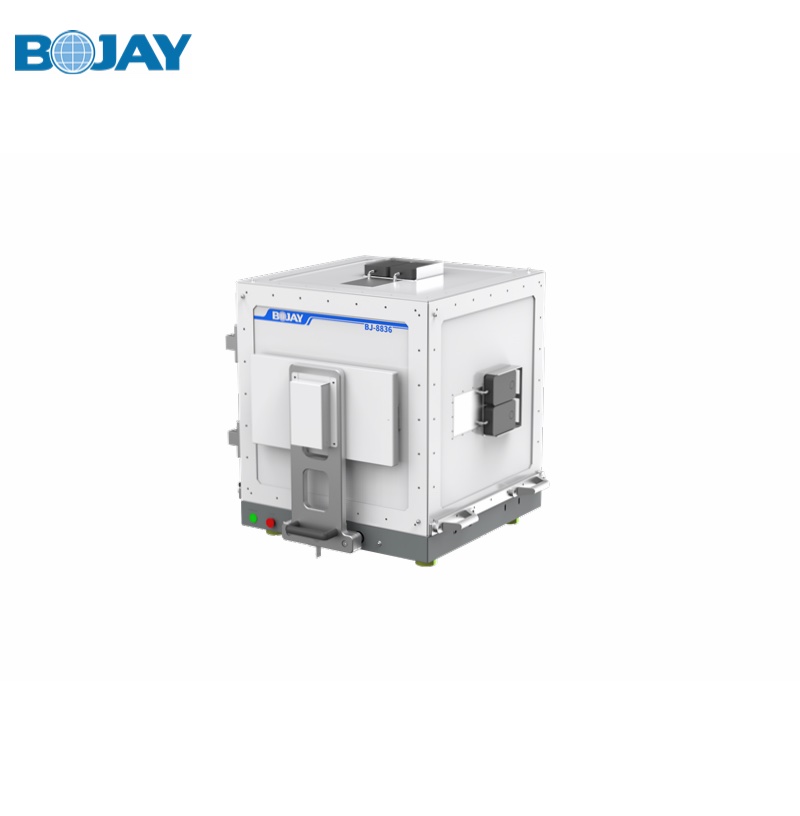

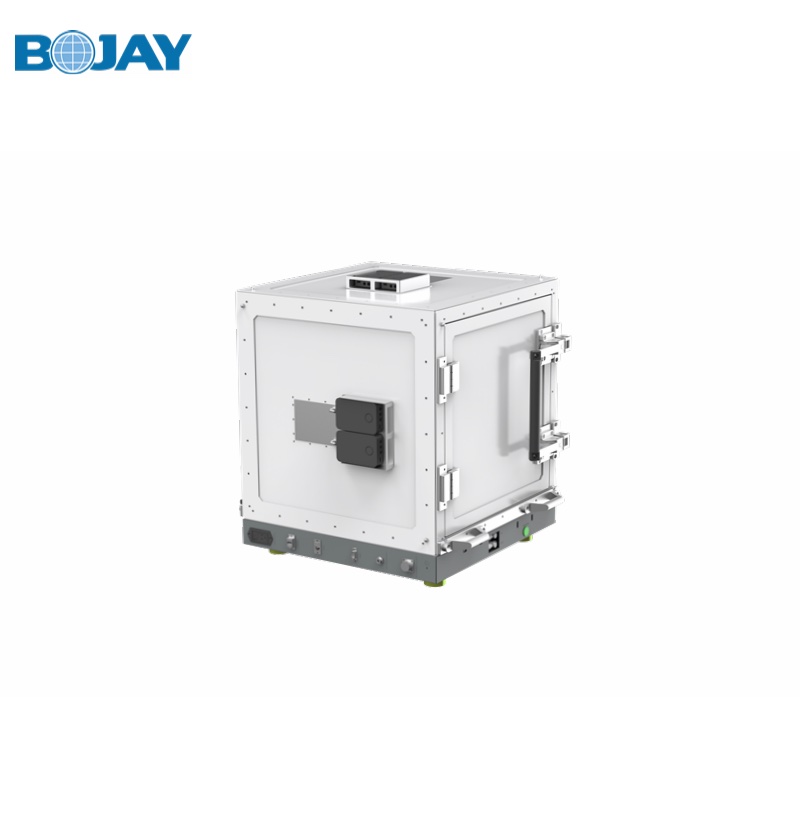

BJ-8836 Anechoic Chamber For Tablet Test
● For consumer electronic devices 5G mmWave far field OTA test
● Suitable for DUT size < 9"
● For mass production application.
● For consumer electronic devices 5G mmWave far field OTA test
● Suitable for DUT size < 9"
● For mass production application.
Features
● Operation frequency from 700MHz to 50GHz
● 700MHz to 50GHz RF Isolation > 70dB
● Absorber reflective: <-30dB in FR2 frequency bands
● Typical test far field distance from 70mm-120mm, and 160mm max for single test antenna setup
● Optimized for mass production testing requirements
● Pneumatic operation door for both automation & manual production line setup
● Modularized panel design (top/bottom/left/right/rear) enables options for customized design and future adaptability for new DUT or programs
● Input AC power: 100-240V AC 50Hz
Specification
| Outer Dimension | 658(W)*627(L)*643(H)mm |
| Inner Dimension | 441(W)*441(L)*441(H)mm |
| Operation Door Dimension | 300(W)*150(H)mm |
| Net Weight | approx.83kg |
| Max DUT Size | 160(W)*240(L)*50(H)mm |
Options
● The different bulkhead RF adapters could be configured for various test plans.
