mmW Anechoic Chamber (For FR1 and FR2)

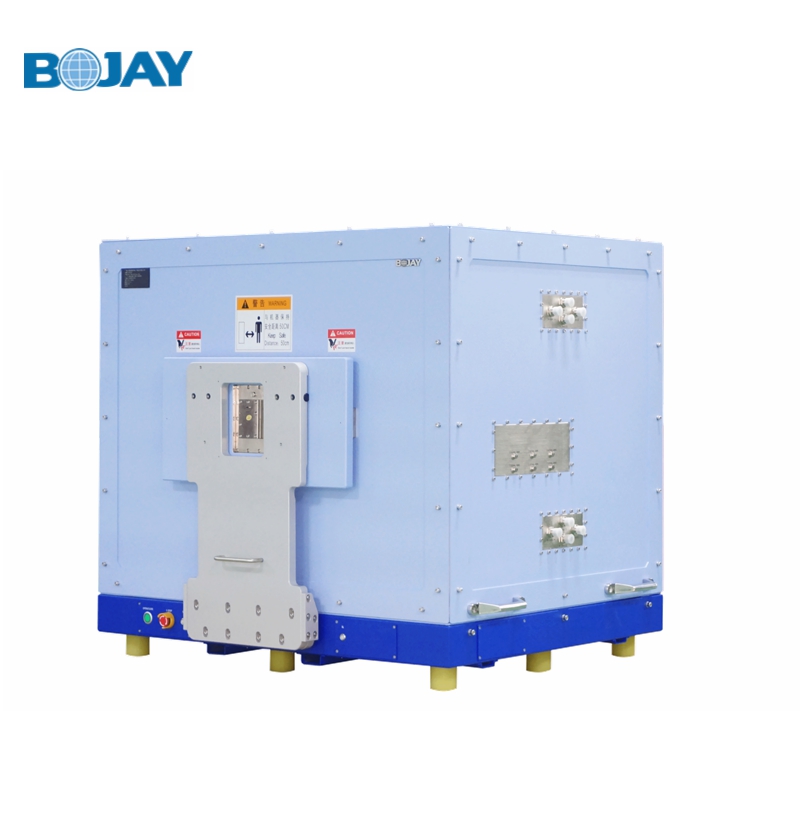

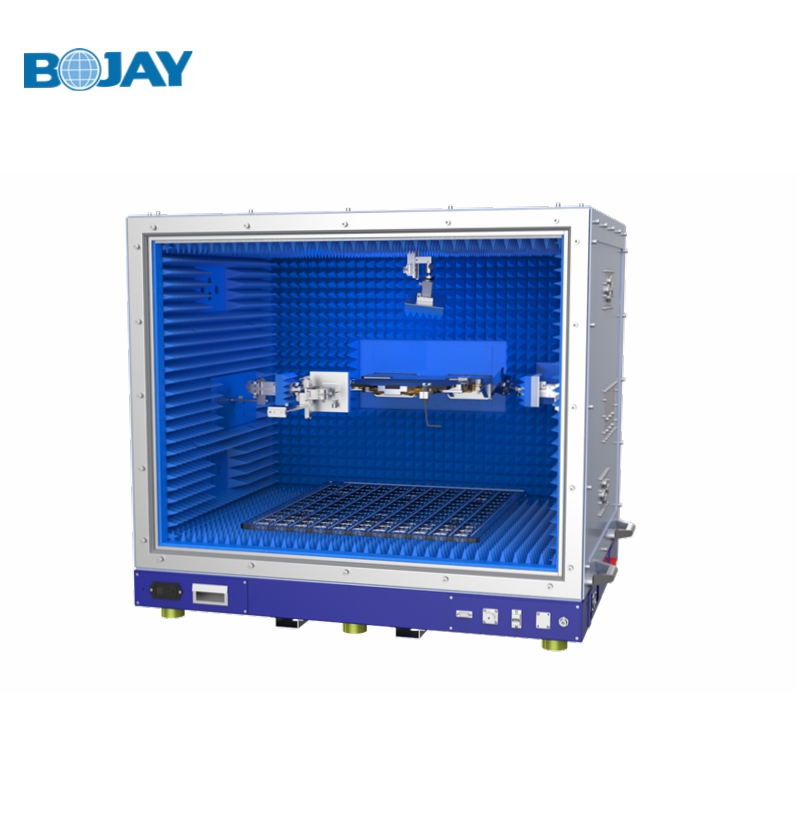

BJ-8845 mm Wave Anechoic Chamber (For FR1 and FR2)
● For 5G mm Wave far field OTA test
● Suitable for DUT size < 13.5"
● For mass production application
● For 5G mm Wave far field OTA test
● Suitable for DUT size < 13.5"
● For mass production application
Features
● Operation frequency from 800MHz to 50GHz
● 800MHz to 50GHz RF Isolation > 70dB
● Absorber reflective:<-30dB in FR2
● Compatible with sub 6GHz OTA test application
● Pneumatic operated front door
● Manually load/unload DUT
● EMI filters on all of the bulkhead connectors
● Remote controllable
● Input AC power: 100-240V AC 50Hz
Specification
| Outer Dimension | 1035.0(W)*840.0(L)*845.0(H) mm |
| Inner Dimension | 775.0(W)*557.0(L)*575.0(H) mm |
| Operation Door Dimension | 375.0(W)*175.0(H) mm |
| Side door size | 350(W)*525(H) mm |
| Far field distance | 100~150 mm (adjustable) |
| Net Weight | approx.175 kg |
| Gross Weight | approx.190 kg |
Options
● Antenna, port and connector, based on customer requirement
