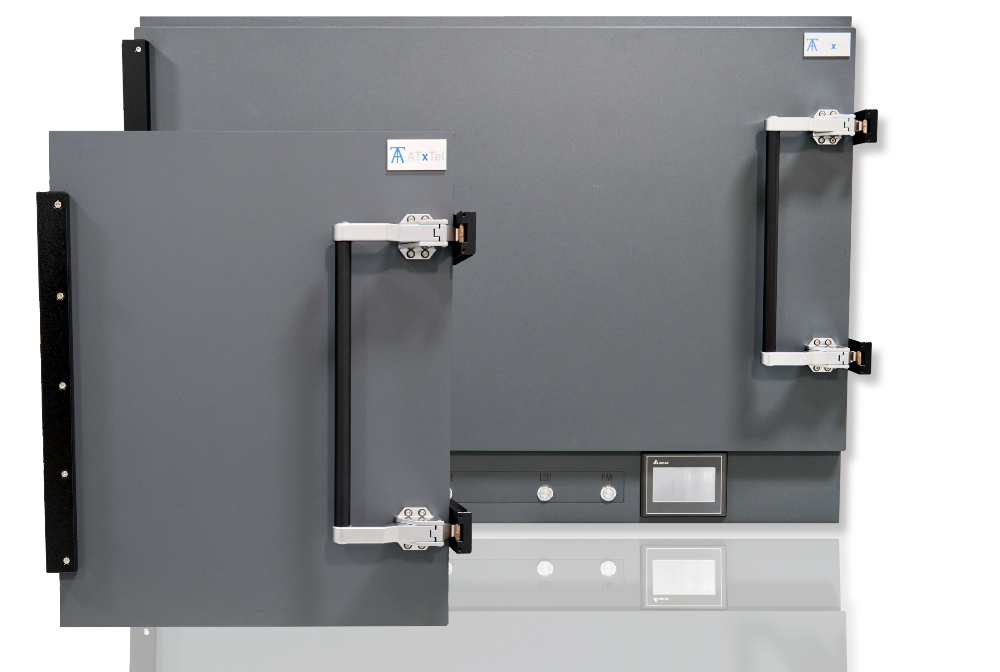

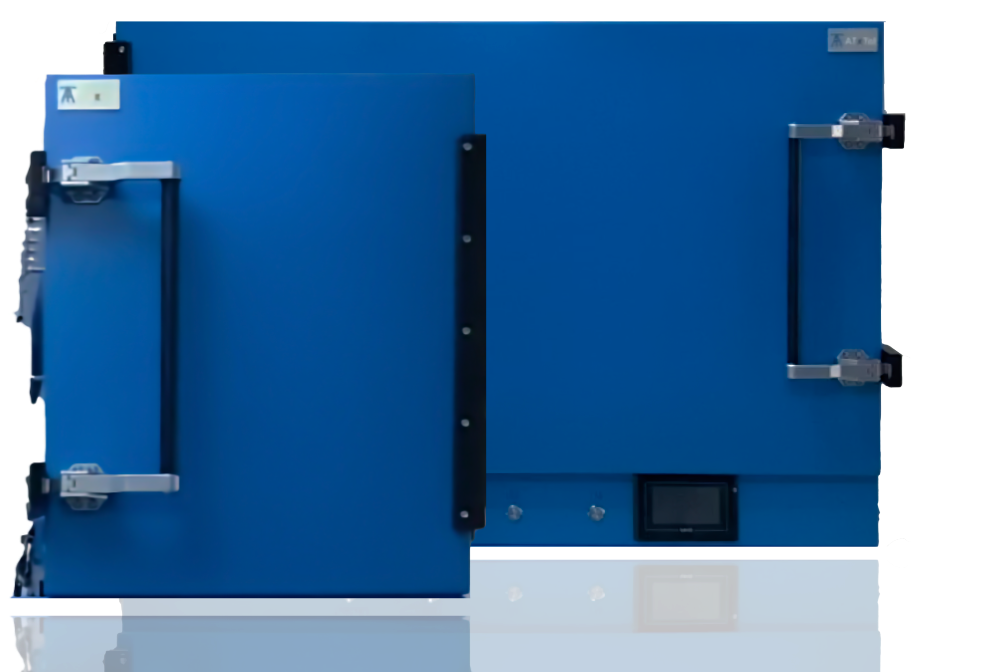

ATxTel's advanced designs feature high-rejection filters for minimal interference. RF filters support Multi-Gig Ethernet, USB 2.0 (USB-A), USB 3.0 (USB-C), HDMI, DC, and AC power. ATxTel XD Series uses durable aluminum RF-tight material for long-lasting shielding performance. SD Series uses stainless steel material for a cost-effective and reliable shielding performance. All metal surfaces in the RF chambers are covered with RF-absorbing foam to dampen internal reflections. Combined with high-rejection filter designs, the RF chambers achieve near-complete isolation, preventing RF leaks and ensuring a controlled environment. The enclosure is customizable with various components, including RF connectivity, filters, rack mounts, and ventilation options. Multiple sizes are available, from compact benchtop mounts to large chamber stacks for complex testbed configurations like mesh, MIMO, and handover.
Applications
Wi-Fi (including Wi-Fi 6E and Wi-Fi7), Bluetooth and Cellular (4G/5G) testing
Certification Testing
Quality Assurance
Network Optimization
Production Testing
Supported Wireless Standards:
Wi-Fi 7 (802.11be), Wi-Fi 6/6E (802.1ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), LTE, 5G NR, Bluetooth, Zigbee, and more.
Specifications
Shielding Effectiveness: Up to 100dB
Frequency Range: 10 MHz to 18 GHz
Construction Material:

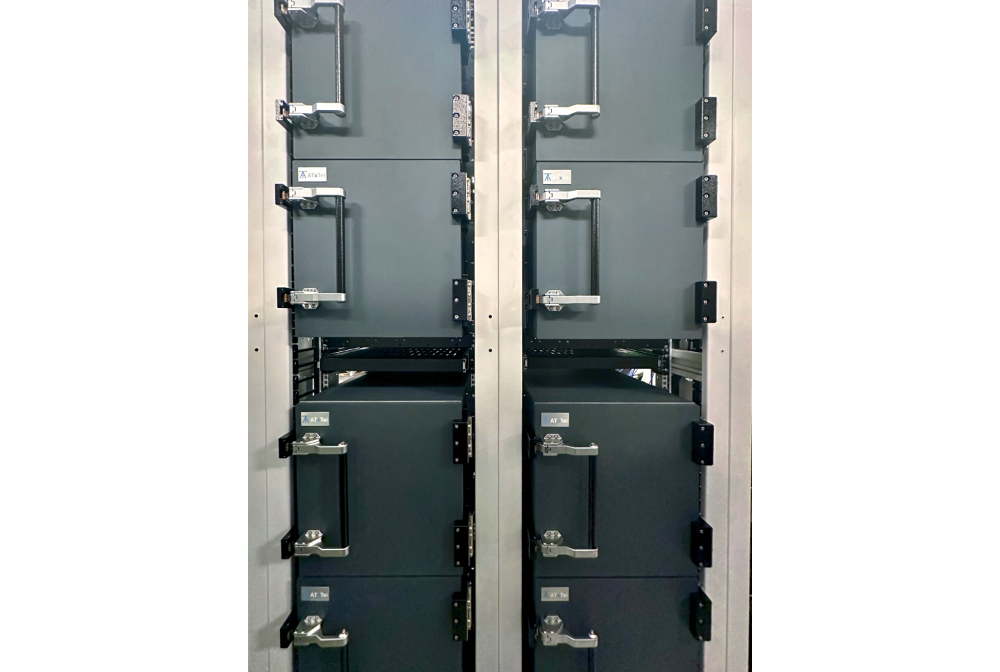

XD and RD Series: Aluminum
SD and TSD Series: Stainless Steel
Interior:
Semi-anechoic absorption foam with high-gain directional antennas
XD Series: 5cm foam
SD and RD Series: 3cm foam
TSD Series: none
Dimensions: Standard and Customizable
