Temperature-resistant amplitude and phase stable cable

Additional Features

  • Ultra-low loss

  • Amplitude stability

  • Mechanical phase stability

  • Good power handling capability

  • Low passive intermodulation (PIM)

  • Light weight

  • Good bending performance

  • Excellent shielding performance

LA%20Series

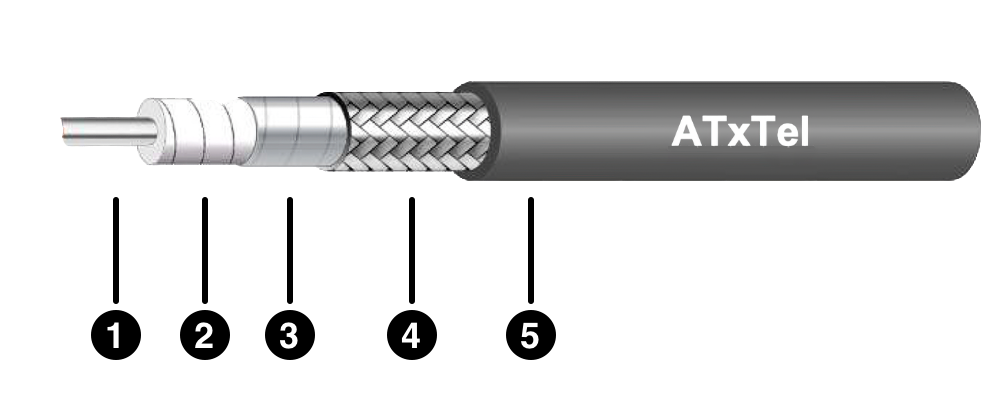

  1. Inner Conductor: silver-plated copper (A760S is multi-core silver-plated copper)

  2. Dielectric: low-density PTFE

  3. Inner Shield: silver-plated copper belt winding

  4. Outer Shield layer: silver-plated copper wire

  5. Outer Sheath: gray FEP

Buy Now

Download
Datasheet

Model#
Outer Diameter (mm)
Operating Frequency (GHz)
Propagation Rate
Amplitude Stability (dB)
Mechanical Phase Stability
Attenuation (dB/100m, Typical Value @25ºC & VSWR=1.0)
18GHz
26.5GHz
40GHz
50GHz
67GHz


A220

2.20

67

80%

± 0.1

±5°

287.1

354

444

503.1

593.1



A300

3.10

50

82%

± 0.1

±5°

207.9

255.4

318.9

360.1




A360

3.60

40

82%

± 0.1

±5°

166.67

204.79

255.69





A400

4.00

40

82%

± 0.1

±5°

151.79

185.01

228.64





A480

4.80

26.5

80%

± 0.1

±5°

106.58

130.85






A500

5.20

26.5

80%

± 0.1

±5°

103.84

127.53






A550

5.60

18

80%

± 0.1

±5°

96.1







A750

7.40

18

80%

± 0.1

±5°

68.48







A760S

7.65

18

80%

± 0.1

±5°

80.86







A800

7.90

18

80%

± 0.1

±5°

66.98







A810

8.10

18

80%

± 0.1

±5°

62.12







A830

8.30

18

80%

± 0.1

±5°

60.63
