LMR Series

DC - 6GHz

Low Loss Coaxial Cable

Additional Features

  • Low loss

  • Excellent shielding performance

  • Excellent durability and flexibility

LA%20Series

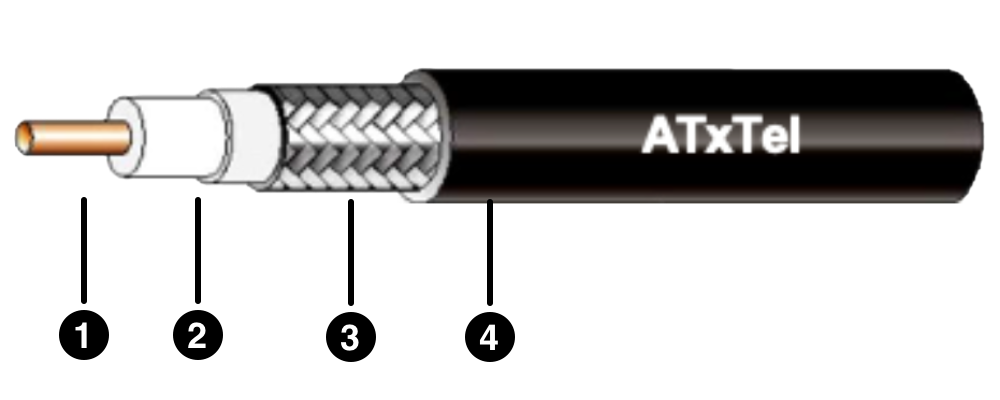

  1. Inner Conductor: Copper Wire

  2. Dielectric: Foam Polyethylene

  3. Outer Conductor: Aluminum + Tinned Copper

  4. Jacket: Black Polyethylene

Buy Now

Download
Datasheet

Model#
Outer Diameter (mm)
Operating Frequency (GHz)
Impedance
(Ohms)
Velocity
Operating Voltage
(Vrms)
Capacitance
(pF/m)
Attenuation (dB/100m, Typical Value @25ºC & VSWR=1.0)
450MHz
900MHz
1.8GHz
3GHz
5GHz
6GHz


LMR195

4.95

6

50

75%

3000

80

0.26

0.36

0.52

0.69

0.9

0.99


LMR240

6.10

6

50

83%

5000

80

0.17

0.25

0.36

0.49

0.66

0.74


LMR300

7.62

6

50

83%

5000

80

0.13

0.19

0.28

0.37

0.51

0.56


LMR400

10.29

6

50

85%

8000

78

0.09

0.13

0.18

0.25

0.33

0.36


LMR600

14.99

6

50

87%

8000

78

0.06

0.08

0.12

0.16

0.22

0.25
