RG Series

DC - 10GHz

Flexible Coaxial Cable
Applied Standard MIL-C-17

Additional Features

  • Low loss

  • Excellent shielding performance

  • Excellent durability

  • Low passive intermodulation (PIM)

  • Light weight

LA%20Series

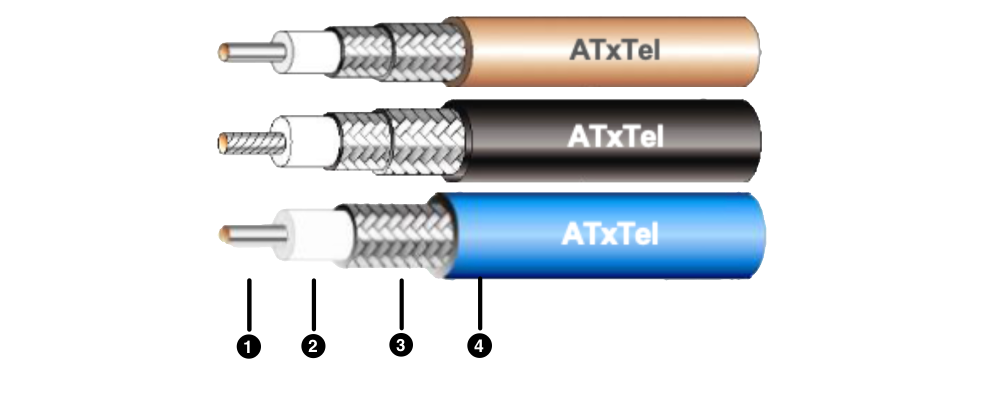

  1. Inner Conductor: Silvered Copper Wire

  2. Dielectric: PTFE

  3. Outer Conductor: Silver Plated Copper Braid

  4. Jacket: FEP

Buy Now

Download
Datasheet

Model#
Outer Diameter (mm)
Operating Frequency (GHz)
Impedance
(Ohms)
Velocity
Operating Voltage
(Vrms)
Capacitance
(pF/m)
Attenuation (dB/100m, Typical Value @25ºC & VSWR=1.0)
100MHz
400MHz
1GHz
3GHz
6GHz
10GHz


RG142

4.95

6

50

70%

1400

96.45

0.13

0.28

0.45

0.83

1.30


RG214

10.80

6

50

66%

3700

101.05

0.07

0.14

0.24

0.47



RG223

5.30

12.4

50

66%

1400

101.05

0.13

0.27

0.44

0.82

1.27


RG316

2.50

6

50

70%

900

96.5


0.58

0.90

1.70

2.87


RG316D

2.90

6

50

70%

1200

96.5


0.58

0.90

1.70

2.95


RG400

4.95

12.4

50

70%

1400

105

0.15

0.30

0.48

0.88

1.36


RG402FEP

4.15

18

50

70%

1900

95


0.39

0.84


1.38


RG402SR

3.58

34

50

70%

1900

95.1



0.38

0.72


1.37


RG405FEP

2.65

18

50

70%

1500

95



0.78

1.35


2.25


RG405SR

2.20

61

50

70%


95.1



0.64

1.26


2.22
