Blocking RF Switch
Exceptional performance with fast switching speeds, low insertion loss, and outstanding port-to-port isolation

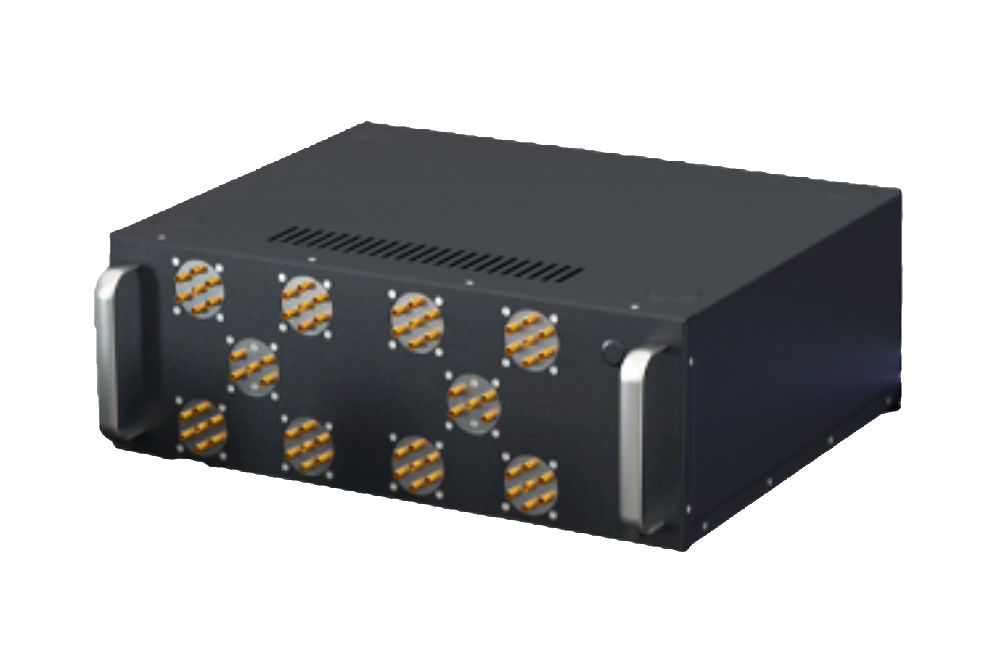

Blocking RF Switch
ATxTel’s Blocking RF switch is specifically designed for precision RF testing, sensitive receiver protection, and high-frequency measurement environments where maintaining signal integrity is crucial. This blocking RF switch delivers exceptional performance with fast switching speeds, low insertion loss, and outstanding port-to-port isolation. These key features ensure reliable and consistent operation, making the ATxTel Blocking RF switch an ideal choice for a variety of demanding applications.
In automated test systems, the switch's quick response time enhances efficiency and precision in testing procedures, enabling engineers to effectively validate and troubleshoot electronic components. In wireless validation labs, the low insertion loss minimizes signal degradation, ensuring accurate measurements and assessments of the wireless devices being tested. Additionally, the impressive port-to-port isolation prevents unwanted interference, which is essential in aerospace applications where signal integrity directly impacts safety and performance. Lastly, in high-volume production environments, its repeatable performance increases throughput and reduces the risk of errors, contributing to overall operational efficiency.
Applications
Cellular and Wi-Fi testing setup
Large-scale antenna testing
Aerospace and Defense Testing
Multi-DUT production testing
Signal monitoring and network simulation
R&D and prototype validation
Signal distribution in labs
Features
Scalable and flexible channel topology
Excellent RF performance and stability
Compact integration options for portability
Electromechanical Blocking MxN Switches (M 1:N Connection)
DC-18GHz
DC-40GHz
DC-67GHz
RF Interface (Female)
SMA
2.92mm
1.85mm
Impedance (Ω)
50
50
50
Insertion Loss (dB Max)
0.5
1
2
Typical Isolation (dB Min)
70
50
50
Life Cycle
3,000,000
3,000,000
1,000,000
Typical Switching Time (ms)
25
25
25
Control Terminals
USB/LAN(RJ45)
USB/LAN(RJ45)
USB/LAN(RJ45)
Standard Configurations
2x4 Switch
ATX-LM-SWEM-2X4-1X2FS-C18
ATX-LM-SWEM-2X4-1X2F29-C40
ATX-LM-SWEM-2X4-1X2F18-C67
2x8 Switch
ATX-LM-SWEM-2X8-1X4FS-C18
ATX-LM-SWEM-2X8-1X4FS-C40
ATX-LM-SWEM-2X8-1X4FS-C67
2x12 Switch
ATX-LM-SWEM-2X12-1X6FS-C18
ATX-LM-SWEM-2X12-1X6F29-C40
ATX-LM-SWEM-2X12-1X6F18-C67
4x8 Switch
ATX-LM-SWEM-4X8-1X2FS-C18
ATX-LM-SWEM-4X8-1X2FS-C40
ATX-LM-SWEM-4X8-1X2FS-C67
4x16 Switch
ATX-LM-SWEM-4X16-1X4FS-C18
ATX-LM-SWEM-4X16-1X4F29-C40
ATX-LM-SWEM-4X16-1X4F18-C67
Solid State Blocking MxN Switches (M 1:N Connection)
DC-8GHz
DC-9GHz
DC-18GHz
RF Interface (Female)
SMA
SMA
SMA
Impedance (Ω)
50
50
50
Insertion Loss (dB Max)
3
3
6
Typical Isolation (dB Min)
60
60
50
Typical Switching Time (ms)
0.3
0.3
0.3
Control Terminals
LAN(RJ45)
LAN(RJ45)
LAN(RJ45)
Standard Configurations
4x8 Switch
ATX-MI-SWSS-4X8-1X2SF-C8
ATX-MI-SWSS-4X8-1X2SF-C9
ATX-MI-SWSS-4X8-1X2SF-C18
4x16 Switch
ATX-MI-SWSS-4X16-1X4SF-C8
ATX-MI-SWSS-4X16-1X4SF-C9
ATX-MI-SWSS-4X16-1X4SF-C18
