Use Case Example
Custom-Built Test Systems for Wearable IoT performance test under various enviromental conditions
Wi-Fi Performance Test for smart glasses over a range of temperature
A turnkey testbed that combines a Wi-Fi emulator, active RF components, RF temperature chambers, and custom automated test software.
Test Requirements
• Wi-Fi performance testing, i. e. RvR vs. channel, band, temperature, etc (must support Wi-Fi 5, 6, 6E and 7)

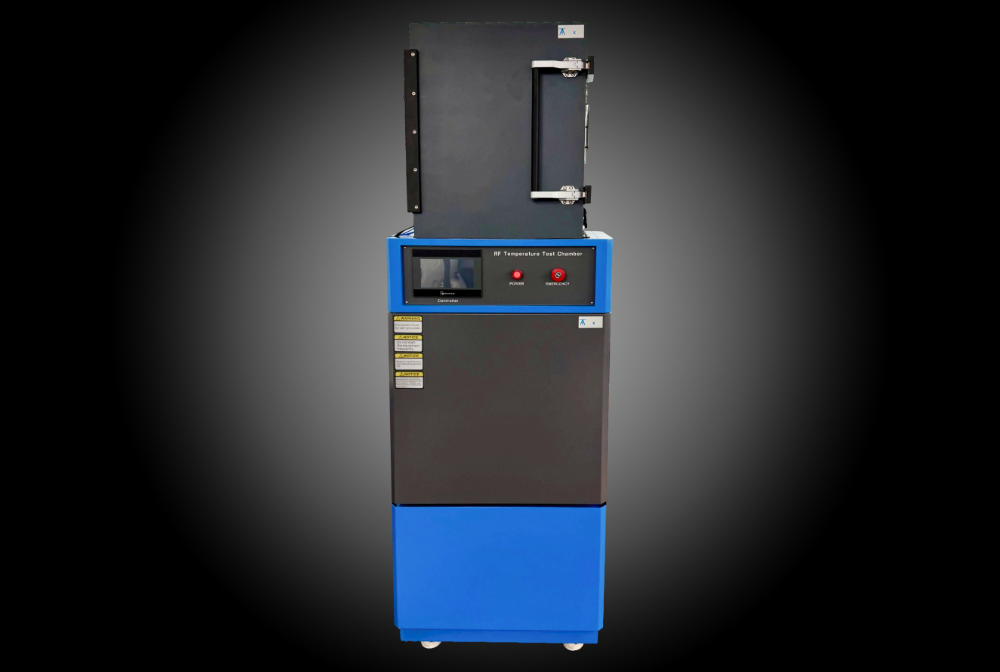

• Thermal chamber integration for Wi-Fi performance tests
• SW automation for Android and iOS devices
• Customizable and auto-generated test result report generation
• Independent power management between different WiFi connections
• Option to include 2D or 3D turntable for RvRvO and RvOvR performance tests
• Option to support for future GPS and cellular testing
Built to scale with your evolving needs, the system is fully upgradeable with optional modules, including a thermal chamber, 2D/3D turntable, and support for GPS and cellular testing.
• Wi-Fi performance testing, i. e. RvR vs. channel, band, temperature, etc (must support Wi-Fi 5, 6, 6E and 7)
• Thermal chamber integration for Wi-Fi performance tests
• SW automation for Android and iOS devices
• Customizable and auto-generated test result report generation
• Independent power management between different WiFi connections
• Option to include 2D or 3D turntable for RvRvO and RvOvR performance tests
• Option to support for future GPS and cellular testing
Built to scale with your evolving needs, the system is fully upgradeable with optional modules, including a thermal chamber, 2D/3D turntable, and support for GPS and cellular testing.
Test Setup
Solution
An all-in-one, turnkey system designed for comprehensive Wi-Fi performance testing. Featuring a robust, multi-layer user interface, it enables one-click test execution while giving users full access to advanced configurations when needed—streamlining workflows without sacrificing control.

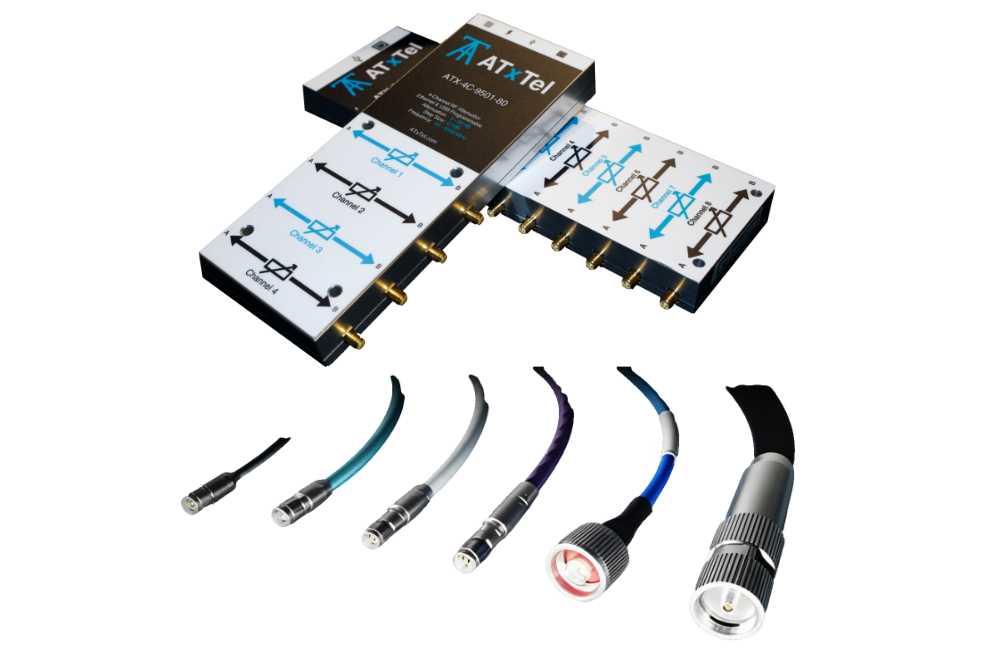

System comes fully integrated and pre-cabled with all essential RF components, including internal antennas, programmable RF attenuators, and high-isolation shieldin —removing the need for complex setup or external configuration. Designed with Wi-Fi testing in mind, these compact testbeds arrive ready to evaluate throughput, roaming performance, band steering, latency, and signal stability—right out of the box. ATxTel delivers a controlled, interference-free environment for fast, repeatable, and automated wireless testing with optimizing the diffierenet device configurations and behaviors,

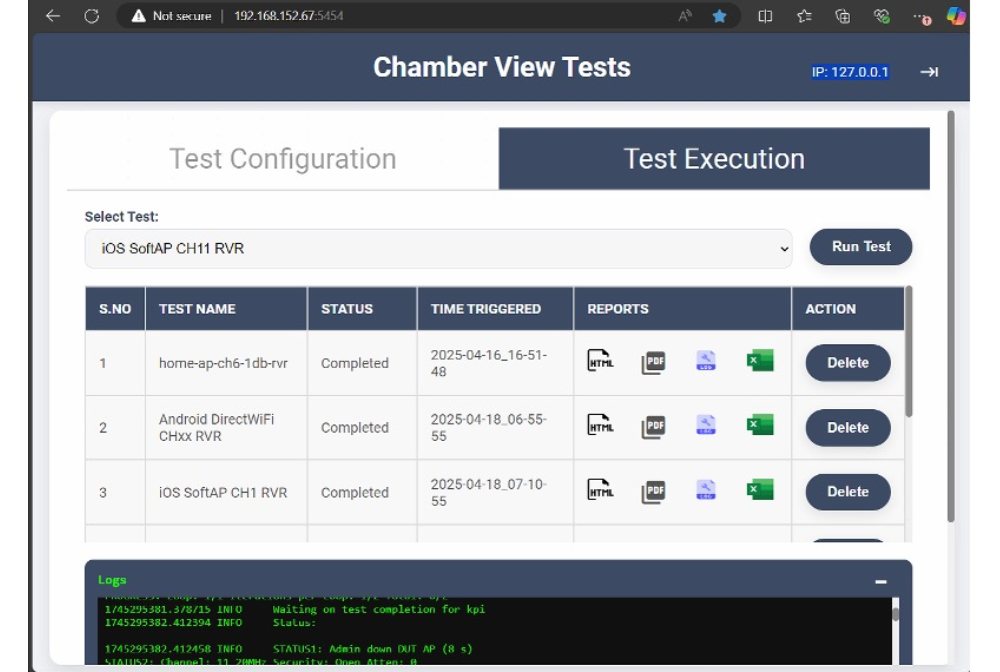

Automated Test Software
Virtual Station Configuration Screen
Layer 3 (Ethernet, UDP, TCP) Connections
Layer 3 Create/Modify Screen
