Lib IPX7 IPX8 Water Immersion Test Equipment
Description
IPX7 X8 water immersion tank is used to test to test the water tightness of enclosures of automotive parts, outdoor lamps and electronics parts.
IPX7 IPX8 immersion chamber built with a water re-circulation system that reduced water use and a series of water pipes. Automatic water supply ensures adequate supply of water and automatic testing.
IPX7 and IPX8 functions on one test chamber,make testing convenient and cost-effective.
Advantage
● Fixing device for safety

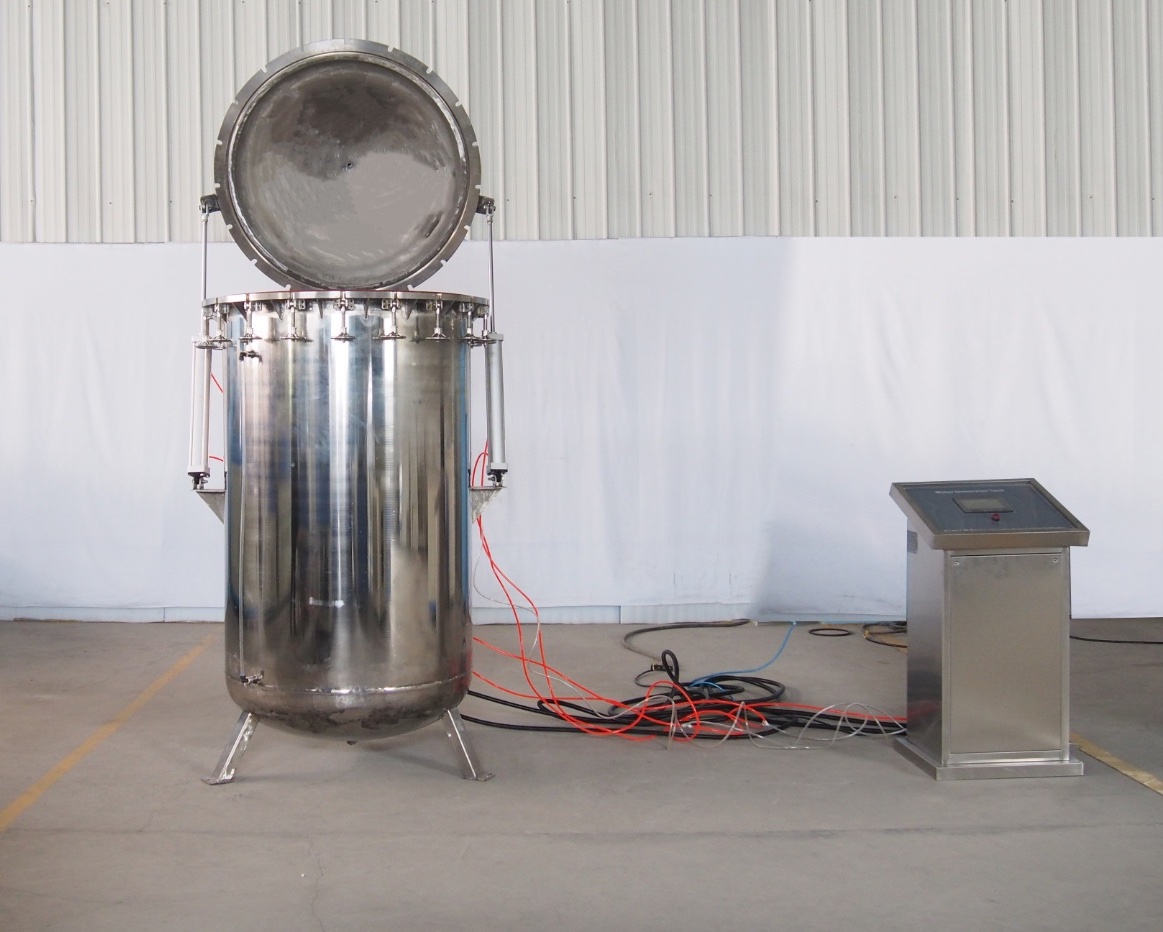

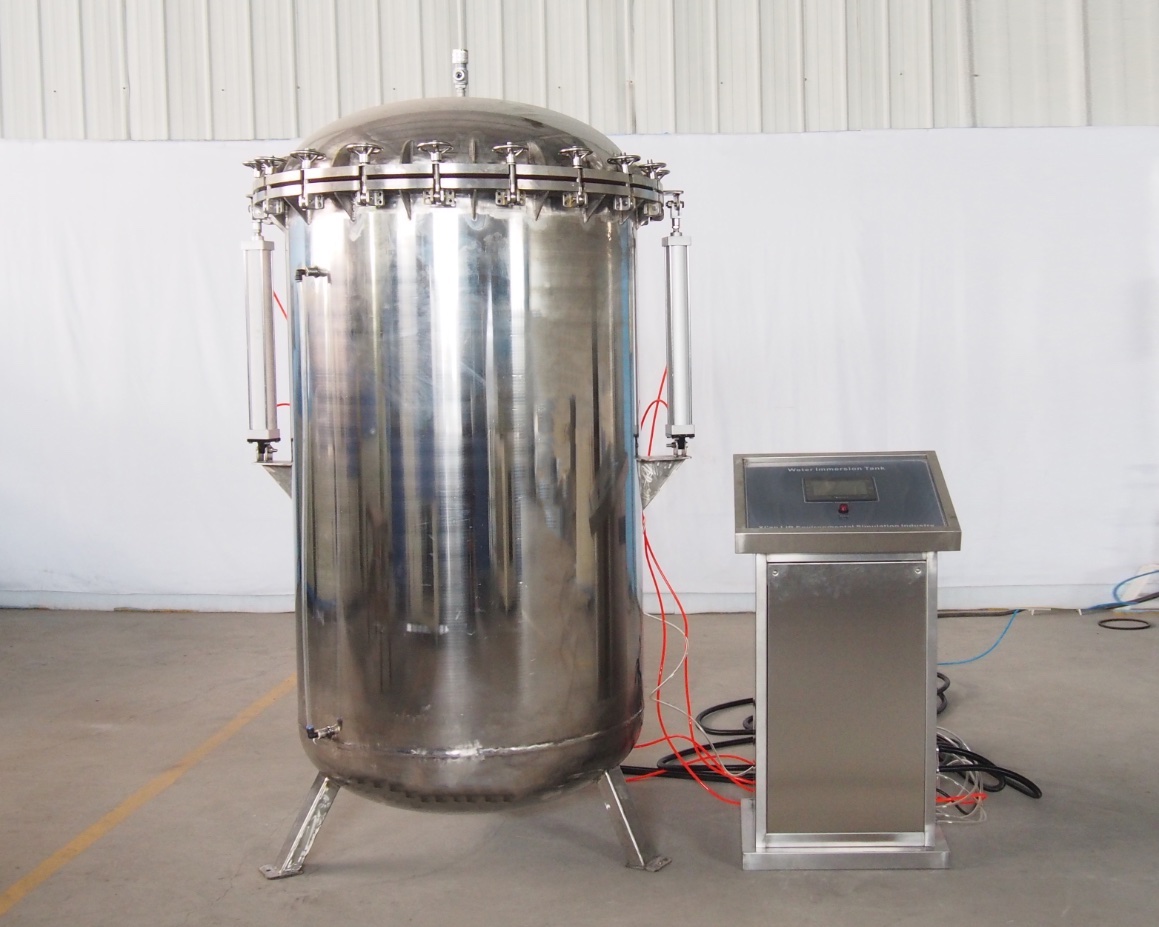

The tank of IPX78 is of cylindrical design, and the bottom must be supported by a tripod. Designed a Z-shaped foot with three M8 holes, which has good grip and requires user to fix the equipment with screws to ensure safety.
● Sample holder
We have designed a height-adjustable sample holder to prevent the sample from floating during the immersion test.
● Pressure limiting protection
An independent manual setting pressure limiting device is specially designed to ensure effective control of the pressure in the tank.
Specification
IPX7 X8 water immersion tank is used to test to test the water tightness of enclosures of automotive parts, outdoor lamps and electronics parts.
IPX7 IPX8 immersion chamber built with a water re-circulation system that reduced water use and a series of water pipes. Automatic water supply ensures adequate supply of water and automatic testing.
IPX7 and IPX8 functions on one test chamber,make testing convenient and cost-effective.
Advantage
● Fixing device for safety
The tank of IPX78 is of cylindrical design, and the bottom must be supported by a tripod. Designed a Z-shaped foot with three M8 holes, which has good grip and requires user to fix the equipment with screws to ensure safety.
● Sample holder
We have designed a height-adjustable sample holder to prevent the sample from floating during the immersion test.
● Pressure limiting protection
An independent manual setting pressure limiting device is specially designed to ensure effective control of the pressure in the tank.
Specification
|
Model |
R78-600 |
|
Internal Dimension (mm) |
Diameter 600mm * Height 1500 mm |
|
Overall Dimension (mm) |
Diameter 800mm * Height 1800 mm |
|
Pressure |
50m water depth pressure |
|
Open mode |
Pneumatic lid |
|
Material |
A3 steel plate, wall thickness 15mm |
|
Controller |
Programmable color display touch screen controller |
|
Water Supply System |
Storage water tank, Automatic water supply |
|
Power |
AC380V 50Hz |
