Description

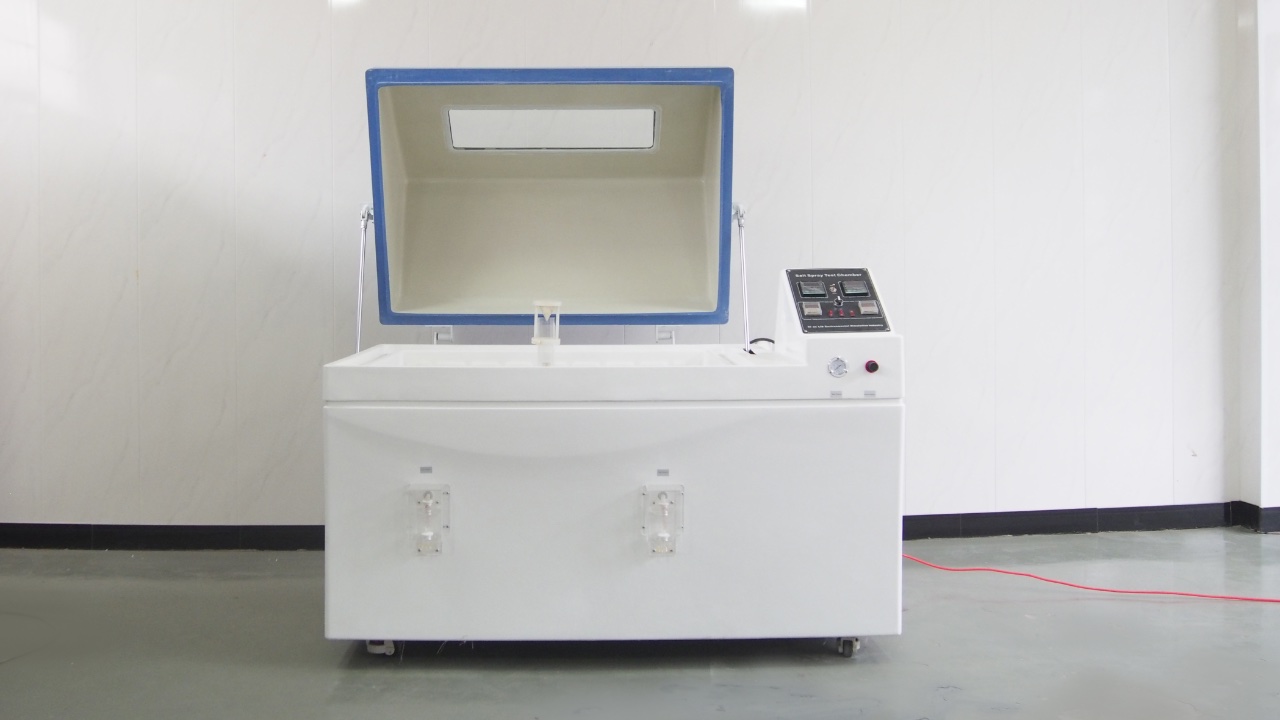

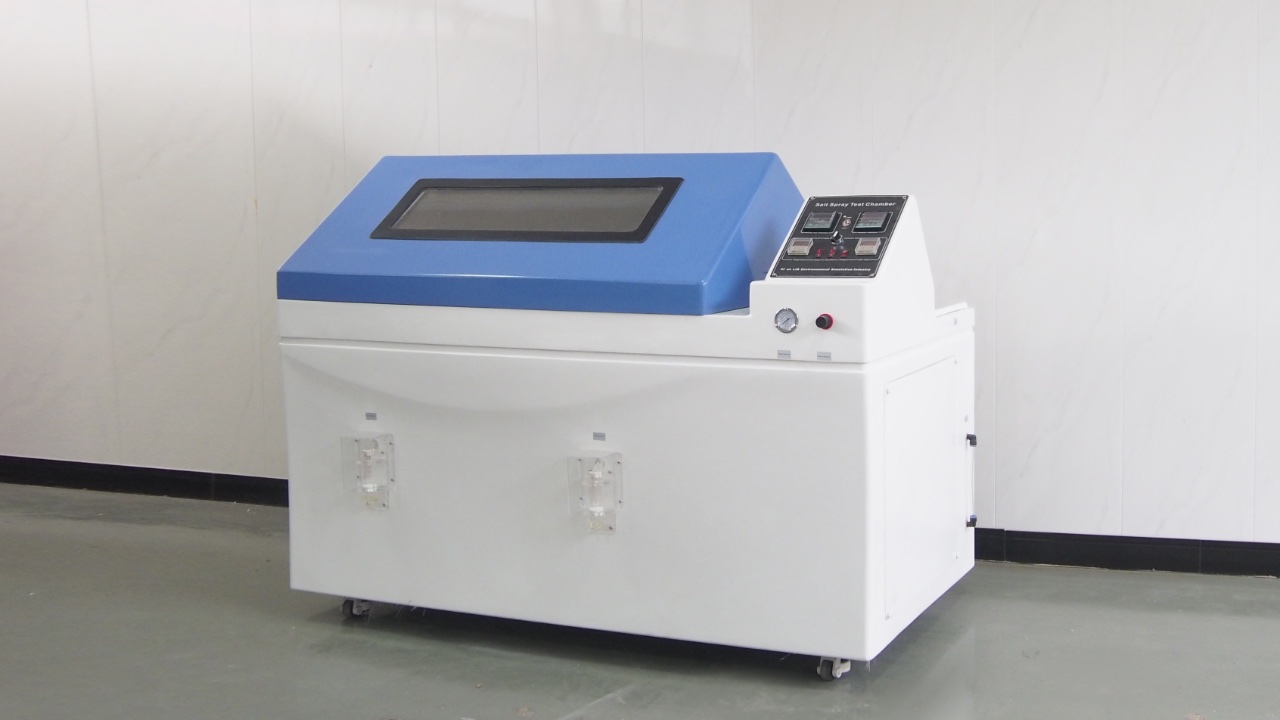

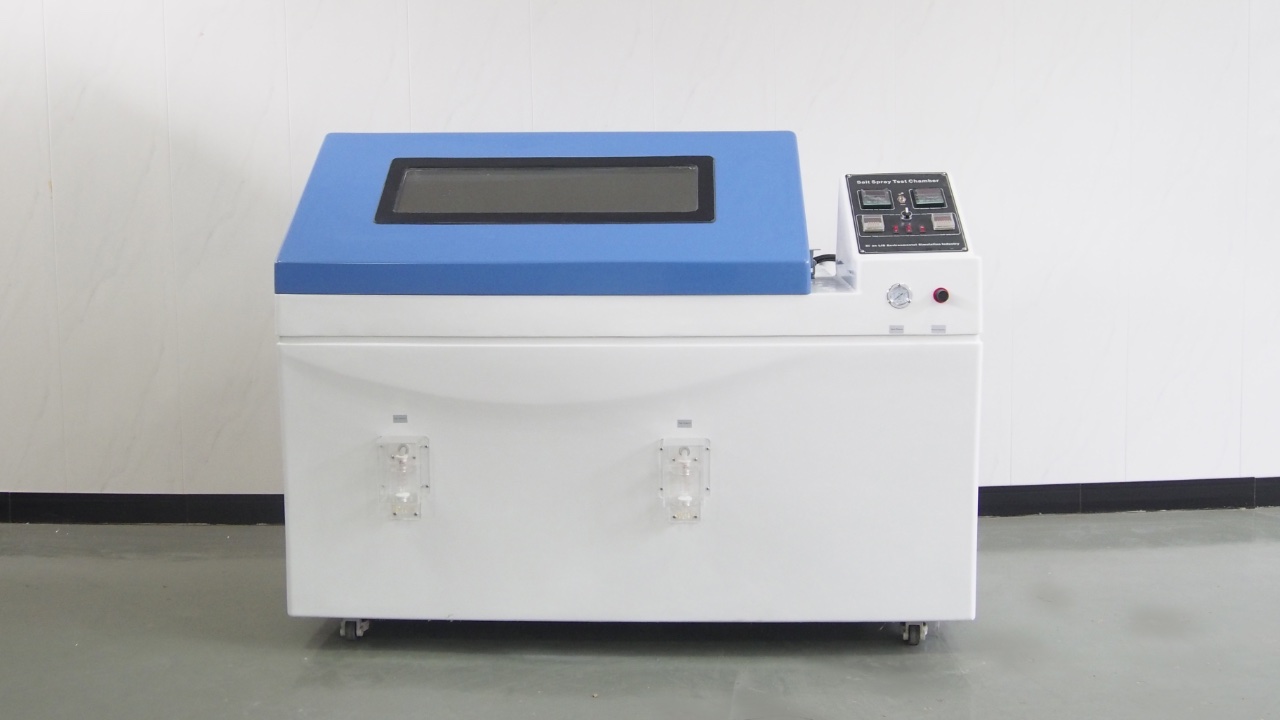

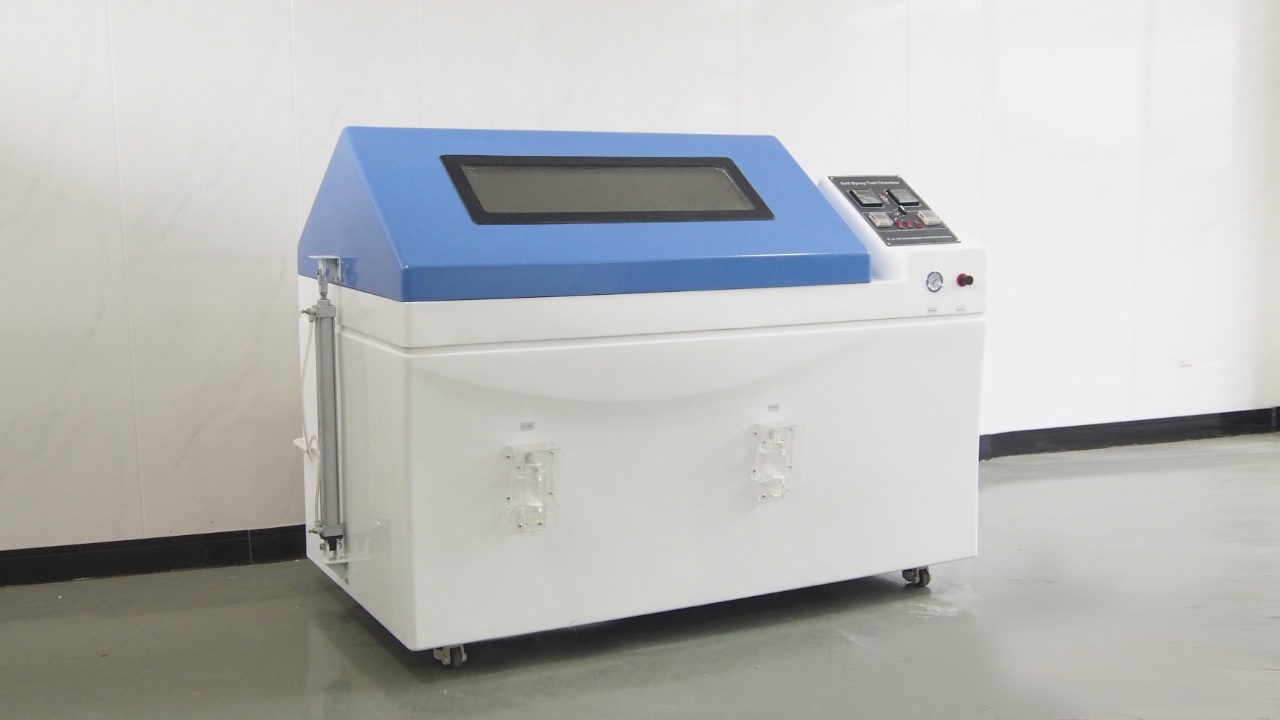

Salt spray test chamber is used to test the anti-corrosion quality of all the materials surfaces of painting, coating, electroplating in condition of salt spray environment. Basic salt spray test chambers meet ASTM, ISO, IEC and other International Standards test methods, capacity available in 108L, 320L, 410L, 780L, 1000L, 1600L capacity.
Reliable performance, quick delivery and good service make this product very competitive.
Advantage
● Corrosion-resistant and long-life materials
Material is glass fiber reinforced plastics which has strong corrosion resistance, one-time forming, Reinforced design, long service life and high temperature resistance
● Spray more evenly
Salt water stirring device makes the salt water more uniform
● Environmentally friendly heat insulation treatment
The insulation layer at the bottom of the test chamber is made of clay board, which can efficiently heat insulation and is environmentally friendly.
● Salt solution mixing system
A salt water stirring system is installed in the salt water tank, which can not only stir the salt water to maintain uniformity, but also heat the salt water to stabilize the pH value.
Specification
|
Model |
S-150 |
S-250 |
S-750 |
|
Internal dimensions (mm) |
590*470*400 |
1000*640*500 |
1100*750*500 |
|
Overall dimensions (mm) |
1460*760*1140 |
1850*960*1350 |
1950*1030*1350 |
|
Interior Volume (L) |
110 |
320 |
410 |
|
Temperature Range |
Ambient ～ +60 ℃ |
||
|
Temperature Fluctuation |
± 0.5 ℃ |
||
|
Temperature Deviation |
± 2.0 ℃ |
||
|
Humidity Range |
95% ~ 98% RH |
||
|
Salt Fog Deposition |
1～2ml / 80cm2 · h |
||
|
Spray Type |
Continuous / Periodic |
||
|
Heating Element |
Nichrome heater |
||
|
Salt Fog Collected |
Fog collector and fog measure cylinder |
||
|
Air Preheating |
Saturated air barrel (31Liter) |
||
|
Spraying System |
Atomizer tower and Spray nozzles |
||
|
Sealing |
Hydrostatic hood seal |
||
|
Controller |
PID
controller |
||
|
Temperature Sensor |
PT100Ω / MV A-class |
||
|
Safety Device |
Humidifier Dry-combustion Protection;
Over-temperature Protection; Over-current Protection; Water Shortage Protection;
Earth leakage Protection |
||
|
Material |
Glass fiber reinforced plastics |
||
|
Lid Material |
Transparent
resin |
||
|
6 round bars and 5 V-shaped grooves |
|||
|
Power Supply |
380V 50Hz |
||
|
Maximum Noise |
65 dBA |
||
|
Standard |
ASTMB117, ISO9227 |
||
