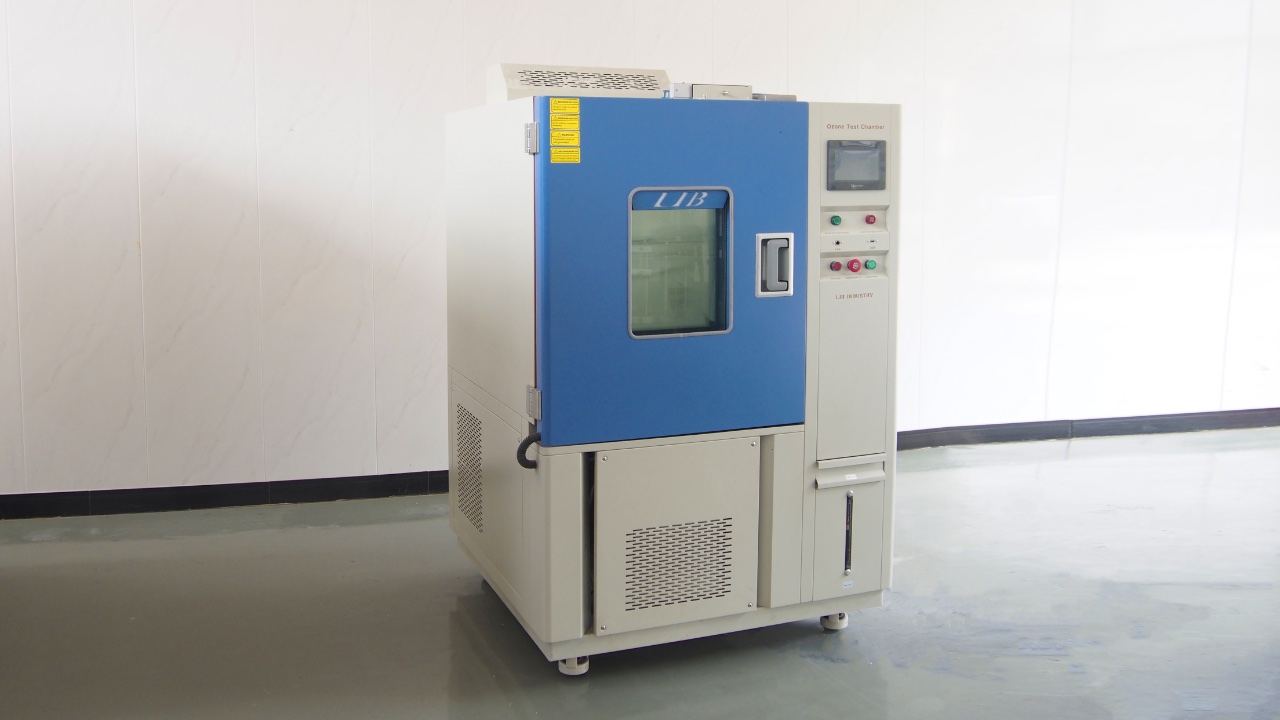

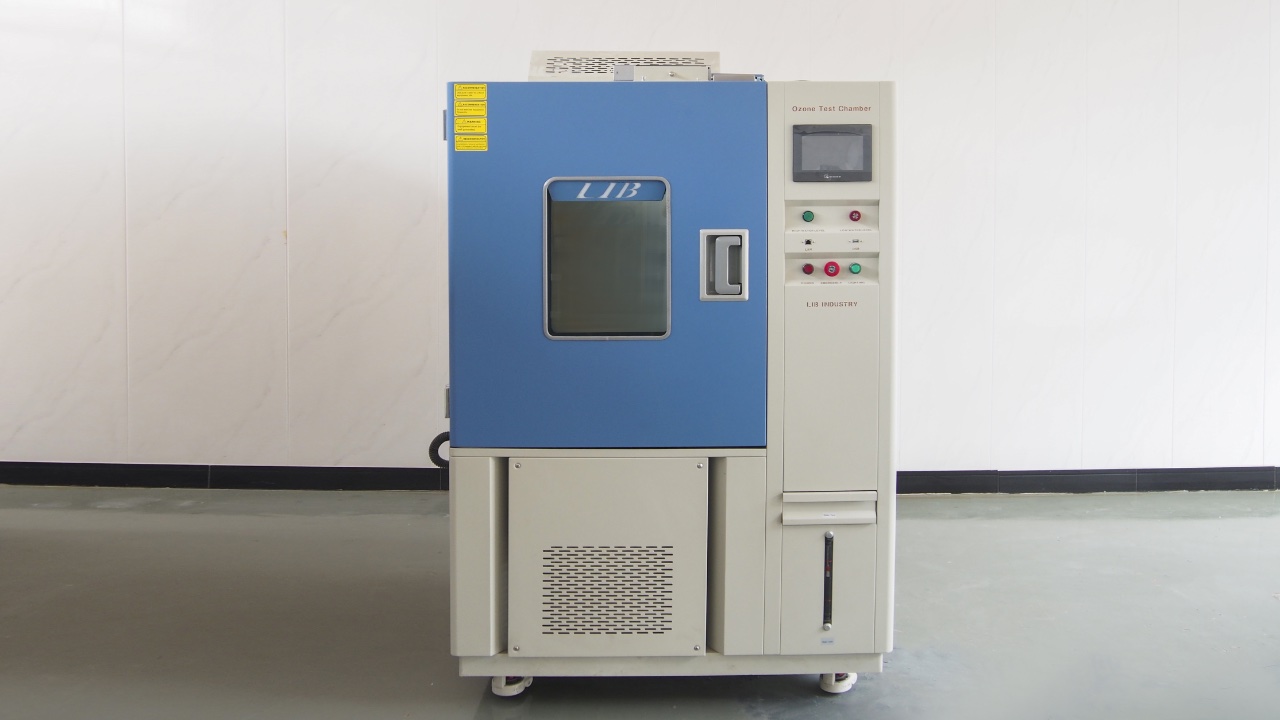

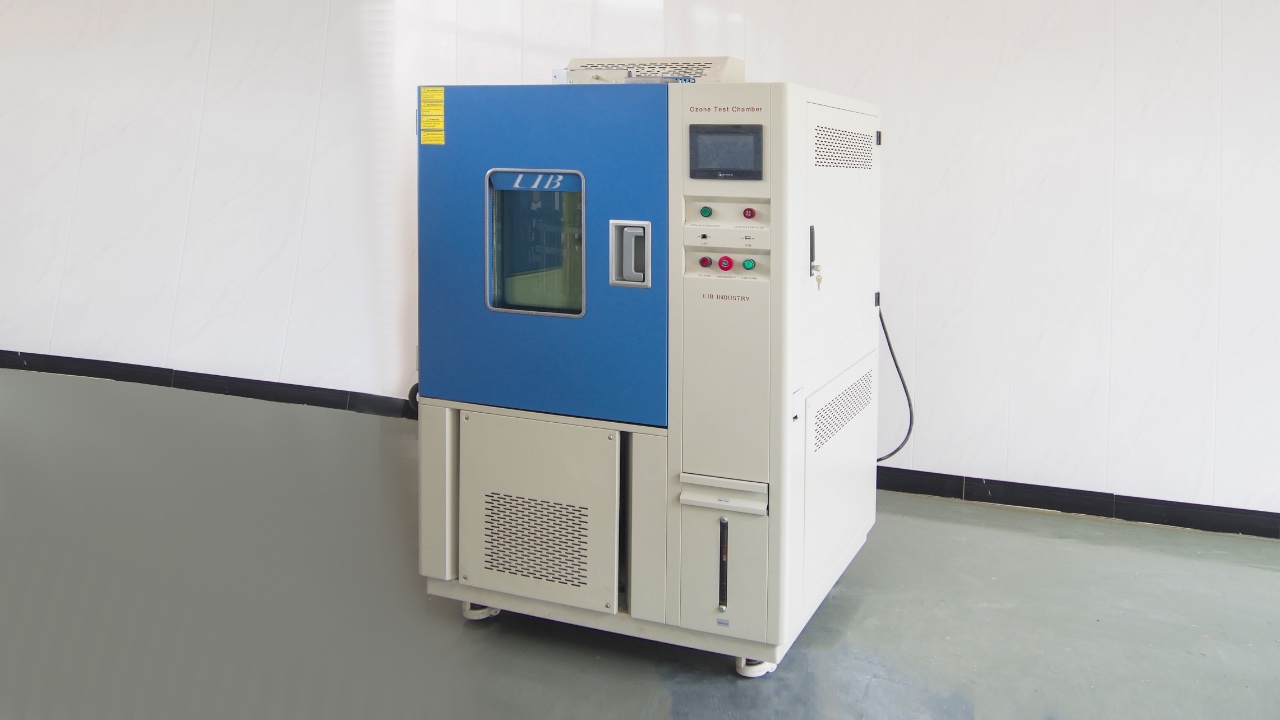

Description
Ozone resistance test chambers test elastomers (rubber) in the condition of ozone exposure,to simulate and measure rubber aging by means of ozone within a few days.

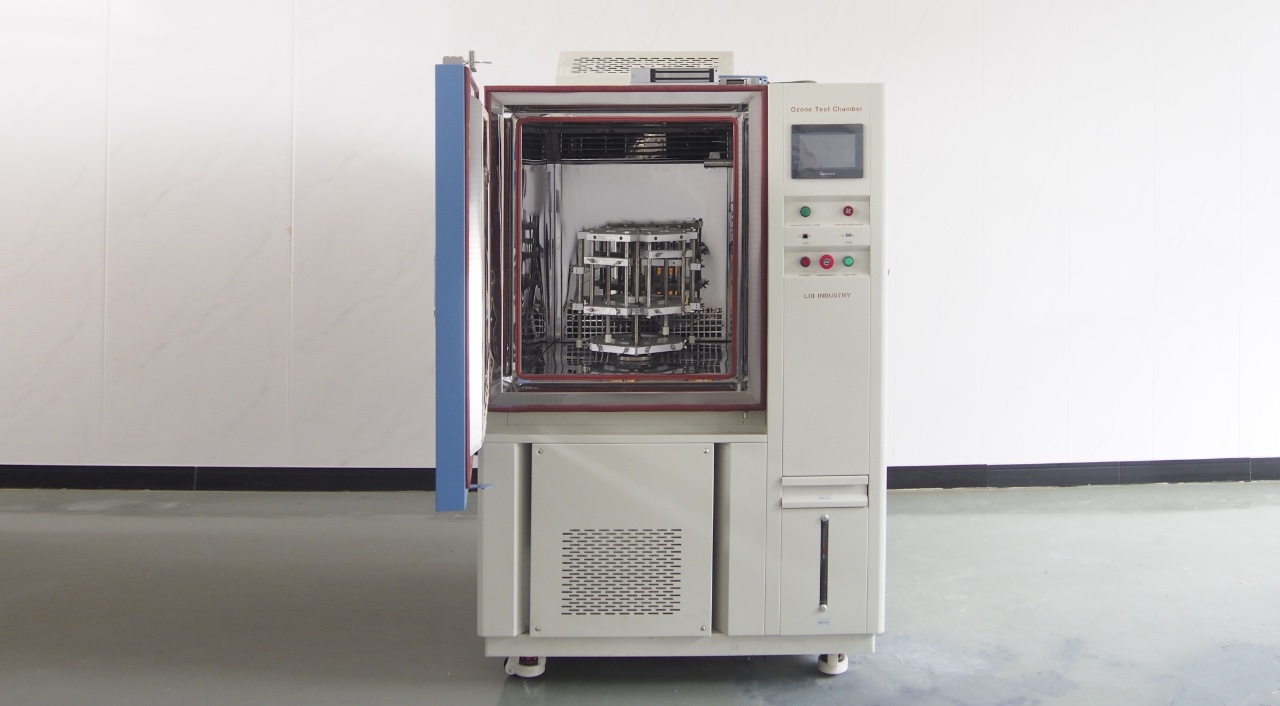

Structure: Built with dynamic and static sample holders, cooling system, humidity system, air circulation, ozone generating unit,ozone exhaust device and control system.
Standard: ASTM D1149, IEX6006811-403, ISO1431, ASTM D1171.
Operate: All models are upgrade to programmable controller and Ethernet access that provides simple operation and control.
Advantage
● Automatic control and supply ozone gas
Use silent discharge type ozone generator, gas automatic generated
It has low noise and high purity features.
● Safe ozone treatment system
The ozone exhaust device is equipped with an activated carbon to absorb ozone to make workplace clean and safe.
Exhaust the gas after the test, automatic controlled on controller
Specification
|
Model |
OC-250 |
OC-500 |
OC-800 |
OC-010 |
|
Internal Dimension (mm) |
600*600*700 |
700*800*900 |
800*1000*1000 |
1000*1000*1000 |
|
Overall Dimension (mm) |
960*1150*1860 |
1200*1340*2020 |
1300*1540*2120 |
1500*1540*2140 |
|
Interior Volume (L) |
250 |
500 |
800 |
1000 |
|
Temperature Range |
0℃ ～ +100 ℃ |
|||
|
Temperature Fluctuation |
± 0.5 ℃ |
|||
|
Temperature Deviation |
± 2.0 ℃ |
|||
|
Humidity Range |
30% ~ 98% RH |
|||
|
Humidity Deviation |
± 2.5% RH |
|||
|
Cooling Rate |
Ambient ~ 0℃ within 20 min |
|||
|
Ozone
Concentration |
1～1000PPHM |
|||
|
Sample
Holder Rotate Speed |
0~10 r/min |
|||
|
Airflow
Rate |
0 ~ 60L/min |
|||
|
Clamps
Tensile Stretch |
5%～35% |
|||
|
Cooling system |
Mechanical compression refrigeration
system |
|||
|
Refrigerating unit |
French TECUMSEH compressor |
|||
|
Heating Element |
Nichrome heater |
|||
|
Controller |
Programmable color LCD touch screen controller,Ethernet connection,
PC Link |
|||
|
Water supply system |
Automatic water supply,Water
purification system |
|||
|
Humidifier |
External isolation, stainless steel surface evaporation
humidifier |
|||
|
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV
A-class |
|||
|
Humidity Sensor |
Dry and wet bulb sensor |
|||
|
Gas Sensor |
Ozone gas sensor |
|||
|
Ozone Generator |
Silent discharge type ozone generator |
|||
|
Air Circulation |
Centrifugal wind fan |
|||
|
Sample Holder |
Static + dynamic combined sample holder |
|||
|
Exterior Material |
Steel Plate with protective coating |
|||
|
Interior Material |
||||
|
Thermal Insulation |
Polyurethane foam and insulation
cotton |
|||
|
Observation Window |
Interior lighting, double-layer thermo stability silicone rubber
sealing |
|||
|
Power Supply |
380V 50Hz |
|||
|
Standard |
ISO1431;ASTM
1149；IEC 60903 ;IEC60811-403;JIS K6259;ASTM D1171 |
|||
|
Maximum Noise |
65 dBA |
|||
