Description

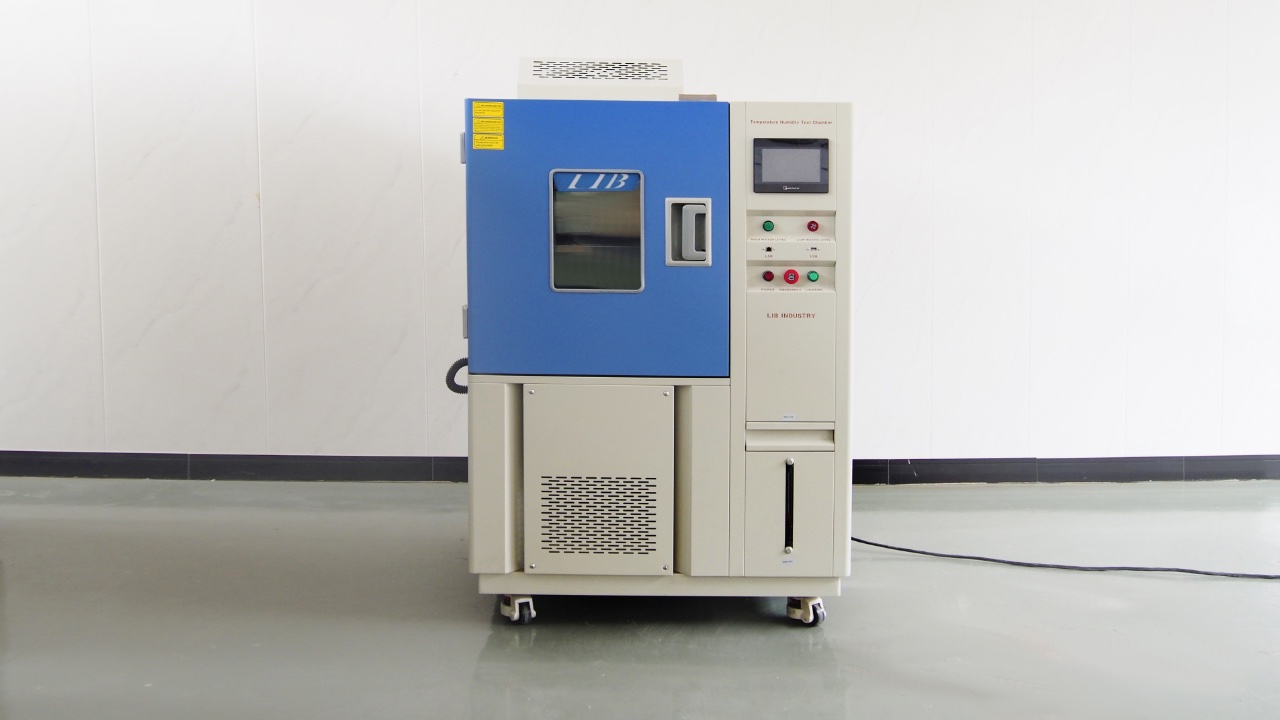

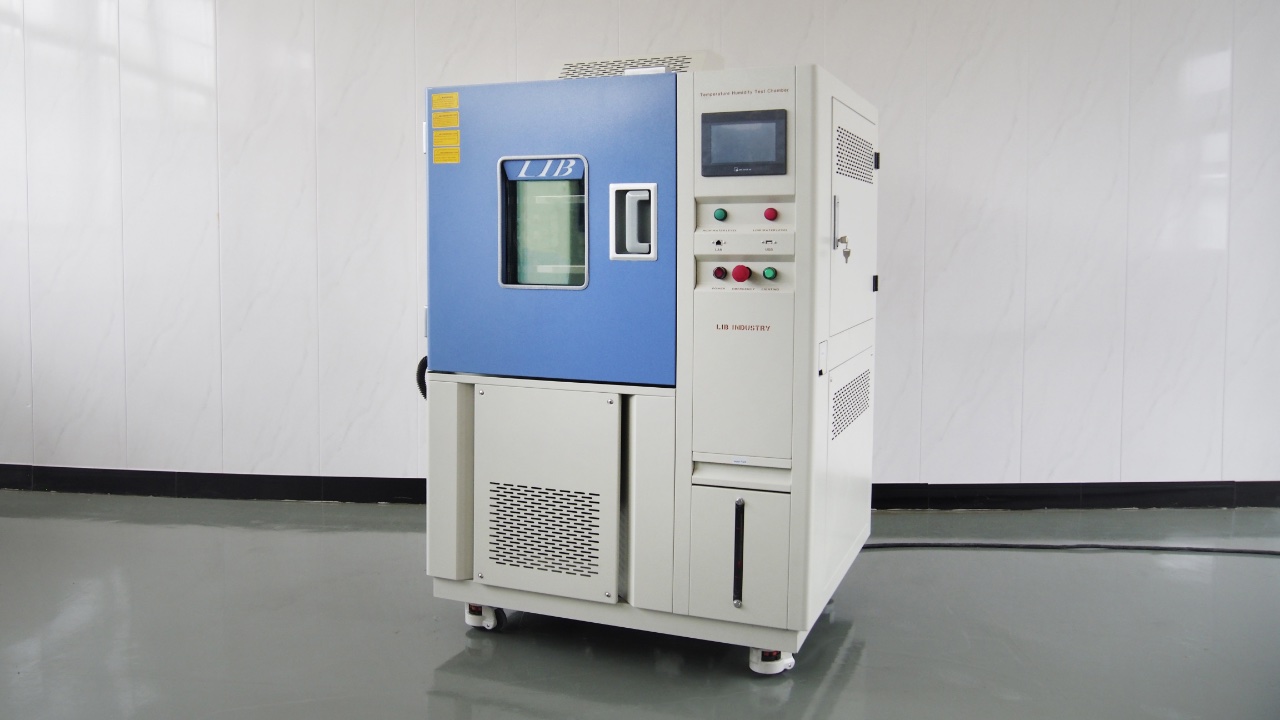

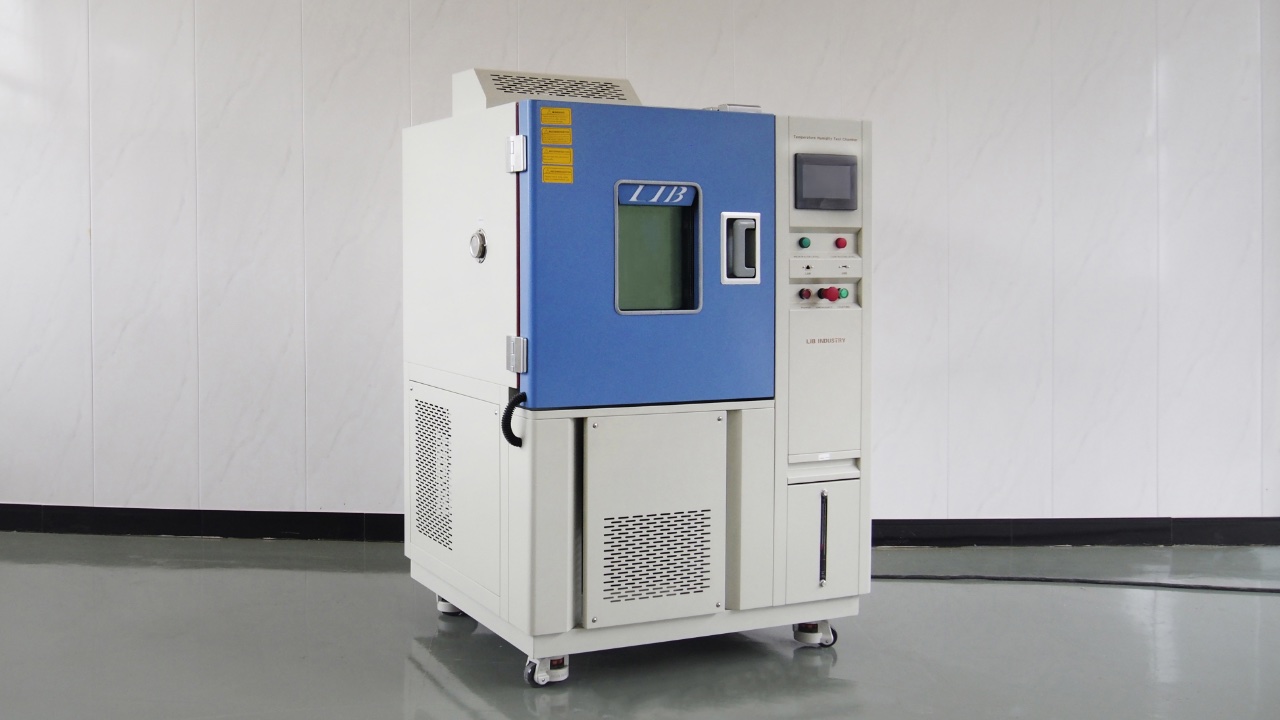

Supply a range of temperature and humidity test chambers to meet different environmental test conditions. Our climate and humidity test chambers are available in a variety of sizes and configurations, ranging in size from 50 liter to 3000 liter, including benchtop, floor type and walk-in. Floor types have more than 26 models to address various requirements.
Applications include temperature and humidity test, cold resistance test, thermal cycle test, ultra low temperature test, high temperature test, storage condition, and calibration function.
Advantages
● Full Climate
Low temperature, high temperature, low humidity and high humidity environmental testing.
● Network communication
The source code of the LIB control system can be opened to customers, which can match the operating software or connect to the lab WEB system.
● Multi-language controller display
Support multiple languages include English, Chinese, Russian, Korean, German, French, Polish, Spanish, Turkish, and Romanian
● Save water
The automatic water inlet system has realized water circulation and water resources saving, and also realized automated testing.
● Steady cooling
The compressor of the LIB test chamber can be turned on at 150°C. We specially designed a refrigeration bypass to prevent the compressor damage caused by the excessively high refrigerant temperature in the initial stage of cooling, which greatly improves the stability of the cooling.
● Remote communication
Standard network port and USB interface are used for computer remote control and download data (CSV and excel format) and view test run music. Optional wireless wifi control and mobile phone SMS alarm.
Specification
Model |
TH-100 |
TH-225 |
TH-500 |
TH-800 |
TH-1000 |
Internal Dimension (mm) |
400*500*500 |
500*600*750 |
700*800*900 |
800*1000*1000 |
1000*1000*1000 |
Overall Dimension (mm) |
900*1050*1620 |
1000*1140*1870 |
1200*1340*2020 |
1300*1540*2120 |
1500*1540*2140 |
Interior Volume |
100L |
225L |
500L |
800L |
1000L |
Heat load |
1000W |
||||
Temperature Range |
A : -20℃ ~ +150 ℃ B : -40℃ ~ +150 ℃ C: -70℃ ~ +150 ℃ |
||||
Temperature Fluctuation |
± 0.5 ℃ |
||||
Temperature Deviation |
± 2.0 ℃ |
||||
Humidity Range |
20% ~ 98% RH |
||||
Humidity Deviation |
± 2.5% RH |
||||
Cooling Rate |
1 ℃ / min |
||||
Heating Rate |
3 ℃ / min |
||||
Cooling system |
Mechanical compression refrigeration
system |
||||
Refrigerating unit |
French TECUMSEH compressor |
||||
Heating Element |
Nichrome heater |
||||
Controller |
Programmable color LCD touch screen controller,Ethernet connection, PC
Link |
||||
Water supply system |
Automatic water supply,Water
purification system |
||||
Humidifier |
External isolation, stainless steel surface evaporation
humidifier |
||||
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV
A-class |
||||
Humidity Sensor |
Dry and wet bulb sensor |
||||
Safety Device |
Humidifier dry-combustion protection;
over-temperature protection; over-current protection; Refrigerant
high-pressure protection; Water shortage protection; Earth leakage protection |
||||
Exterior Material |
Steel Plate with protective coating |
||||
Interior Material |
|||||
Thermal Insulation |
Polyurethane foam and insulation cotton |
||||
Observation Window |
Interior lighting, double-layer thermo stability silicone rubber
sealing |
||||
1 Cable hole (Φ 50,) with plug; 2
shelves |
|||||
Power Supply |
380V 50Hz |
||||
Maximum Noise |
65 dBA |
