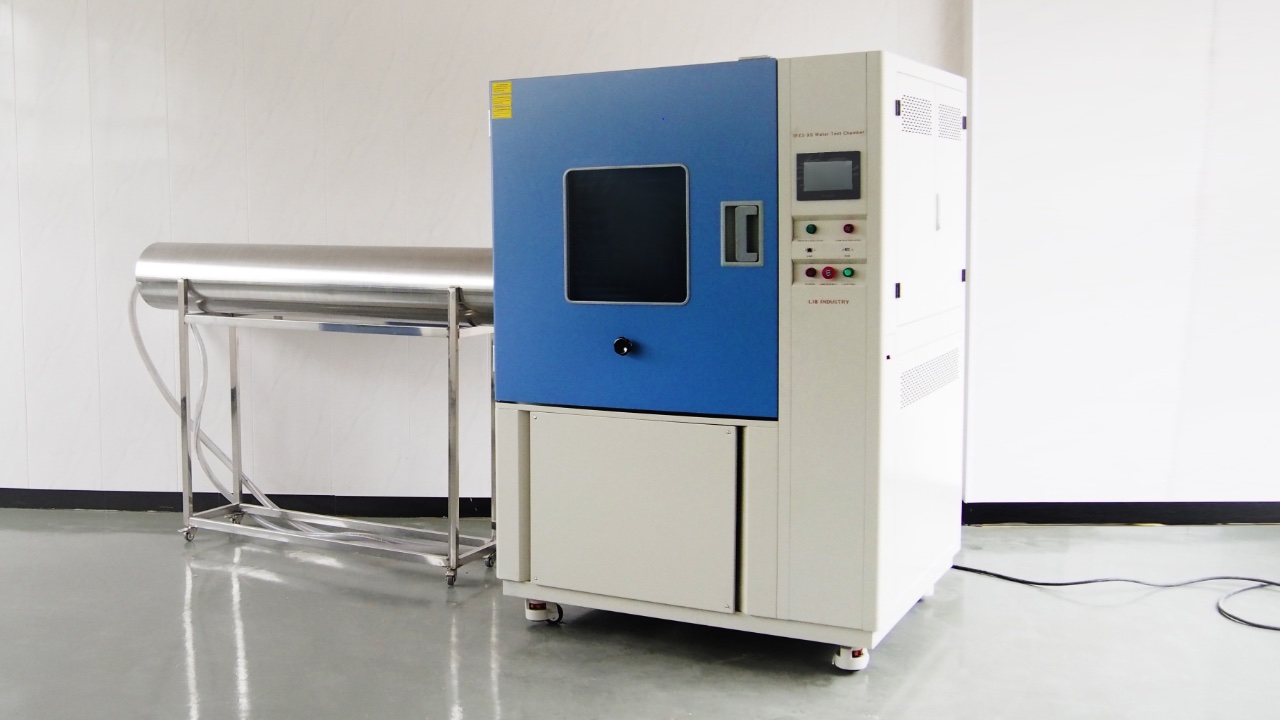

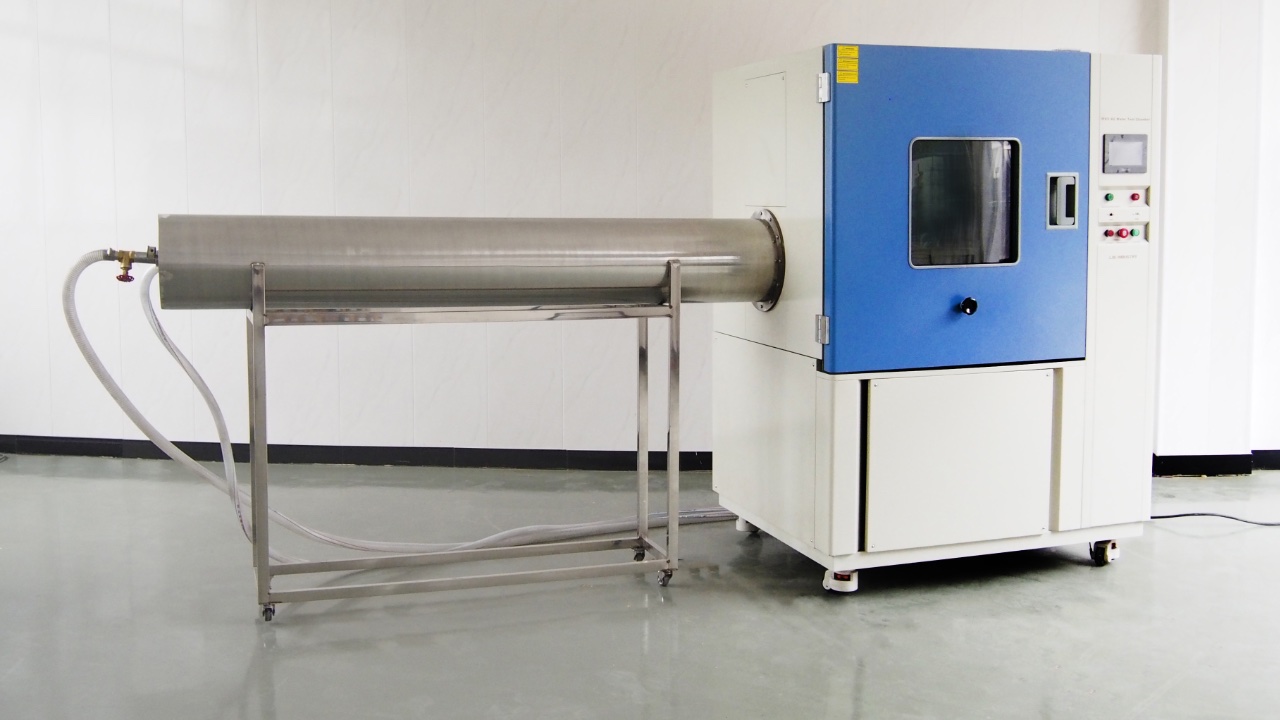

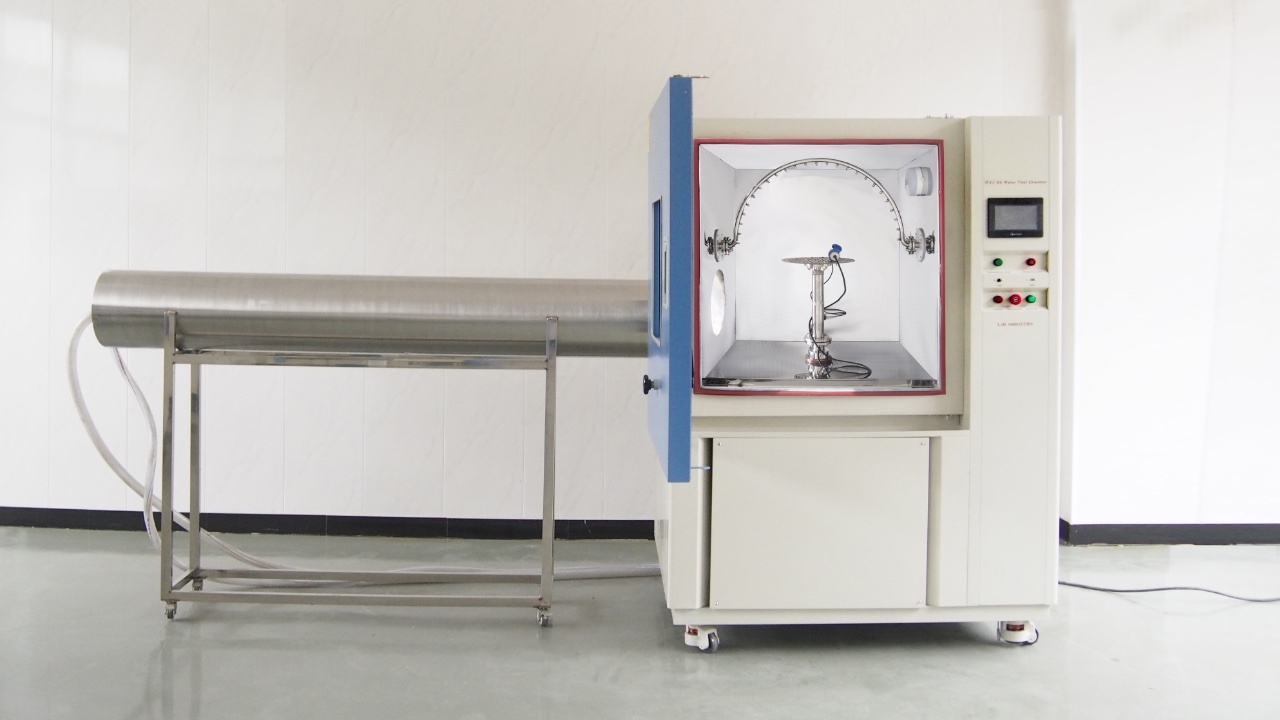

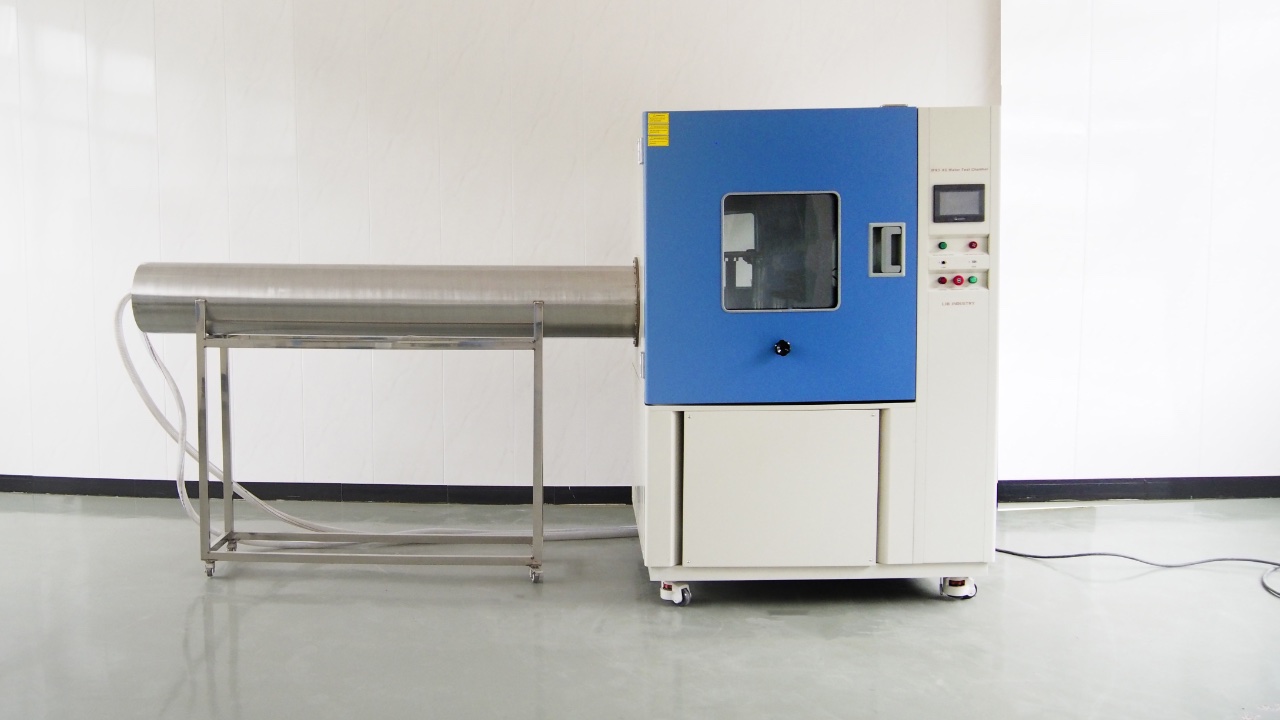

IPX5 IPX6 Water Jetting Test Chamber is applied to test the watertightness of enclosures of automotive parts, outdoor lamps and electronics parts.
The chambers built with the water tightness of sealed components such as head lamp, Power connector. Waterproof power connector in the test room can easily supply electricity to the specimens.
IPX5 and IPX6 functions on one test chamber,make testing convenient and cost-effective.
Specification
|
Model |
R56-800 |
|
Workroom
dimension (mm) |
800*800*800 D*W*H |
|
External
dimension (mm) |
950*3150*1800 D*W*H |
|
Interior Volume (L) |
510 |
|
Diameter of
Turntable (mm) |
600 |
|
Turntable
loads |
20kgs Max |
|
Turntable Rotation Speed |
0~7r/min (Adjustable) |
|
Internal
Diameter of IPX5 Nozzle |
6.3mm |
|
Internal
Diameter of IPX6 Nozzle |
12.5mm |
|
Water Flow Rate IPX5/ IPX6 |
12.5L/min ±5% / 100L/min ±5% |
|
Controller |
Programmable color LCD touch screen controller,Ethernet connection,
PC Link, USB |
|
Water Supply System |
Water tank, booster pump, Automatic water supply, Water purification system |
|
Safety Device |
Over-temperature Protection;
Over-current Protection; Water Shortage Protection; Earth
leakage Protection; Phase Sequence Protection |
|
Exterior Material |
Steel Plate with protective coating |
|
Interior Material |
|
|
Observation Window |
Double layer insulating glass with wiper |
|
Power Supply |
380V 50Hz |
|
Maximum Noise |
65 dBA |
|
Standard |
IEC 60529, ISO20653 |
