Description

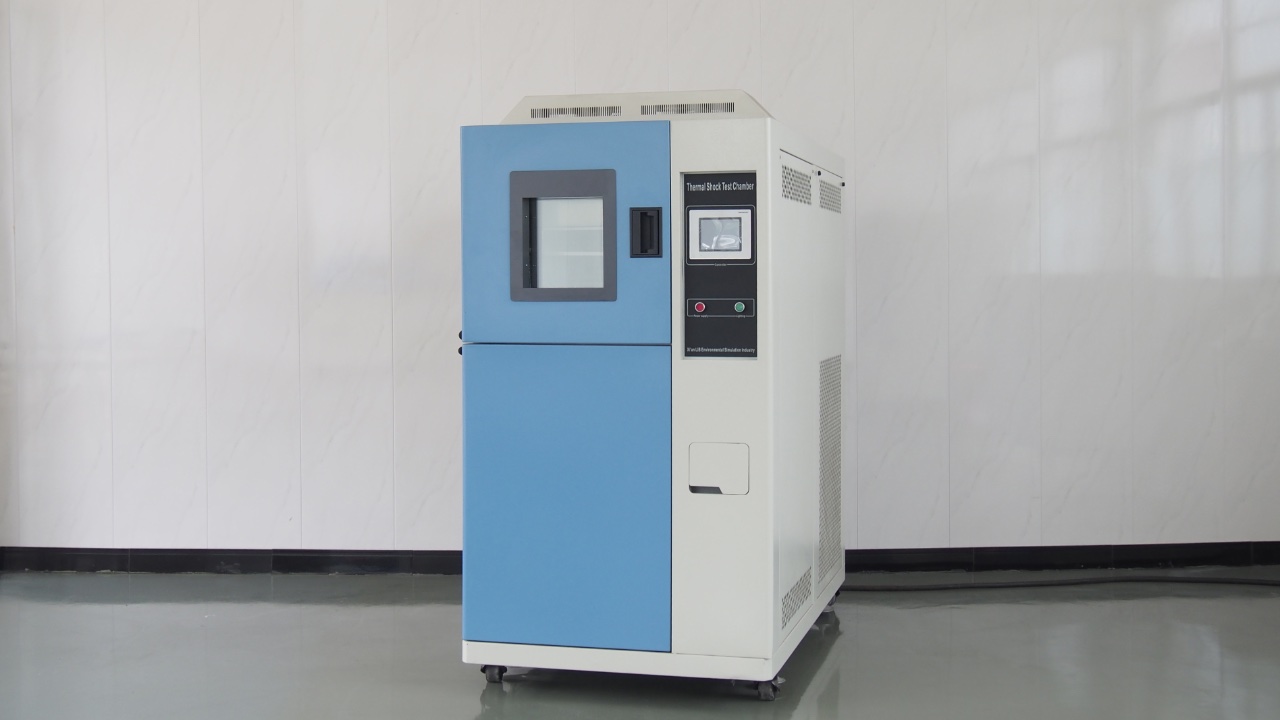

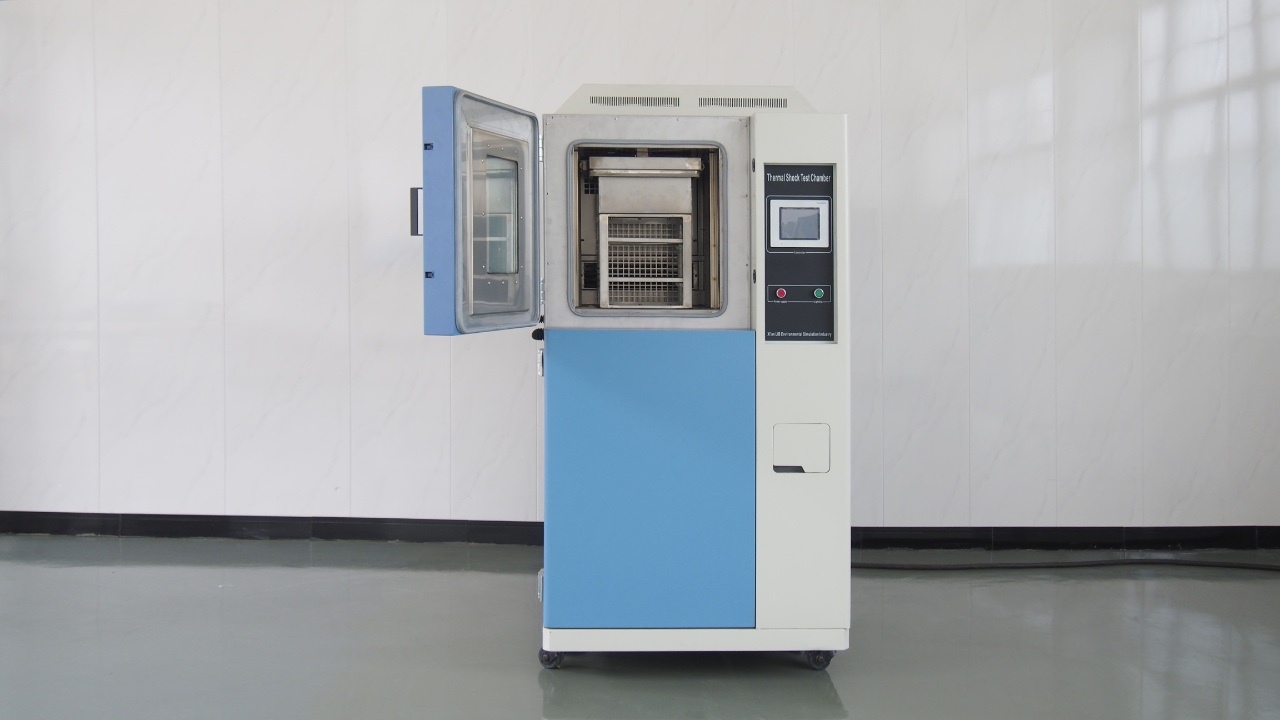

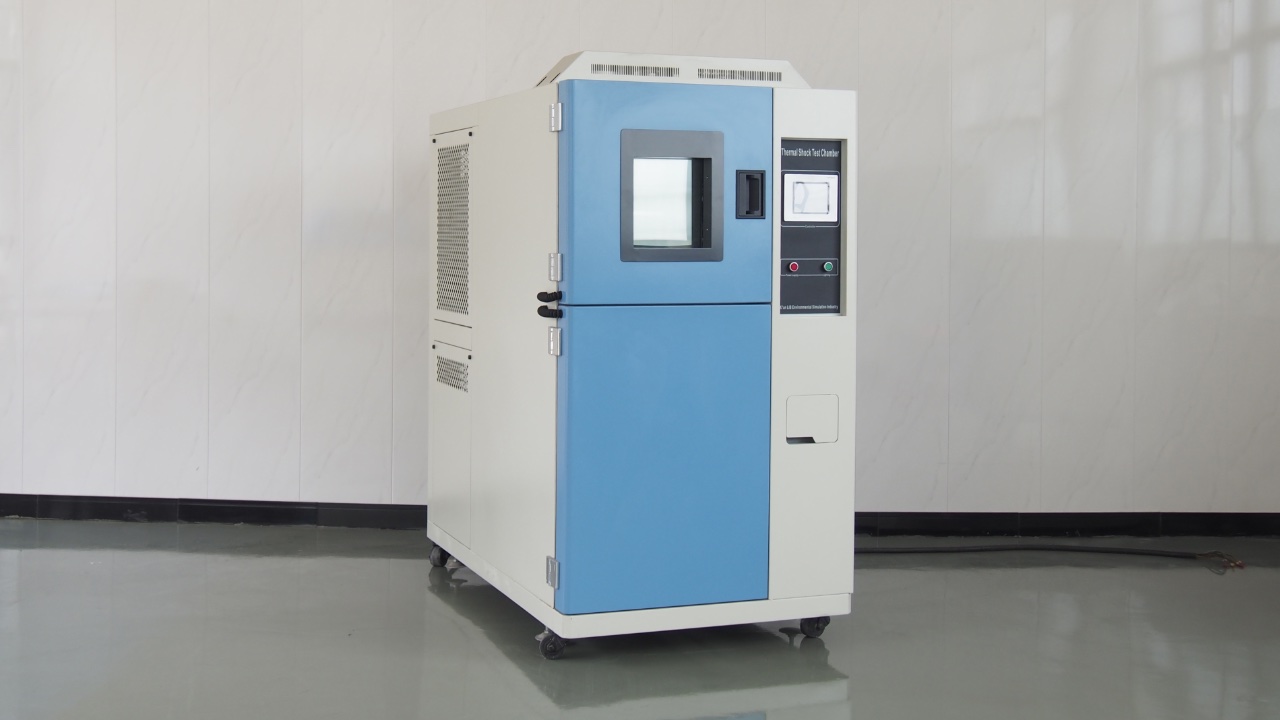

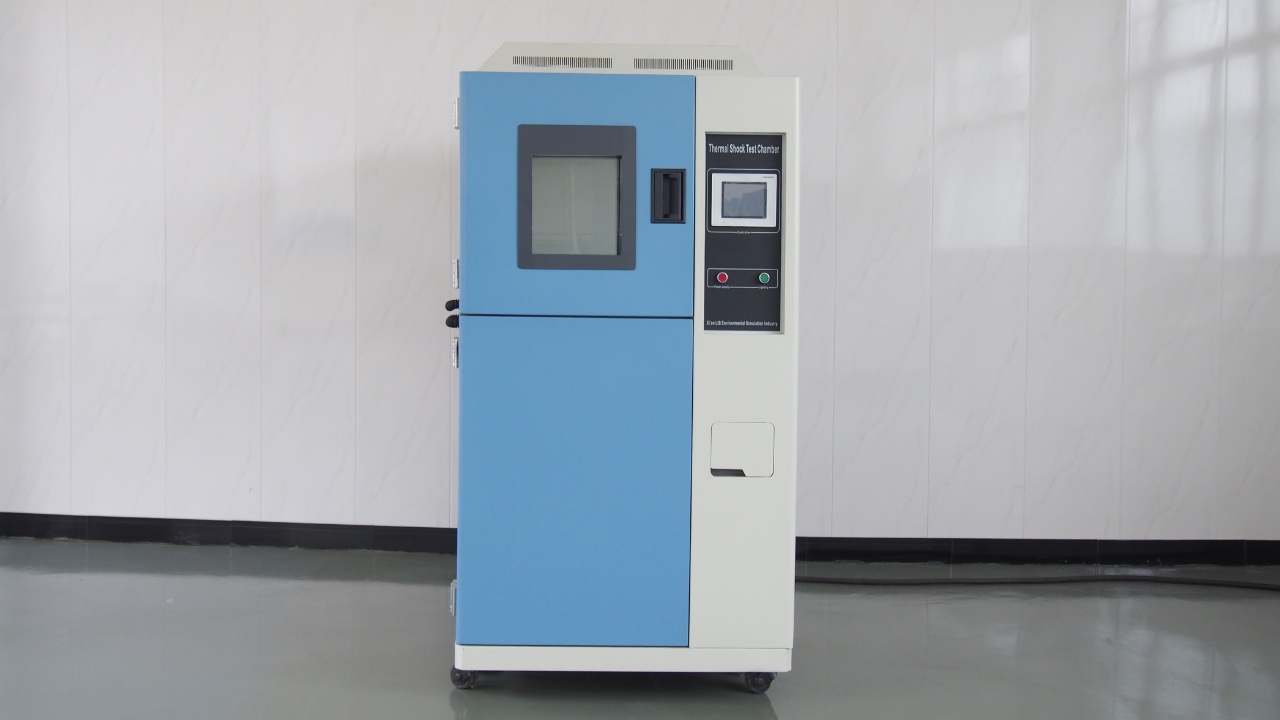

LIB 2-zone hot cold thermal shock test chamber is available in small capacity and large capacity to meet different testing requirements. The specimen automatic transferred from cold chamber to hot chamber by basket.The basket slides vertically and smoothly through rails, to make the specimen is exposed to the two chambers.
Thermal shock test chamber has upgraded to touch-screen controller with Ethernet, you are easy to operate over network.
Advantage
● Quick temperature recovery
Thermal shock chamber has preheat room and pre-cool room, which achieves temperature recovery time within 5 minutes.
● Elevator transfer system
Pneumatically lift the basket, the moving time is within 3 seconds. The basket is equipped with a lifting track to ensure the stability during moving.
● Drain water inside of workroom
Condensation will occur during high and low temperature impact testing, and the condensed water generated in the workroom will be discharged in time, so as not to freeze and affect the test.
Specification
|
Model |
TS-162 |
TS-340 |
TS-500 |
TS-1000 |
|
|
Internal Dimensions (mm) |
300*300*250 |
450*450*360 |
650*650*500 |
850*850*700 |
|
|
Overall Dimension (mm) |
1560*870*1545 |
1710*1020*1845 |
1910*1220*2265 |
2110*1420*2665 |
|
|
Interior Volume (mm) |
22L |
72L |
211L |
505L |
|
|
Loading Capacity |
20kg |
30kg |
50kg |
60kg |
|
|
Pre-heat Room |
Upper limit Temperature |
+220℃ |
|||
|
Heating Time |
Ambient ~ + 200℃, within 30 minutes |
||||
|
Pre-cool Room |
Lower limit Temperature |
-75℃ |
|||
|
Cooling time |
Ambient ~ -70℃, within 30 minutes |
||||
|
Test Room |
High Temperature Exposure Range |
Ambient +20 ~ +200°C |
|||
|
Low temperature Exposure Range |
–65 ~ -5°C |
||||
|
Temperature Fluctuation |
≤±0.5℃ |
||||
|
Temperature Deviation |
≤±3 ℃ |
||||
|
Temperature Recovery Time |
Within 5 minutes |
||||
|
Cooling System |
Mechanical compression refrigeration
system |
||||
|
Refrigerating Unit |
French TECUMSEH compressor |
||||
|
Heating Element |
Nichrome heater |
||||
|
Controller |
Programmable color LCD touch screen
controller Ethernet connection, PC Link |
||||
|
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV
A-class |
||||
|
Air Circulation |
Centrifugal wind fan |
||||
|
Safety Device |
Over-temperature protection, Over-current
protection; Refrigerant high-pressure protection; Earth leakage protection |
||||
|
Exterior Material |
Steel Plate with protective coating |
||||
|
Interior Material |
|||||
|
Thermal Insulation |
Polyurethane foam and insulation
cotton |
||||
|
Observation Window |
Interior lighting, double-layer thermo stability silicone rubber
sealing |
||||
|
Power Supply |
380V 50Hz |
||||
|
Maximum Noise |
65 dBA |
||||
