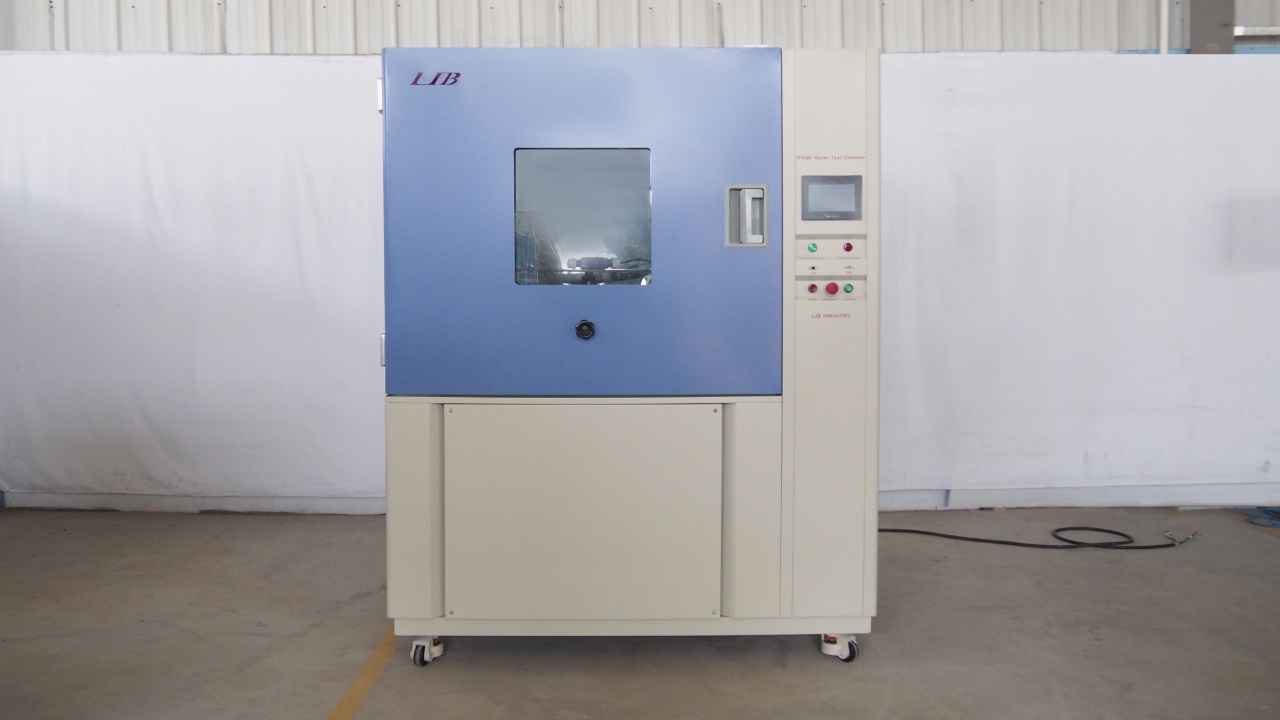

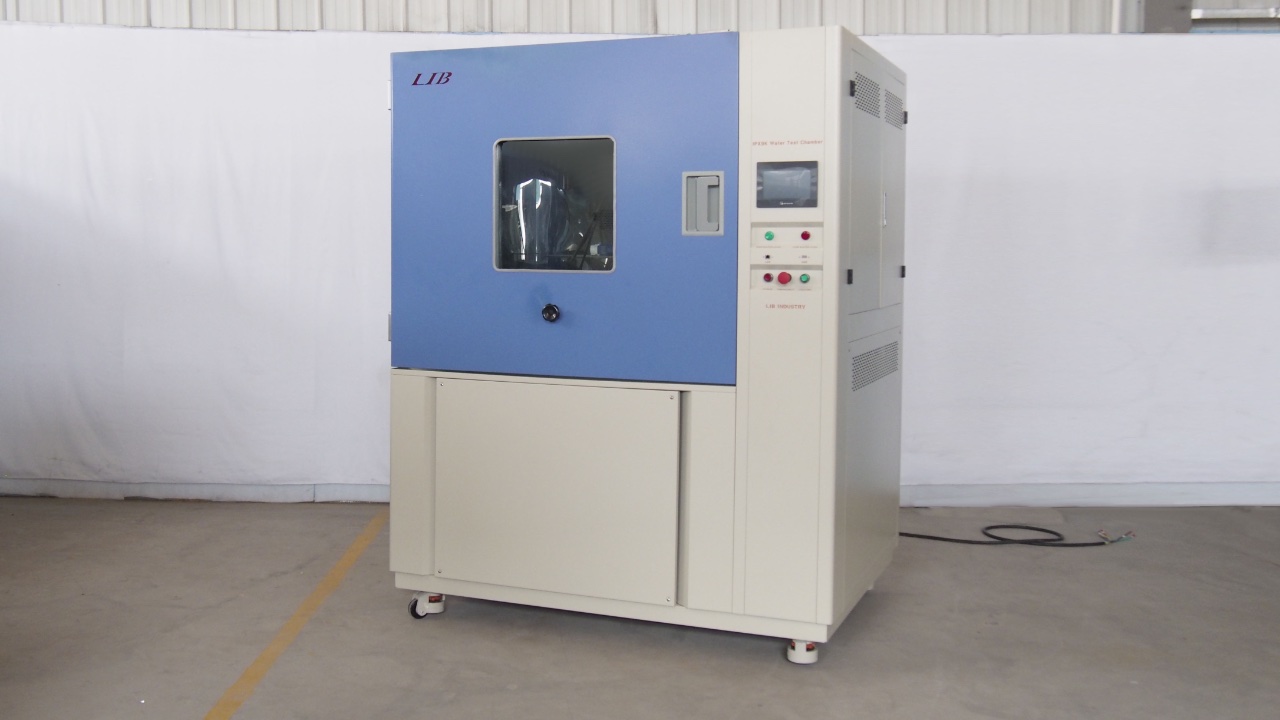

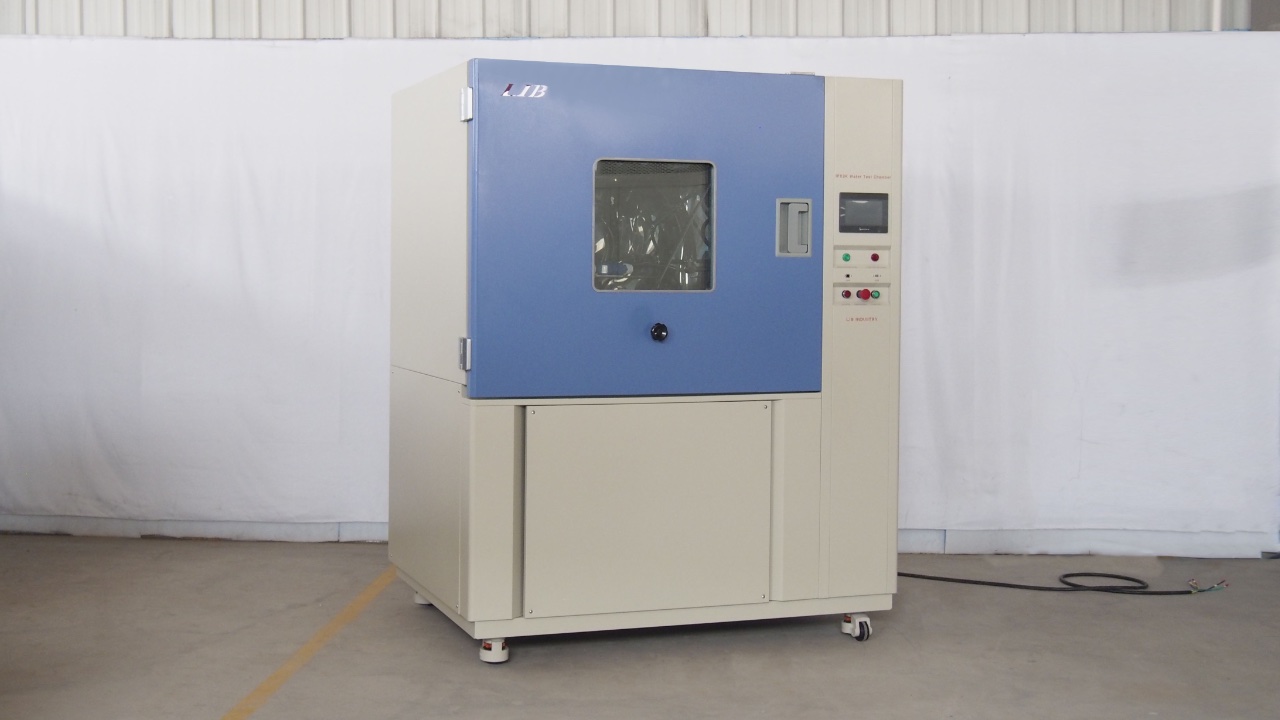

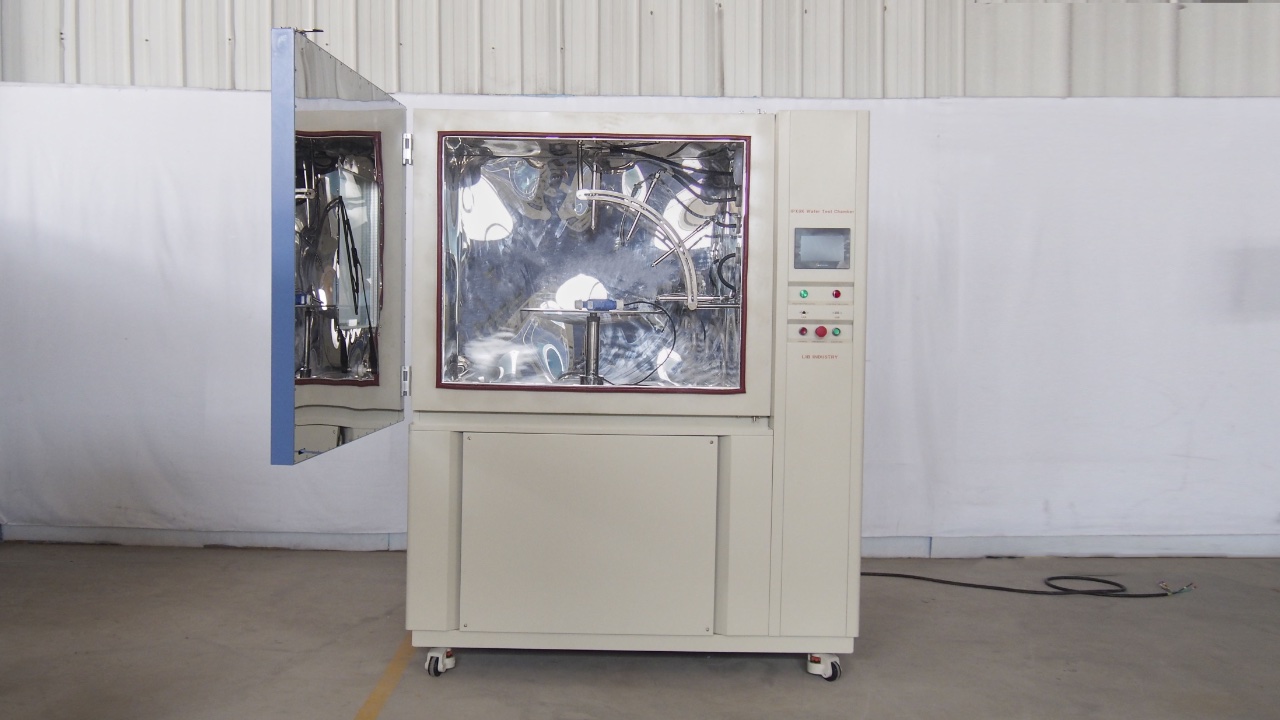

Lib IPX9K High Pressure Water Spray Test Chamber

Description

IPX9K High Pressure High Temperature Water Spray Test Chamber is widely used in the electronics, military and consumer product industries. IPX9K is the highest rating currently available for water ingress protection in accordance with IEC 60529 and ISO 20653.

Products under test is subjected to high pressure (8000 – 10000 Kpa), high temperature (+80°C) and water jets at a flow rate of 14 – 16 L/min.

IPX9K test chamber built with a water re-circulation system that reduced water use and a series of water pipes. Automatic water supply ensures adequate supply of water and automatic testing.

All models are upgrade to programmable controller and Ethernet access that provides simple operation and control.

Advantage
● Anti-clogging design
A 1mm filter is installed on the backflow port of the workroom to prevent clogging caused by impurities in the water.

● Water tank insulation
The water tank with insulation layer to meet the requirement of 88℃ water temperature in the IPX9K test.

● Fixing device for test specimen
When high-pressure water is sprayed, the test specimen on the turntable will be washed away from the turntable. We specially designed M6 screw holes with a spacing of 5cm and screws to fix the specimens.

● Build-in lighting
The built-in waterproof LED lighting inside the workroom makes it clear to observe the test specimen. The light can be turned on and off at the control panel button.

Specification

Model

R9K-1200

Internal Dimensions (mm)

1000*1200*1000

Overall Dimensions (mm)

1250*1700*2050

Interior Volume (L)

1200

Water Spray Angle

0°, 30°, 60°, 90°

Water Spray Temperature

Ambient ~ +88℃ (Adjustable)

Spray Nozzle

Four, 30 Seconds each position

Distance from Water Spraying to Specimens

10~15cm

Water Pressure

8000-10000 Kpa (Adjustable)

Water Flow Rate

14L-16L/min

Testing Platform Speed

5±1 r.p.m

Testing Platform Height

200-400 nm (Adjustable)

Testing Platform Diameters

600mm

Temperature Sensor

PTR Platinum Resistance PT100Ω/MV A-class

Heater Elements

Nichrome heater

Controller

Programmable color LCD touch screen controller,Ethernet connection, PC Link, USB

Door Lock

Electromagnetic lock

Water supply system

Storage water tank; Booster pump; Automatic water supply; Water purification system;

Safety Device

Over-temperature Protection; Over-current Protection;

Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection

Exterior Material

Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Observation Window

Double layer insulating glass with wiper

Power Supply

380V 50Hz

Maximum Noise

65 dBA

Standard

IEC 60529; ISO20653; DIN 40050-9; USCAR-2; GMW-3191
