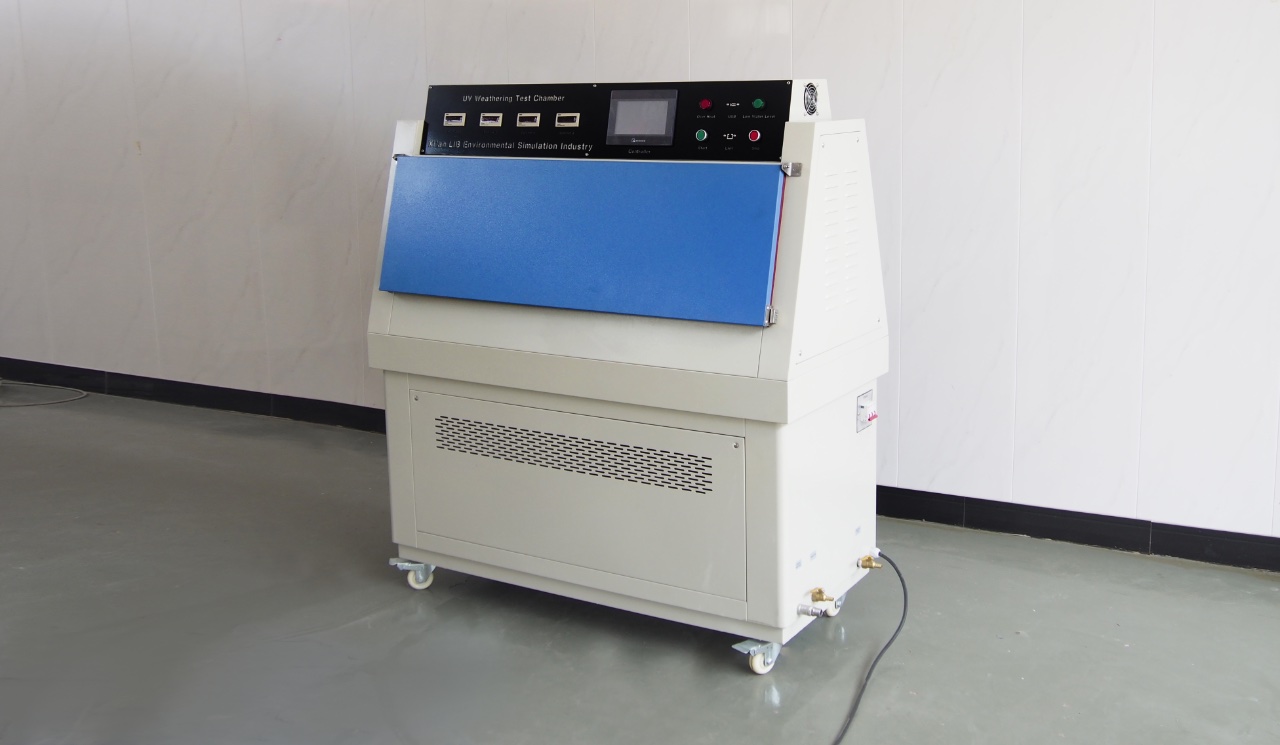

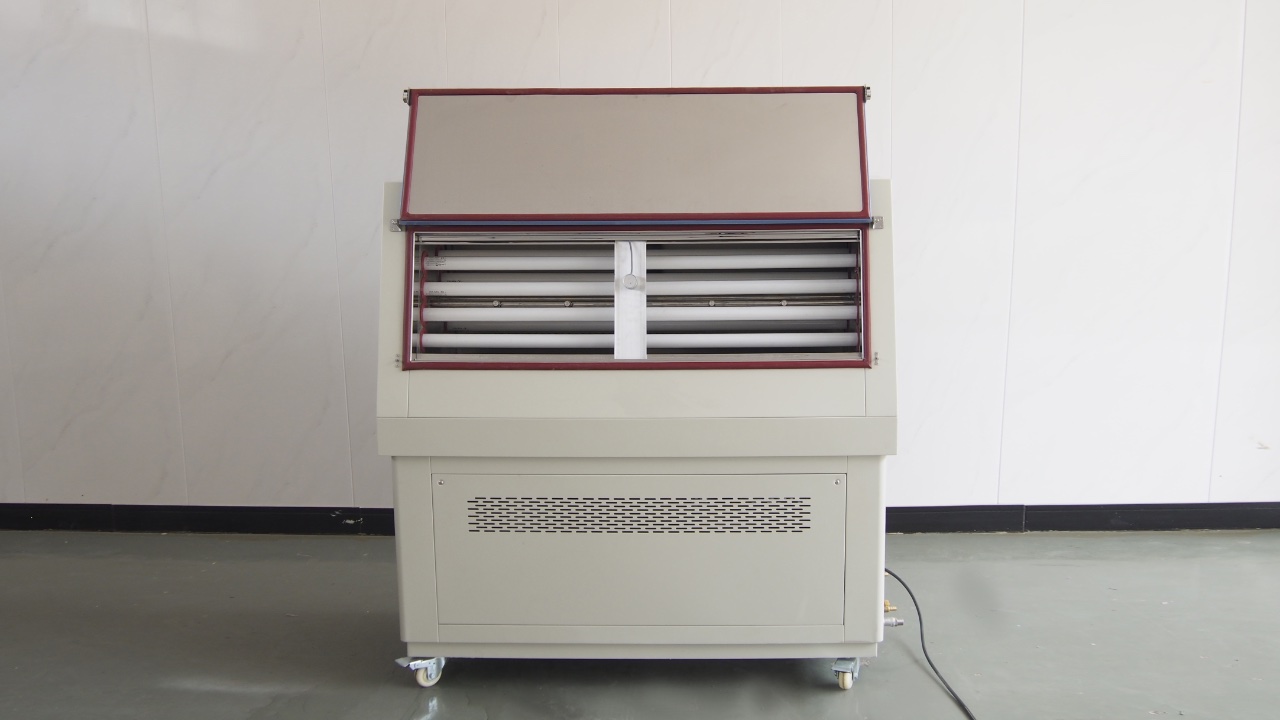

This UV test chamber is used in tests that incorporate UV light,temperature, condensing humidity, water sprays, and irradiance control. UV weathering resistance test chamber uses UVA-340, UVB-313 fluorescent UV lamps for a variety of test conditions. Accelerated weathering tests included color change, gloss loss, chalking, cracking, crazing, hazing, blistering, strength loss and oxidation and many others.
UV series weathering chambers are upgrade to programmable controller and Ethernet access that provides simple operation and control.
Advantage
● Easy to operate-touch screen control
UV series weathering chambers are upgrade to programmable controller and Ethernet access that provides simple operation and control.
● Lamp life display
The door of the UV test chamber must be closed tightly during testing. If the lamp fails to light up or decline, the user cannot find it in time. LIB has designed a lamp current display meter to be embedded in the control panel, and the lamp current will be displayed on the meter. If the lamp is faulty, the current will prompt the user to replace the lamp in time.
Specification
|
Model |
UV-SI-260 |
|
Internal Dimension (mm) |
450*1170*500 |
|
Overall Dimension (mm) |
610*1330*1470 |
|
Specimen Holder Size(mm) |
75*150 |
|
Specimen Capacity |
56 Pieces |
|
Irradiation Source |
Fluorescent UV
lamps (8) - 40 W |
|
Temperature Range |
Ambient ～ 90 ℃ ±2℃ |
|
Black Panel Temperature (BPT) |
35 ～ 80 ℃ |
|
Humidity Range |
≥95% RH |
|
Bandwidth |
290 ~ 400nm |
|
Irradiance Control |
0.3~20 W/㎡ |
|
Water Spray Cycle |
1~9999H59M (Adjustable) |
|
Distance of Specimen and lamp |
50mm |
|
Heating Element |
Nichrome heater |
|
Controller |
Programmable color LCD touch screen
controller，Ethernet connection, PC Link，USB |
|
Water Supply System |
Automatic water supply,Water
purification system |
|
Safety Device |
Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth
leakage Protection; Phase Sequence Protection |
|
Exterior Material |
Steel Plate with protective coating |
|
Interior Material |
|
|
Thermal Insulation |
Polyurethane foam and insulation cotton |
|
Power Supply |
380V 50Hz |
|
Maximum Noise |
65 dBA |
