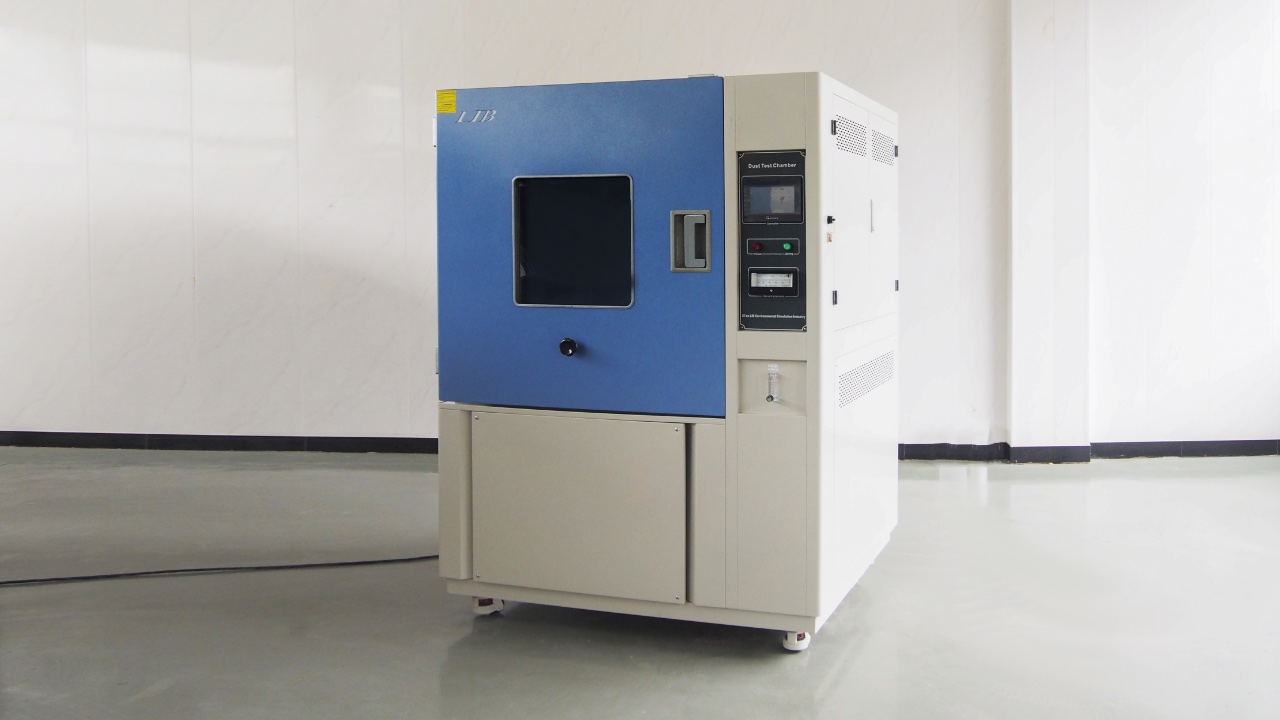

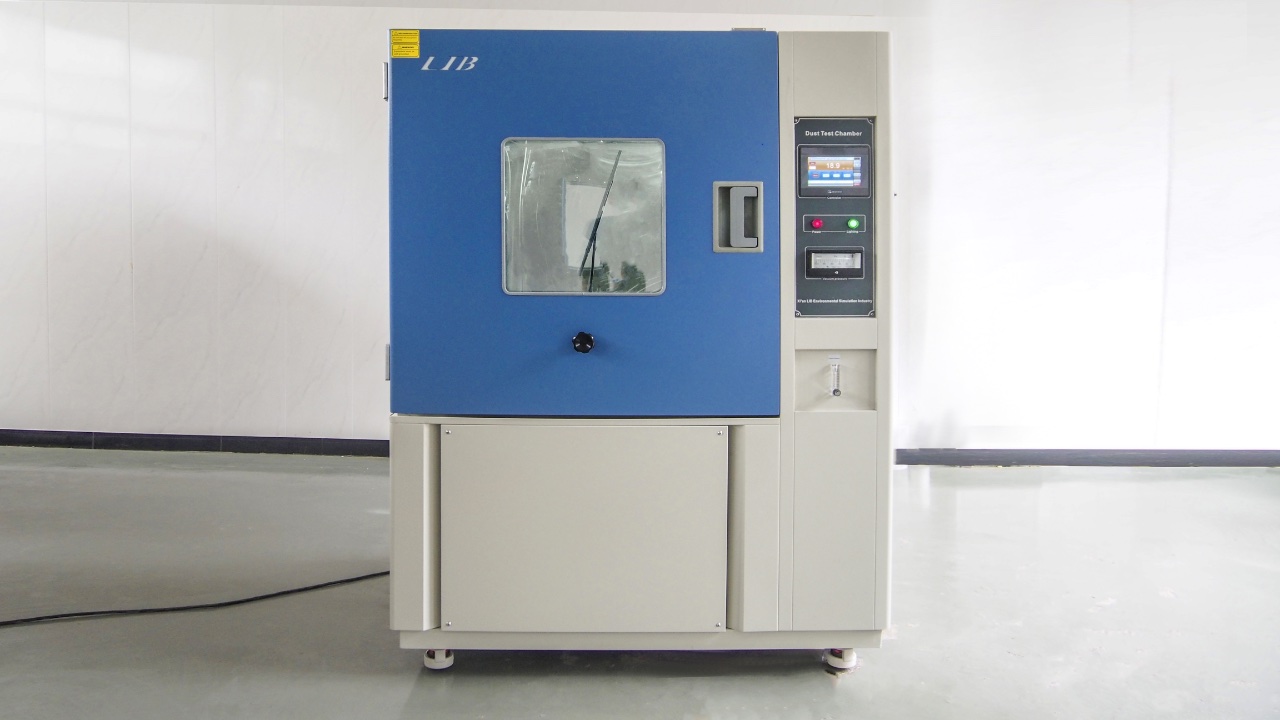

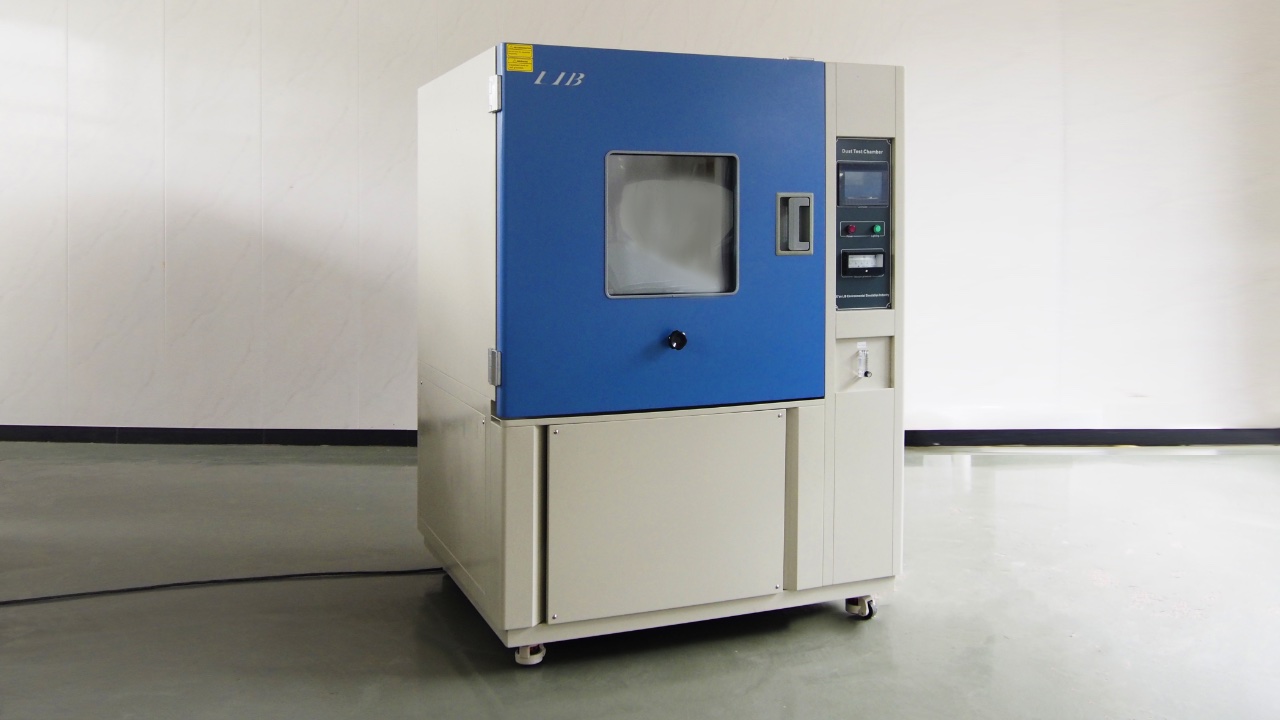

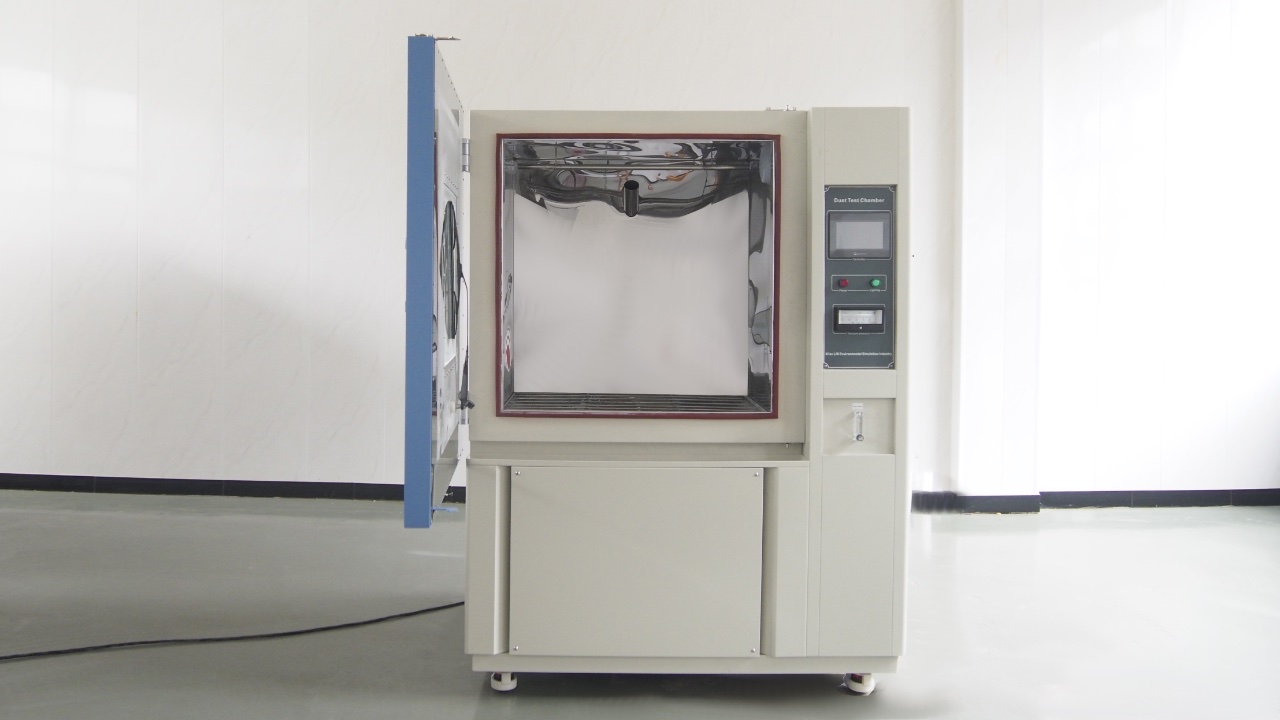

Lib Sand and Dust Test Chamber
Description
IP5X IP6X Sand and Dust IP Test Chambers are capacity of 800 liters ,1000 liters, 1500 liters and 2000 liters. Considering that some specimens are smaller and less, so we designed and produced small dust chambers and larger dust ingress test chambers.

Sand and dust test chambers are made for the simulation of dust and sand conditions. These dust test chambers are used to test the exposure of test the exposure of automotive and electronic components under extreme environmental conditions in order to validate product seal.Dust ingress test methods included IEC60529, ISO20653 and many other standard.

Advantage
● Sand dust recycling system
The talcum powder will fall back to the bottom of the dust chamber after the test. LIB designed a small door that can be opened and equipped with tools for taking talcum powder and filtering, so that customers can recycle dust and re-estimate the weight of talcum powder.

● Prevent sand and dust from clumping
In order to prevent the talcum powder from being damp and agglomerated, LIB has specially designed a heating system, the highest temperature can reach 55℃, which effectively reduces the humidity of the workroom to below 30%RH.

● Build -in power interface
The workroom is equipped with a single-phase 16A internal power interface to power up the test specimen. The power-on time and cycle can be controlled by the controller.

Specification

Model

DI-800

DI-1000

Internal Dimension (mm)

800*1000*1000

1000*1000*1000

Overall Dimension (mm)

1040*1450*1960

1330*1450*1960

Interior Volume (L)

800

1000

Temperature Range

Ambient ~ +50℃

Humidity Range

< 30% RH

Normal Wire Diameter

50um

Nominal Width of a Gap Between wires

75um

Fight Time

0 ~ 99H59M

Blowing Time

0 ~ 99H59M

Specimen Power Outlet

Dust-proof socket 16A

Heating Element

Nichrome heater

Vacuum System

Equipped with a pressure gauge, air filter, pressure regulator, connecting tube

Controller

Programmable color LCD touch screen controllerEthernet connection, PC Link, USB

Door Lock

Electromagnetic lock

Safety Device

Over-temperature Protection; Over-current Protection;

Earth Leakage ProtectionPhase Sequence Protection

Exterior Material

A3 Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing

Standard Configuration

Sample shelf, dust wiper, talcum powder(5kgs)

Power Supply

380V 50Hz

Maximum Noise

65 dBA
